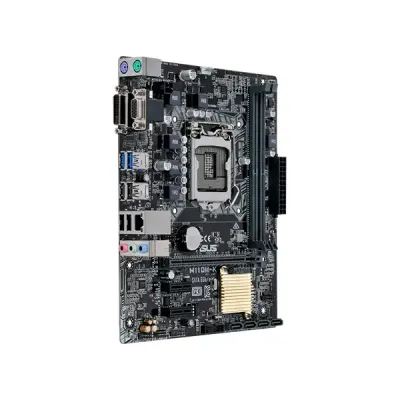

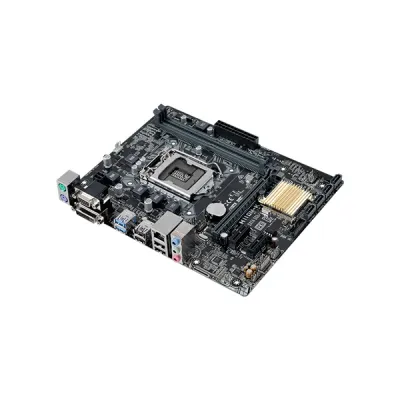

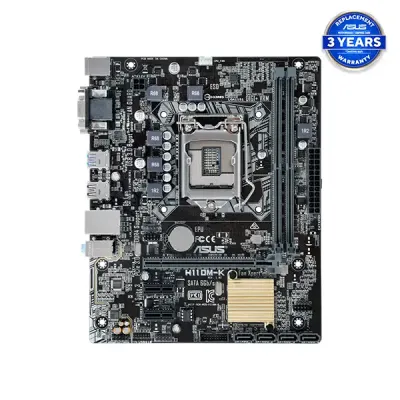

ASUS H110M-K Intel 1151 micro-ATX Motherboard
ASUS H110M-K Intel 1151 micro-ATX Motherboard
ASUS H110M-K Intel 1151 micro-ATX Motherboard
ASUS H110M-K Intel 1151 micro-ATX Motherboard

ASUS H110M-K Intel 1151 micro-ATX Motherboard

Key Features of H110M-K:
Chipset: Intel H110 Chipset for 7th/6th Generation Core i7/ i5/ i3/Pentium/Celeron Processors
Socket: Intel Socket 1151
Storage Supports: 4 x SATA 6Gb/s port(s), Gray
Memory: 2 x DIMM, Max. 32GB, DDR4 2400/2133 MHz Non-ECC, Un-buffered Memory
Features: 5X Protection II, DDR4 Memory Compatibility, Easy PC DIY, LANGuard
ASUS H110M-K Intel 1151 micro-ATX Motherboard
Based on 0 reviews. - Write a review
৳10,700.00
Add to Cart
Specification Description Reviews
Specification:
Key Features
attr - Key Feature 1 > Chipset: Intel H110 Chipset for 7th/6th Generation Core i7/ i5/ i3/Pentium/Celeron Processors
attr -Key Feature 2 > Socket: Intel Socket 1151
attr -Key Feature 3 > Storage Supports: 4 x SATA 6Gb/s port(s), Gray
attr -Key Feature 4 > Memory: 2 x DIMM, Max. 32GB, DDR4 2400/2133 MHz Non-ECC, Un-buffered Memory
attr -Key Feature 5 > Features: 5X Protection II, DDR4 Memory Compatibility, Easy PC DIY, LANGuard
Motherboard
Model H110M-K
CPU Refer to www.asus.com for CPU support list.

Intel Socket 1151for 7th/6th Generation Core i7/Core i5/Core i3/Pentium/Celeron Processors
Supports Intel 14nm CPU, Supports Intel Turbo Boost Technology 2.0
*The Intel Turbo Boost Technology 2.0 support depends on the CPU types.
Chipset Intel H110
Memory * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
* Due to Intel chipset limitations, DDR4 2400MHz memory frequency is only supported by 7th Generation Intel processors. Higher memory modules will run at the maximum transfer rate of DDR4 2400MHz.

** Due to Intel chipset limitation, DDR4 2133MHz and higher memory modules on 6th Generation Intel processors will run at the maximum transfer rate of DDR4 2133MHz.
2 x DIMM, Max. 32GB, DDR4 2400/2133 MHz Non-ECC, Un-buffered Memory

*Dual Channel Memory Architecture, Supports Intel Extreme Memory Profile (XMP) *Hyper DIMM support is subject to the physical characteristics of individual CPUs.
* The maximum memory frequency supported varies by processor.
Graphics Multi-VGA output support: DVI-D/RGB ports, Integrated Graphics Processor - Intel HD Graphics support, Supports DVI-D with maximum resolution.
Resolution: 1920 x 1200 @ 60Hz. Supports RGB with a maximum resolution of 1920 x 1200 @ 60 Hz,
Maximum shared memory of 1024 MB (for iGPU exclusively), supports Intel InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider
Expansion Slots 1 x PCIe 3.0/2.0 x16 (x16 mode, gray),2 x PCIe 2.0 x1
LAN Realtek RTL8111H, 1 x Gigabit LAN Controller(s)
Storage Intel H110 chipset : 4 x SATA 6Gb/s port(s), gray
Internal I/O Ports 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) (19-pin)
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
1 x COM port(s) connector(s)
4 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4-pin)
1 x Chassis Fan connector(s) (1 x 4-pin)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x Clear CMOS jumper(s)
1 x 14-1 pin TPM connector
USB Intel H110 chipset: 6 x USB 2.0/1.1 port(s) (4 at back panel, black, Type-A,
2 at mid-board),4 x USB 3.1 Gen 1 port(s) (2 at back panel, blue, Type-A, 2 at mid-board)
Audio Audio Feature:
Realtek ALC887/8978-Channel High Definition Audio CODEC

*1,- Premium Japanese-made audio capacitors,
Supports : Front Panel Jack-retasking, up to 24-Bit/192kHz playback,- LED-illuminated design,- Audio Shielding,- Dedicated audio PCB layers

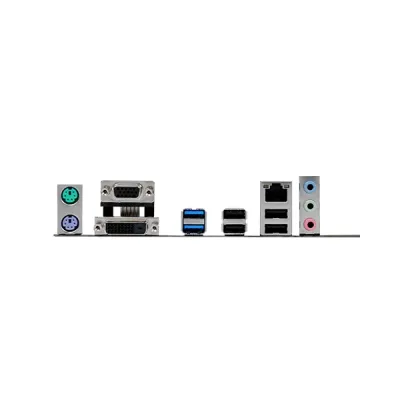

Back Panel I/O Ports 2 x USB 3.2 Gen 1 (blue) Type-A
1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x DVI-D
1 x D-Sub
1 x LAN (RJ45) port(s)
4 x USB 2.0
3 x Audio jack(s)
Special Features - ASUS DIGI+ VRM - Premium components provide better power efficiency,- USB 3.0 Boost,- Mobo Connect,- Push Notice,Media Streamer,- Disk Unlocker,ASUS 5X Protection II :
- ASUS LANGuard - 2.5X higher surge tolerance,
- ASUS Overvoltage Protection - World-class circuit-protecting power design,
- ASUS DRAM Overcurrent Protection - Prevents damage from short circuits
- ASUS Stainless-Steel Back I/O - 3X corrosion-resistance for greater durability,- Anti-Surge, ASUS EPU:- EPU
ASUS Exclusive Features:- AI Suite 3,- Ai Charger,- PC Cleaner, ASUS Quiet Thermal
Solution:- Stylish Fanless Design Heat-sink solution,- ASUS Fan Xpert
ASUS EZ DIY:- ASUS CrashFree BIOS 3,- ASUS EZ Flash 3,- ASUS UEFI BIOS EZ Mode
ASUS Q-Design:,- ASUS Q-Slot,- ASUS Q-DIMM
BIOS 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 5.0, Multi-language BIOS
ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites
Quick Note, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information
Manageability WfM 2.0, DMI 3.0, WOL by PME, PXE
Accessories 2x SATA 6Gb/s cable(s)
User´s manual
I/O Shield
2x SATA 6Gb/s cable(s)
1x Supporting DVD
Operating System Windows 7 *2,Windows 8.1,Windows 10
Form Factor 8.9 inch x 7.2 inch ( 22.6 cm x 18.3 cm ),mATX Form Factor
Warranty 3 Years Replacement Warranty *(Terms and Conditions Applied)
Description:

ASUS H110M-K Intel 1151 micro-ATX Motherboard

ASUS H110M-K Intel 1151 micro-ATX motherboard is a good choice to build a stable as well as performance-seeking PC. It is a 6th-generation Intel Core processor supported by Intel H110 chipset and LGA 1151 socket. It offers DDR4 memory support up to 2133MHz, which can be useful for users having faster data transfer rates, increased capacity, and lower power consumption than DDR3. This motherboard features 5X Protection II, delivering overall protection with overvoltage protection, overcurrent protection, surge protection, and corrosion-resistant stainless-steel back I/O. ASUS LANGuard adds further LAN port resilience with signal protection and high-quality components for better network connectivity and greater surge tolerance.

The H110M-K delivers pure sound with gaming-class audio. It has LED-lit audio channels, audio shielding, isolated left and right audio paths, and high-quality Japanese capacitors to reduce noise and ensure maximum clarity. For easy DIY, the motherboard includes features like Q-Slot and Q-DIMM that make the installation and removal of graphics cards and memory easy. Fan Xpert offers CPU and case fan control to keep your system quiet and cooled.

The accessible UEFI BIOS has EZ and Advanced modes. The system setup and update are quick and simple with tools like EZ Flash 3, SATA information, and Q-Fan control. Front panel USB 3.0 ports accelerate file transfers and simplify them. ASUS AI Suite 3 centralizes all system settings in one convenient app for adjusting fan speeds, voltages, and power consumption. Media Streamer, PC Cleaner, and Push Notice for PC management convenience are also available on the board. With great performance, core features, and security, the ASUS H110M-K is a great choice for general computing, home office, or cost-effective gaming systems.

Buy ASUS H110M-K Intel 1151 micro-ATX Motherboard in Bangladesh

You can buy your desired ASUS H110M-K Intel 1151 micro-ATX Motherboard at Global Brand PLC. We are the authorized distributor of Asus in Bangladesh. You buy online and enjoy free home delivery. You can also visit any of our branches near you.
