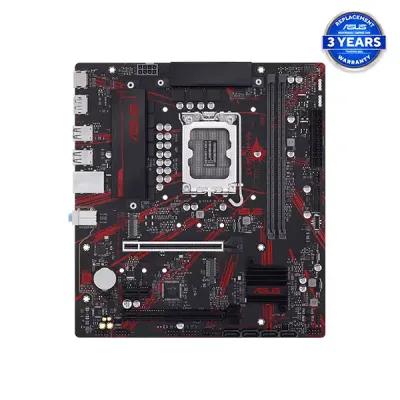

ASUS EX-B860M-V5 Intel LGA1851 mATX Motherboard
ASUS EX-B860M-V5 Intel LGA1851 mATX Motherboard
ASUS EX-B860M-V5 Intel LGA1851 mATX Motherboard

ASUS EX-B860M-V5 Intel LGA1851 mATX Motherboard

Key Features of EX-B860M-V5:
Chipset: Intel B860 Chipset for Core Ultra Processors (Series 2)
Socket: Intel Socket LGA1851
Memory: 2 x DIMM slots, max. 128GB, DDR5
Storage: Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
Features: ASUS 5X PROTECTION III, PCIe 5.0 s​​​​lots, ASUS EZ DIY
ASUS EX-B860M-V5 Intel LGA1851 mATX Motherboard
Based on 0 reviews. - Write a review
৳21,100.00
Add to Cart
Specification Description Reviews
Specification:
Key Features
attr - Key Feature 1 > Chipset: Intel B860 Chipset for Core Ultra Processors (Series 2)
attr -Key Feature 2 > Socket: Intel Socket LGA1851
attr -Key Feature 3 > Memory: 2 x DIMM slots, max. 128GB, DDR5
attr -Key Feature 4 > Storage: Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
attr -Key Feature 5 > Features: ASUS 5X PROTECTION III, PCIe 5.0 s​​​​lots, ASUS EZ DIY
Motherboard
Model EX-B860M-V5
CPU Support Intel Core Ultra Processors (Series 2) , LGA1851*
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**

* Refer to https://www.asus.com/support/download-center/ for CPU support list.
** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset Intel B860 Chipset
Memory 2 x DIMM slots, max. 128GB, DDR5
Supports up to 8800+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*
Dual channel memory architecture
Supports Intel Extreme Memory Profile (XMP) memory module
ASUS Enhanced Memory Profile III(AEMPIII)

* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market.
** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics 1 x DisplayPort**
1 x HDMI™ port***

* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI 2.1.
**** VGA resolution support depends on processors' or graphic cards' resolution.
Expansion Slots Intel Core Ultra Processors (Series 2) 1 x PCIe 4.0 x16 slot Intel B860 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
1 x PCIe 4.0 x1 slot
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.
Storage Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*

Intel Core Ultra Processors (Series 2)
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)

Intel B860 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
* Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.
Ethernet 1 x Realtek 2.5Gb Ethernet
ASUS LANGuard
USB Rear USB (Total 6 ports)
2 x USB 5Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)

Front USB (Total 7 ports)
1 x USB 5Gbps connector (supports USB Type-C)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports

* USB Type-C power delivery output: max. 5V/3A
** USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback

Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers

* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Back Panel I/O Ports 2 x USB 5Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x HDMI port
1 x Realtek 2.5Gb Ethernet
3 x Audio jacks
Internal I/O Connectors Fan and Cooling Related
1 x 4-pin CPU Fan header
2 x 4-pin Chassis Fan headers

Power Related
1 x 24-pin Main Power connector
1 x 8-pin +12V CPU Power connector

Storage Related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports

USB
1 x USB 5Gbps connector (supports USB Type-C)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports

Miscellaneous
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x 10-1 pin Front Panel System header
Special Features ASUS 5X PROTECTION III
- DIGI+ VRM
- LANGuard
- Overvoltage protection
- SafeSlot Core+
- Stainless-steel back I/O

ASUS Q-Design
- Q-Dashboard
- Q-DIMM
- Q-LED Core
- Q-Slot

ASUS Thermal Solution
- VRM heatsink design

ASUS EZ DIY
- ProCool

Non-stop Action
- Lightning Boot

Non-stop Challenger
- ASUS iCafe labs certified

Non-stop Durability
- Luminous anti-moisture coating
- USBGuard
BIOS 256 (128+128) Mb Flash ROM, UEFI AMI BIOS
Manageability WOL by PME, PXE
Accessories Cables
2 x SATA 6Gb/s cables

Miscellaneous
1 x I/O shield
1 x M.2 anchor package

Documentation
1 x Quick start guide
Operating System Windows 11 (22H2 & later), Windows 10 64-bit (21H2 & later)
Form Factor micro-ATX Form Factor
9.6 inch x 8.75 inch ( 24.4 cm x 22.2 cm )
Warranty 3 Years Replacement Warranty *(Terms and Conditions Applied)
Description:

ASUS EX-B860M-V5 Intel LGA1851 mATX Motherboard

ASUS EX-B860M-V5 Intel LGA1851 mATX Motherboard is built to deliver high-speed and stable performance. With Intel B860 chipset, the motherboard supports Intel Core Ultra processors (Series 2) and has PCIe 4.0, DDR5 memory, and two M.2 slots for storage at high speed. With two PCIe 4.0 x16 slots, the motherboard offers smooth graphics performance with no lag. The dual M.2 ports support up to 128 Gbps data transfer, accelerating boot and app launch. Realtek 2.5Gb Ethernet provides stable and fast networking, reduces CPU overhead, and preserves high speeds for data transfers.

ASUS Expedition motherboards are built to endure, featuring an illuminated anti-moisture coating that repels corrosion and humidity. The SafeSlot Core+ design secures the PCIe slot, which keeps graphics cards securely in place. USBGuard technology offers 120% more overvoltage protection, supplying safe and stable power to connected devices. For uninterrupted power supply, the 8-pin ProCool connector delivers 12 volts directly to the processor to reduce heat and improve stability. The 6+1+1+1 phase digital power architecture and VRM heatsinks provide stable power for speedy computing. AEMP III firmware optimization ensures DDR5 memory runs at optimal speeds of up to 7600 MT/s.

The motherboard comes with ASUS Q-LED Core, which displays light patterns during startup to help with troubleshooting. Lightning Boot speeds up BIOS booting, and it is ideal for cloud PCs and diskless systems. ASUS iCafé LAB has tested this motherboard for 144 hours under heavy loads to ensure reliability for gaming, business, and configure-to-order computers. Stability and reliability are the focus, and ASUS EX-B860M-V5 is a safe bet for long-term use.

Buy ASUS EX-B860M-V5 Intel LGA1851 mATX Motherboard in Bangladesh

You can buy your desired ASUS EX-B860M-V5 Intel LGA1851 mATX Motherboard at Global Brand PLC. We are the authorized distributor of Asus in Bangladesh. You buy online and enjoy free home delivery. You can also visit any of our branches near you.
