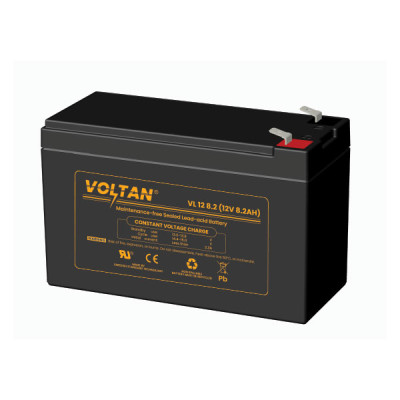

Voltan 12V 8.2AH UPS Battery

Key Features of Voltan 12V 8.2AH:

Brand: Voltan
Capacity: 8.2AH
Nominal Voltage: 12V
Internal Resistance: Approx. 28mΩ
Warranty: 6 Month Warranty
CALL FOR DETAILS: 01958510719, 01969633055

Based on 0 reviews. - Write a review

৳1,600.00

Add to Cart

Specification:

Key Features
attr - Key Feature 1 >	Brand: Voltan
attr -Key Feature 2 >	Capacity: 8.2AH
attr -Key Feature 3 >	Nominal Voltage: 12V
attr -Key Feature 4 >	Internal Resistance: Approx. 28mΩ
attr -Key Feature 5 >	Warranty: 6 Month Warranty
Call Info >	CALL FOR DETAILS: 01958510719, 01969633055
Voltan Battery
Nominal Voltage	12 V
Capacity (25oC)	20HR(10.5V): 8.2Ah 10HR(10.5V): 6.6Ah 1HR(9.60V): 4.58Ah
Dimension	Length: 152±1.5mm (5.98inch) Width: 67±1mm (2.64inch) Height: 99±1mm (3.90inch) Total Height: 105±1mm (4.13inch)
Approx. Weight	2.10kg (4.63lbs)±5%
Terminal type	T1
Internal resistance (Fully charged, 25oC)	Approx. 28mΩ
Capacity affected by Temperature (20HR)	40oC: 102% 25oC: 100% 0oC: 85% -15oC: 65%
Self-Discharge (25oC)	3 month: Remaining Capacity: 91% 6 month: Remaining Capacity: 82% 12 month: Remaining Capacity: 65%
Nominal Operating Temperature	25oC±3oC(77oF±5oF)
Operating Temperature Range	Discharge: -15oC~50oC(5oF~122oF) Charge: -10oC~50oC(14oF~122oF) Storage: -20oC~50oC(-4oF~122oF)
Float Charging Voltage (25oC)	13.60 to 13.80V Temperature compensation: -18mV/oC
Cyclic Charging Voltage (25oC)	14.50 to 14.90VTemperature compensation:-30mV/oC
Maximum Charging Current	2.1A
Terminal Material	Copper
Maximum Discharge Current	105A(5 sec.)
Designed Floating Life (25oC)	5 years+
Warranty	6 Month
