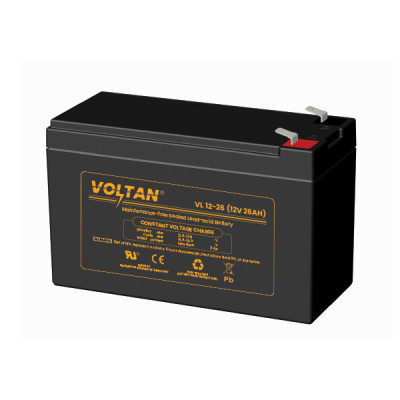

Voltan 12V 26AH UPS Battery

Key Features of 12V 26AH:

Brand: Voltan
Capacity: 26Ah
Nominal Voltage: 12V
Internal Resistance: Approx. 12mΩ
Warranty: 6 Month Warranty
CALL FOR DETAILS: 01958510719, 01969633055

Based on 0 reviews. - Write a review

৳6,300.00

Add to Cart

Specification:

Key Features
attr - Key Feature 1 >	Brand: Voltan
attr -Key Feature 2 >	Capacity: 26Ah
attr -Key Feature 3 >	Nominal Voltage: 12V
attr -Key Feature 4 >	Internal Resistance: Approx. 12mΩ
attr -Key Feature 5 >	Warranty: 6 Month Warranty
Call Info >	CALL FOR DETAILS: 01958510719, 01969633055
Voltan Battery
Nominal Voltage	12 V
Capacity (25oC)	20HR(10.5V): 26Ah 10HR(10.5V): 24.2Ah 1HR(9.60V): 16.3Ah
Dimension	Length: 180±2mm (7.10inch) Width: 168±2mm (6.61inch) Height: 130±2mm (5.11inch) Total Height: 130±2mm (5.11inch)
Approx. Weight	7.30kg (16.1lbs)±4%
Terminal type	T3/T8
Internal resistance (Fully charged, 25oC)	Approx. 12mΩ
Capacity affected by Temperature (20HR)	40oC: 102% 25oC: 100% 0oC: 85% -15oC: 65%
Self-Discharge (25oC)	3-month: Remaining Capacity: 91% 6-month: Remaining Capacity: 82% 12-month: Remaining Capacity: 65%
Nominal Operating Temperature	25oC±3oC(77oF±5oF)
Operating Temperature Range	Discharge: -15oC~50oC(5oF~122oF) Charge: -10oC~50oC(14oF~122oF) Storage: -20oC~50oC(-4oF~122oF)
Float Charging Voltage (25oC)	13.60 to 13.80V Temperature compensation: -18mV/oC
Cyclic Charging Voltage (25oC)	14.50 to 14.90V Temperature compensation: -30mV/oC
Maximum Charging Current	7.8A
Terminal Material	Copper
Maximum Discharge Current	390A(5 sec.)
Designed Floating Life (25oC)	5 years+
Warranty	6 Month Warranty
