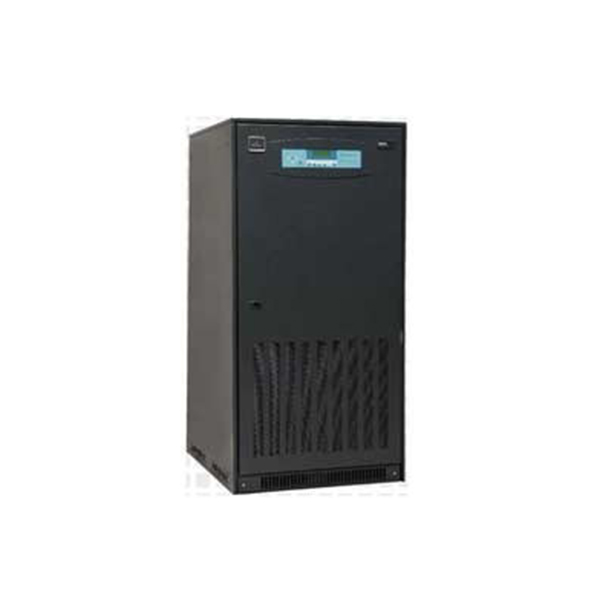

Vertiv Hipulse U 80KVA Online UPS
Out Of Stock
Vertiv Hipulse U 80KVA Online UPS

Vertiv Hipulse U 80KVA Online UPS

Key Features:

Key Features
attr - Key Feature 1 > Model: Hipulse U
attr -Key Feature 2 > Nominal Rating: 80 KVA/72KW
attr -Key Feature 3 > Rectifier type: 6p
attr -Key Feature 4 > Battery Brand: LEOCH/Emerson approved Battery
attr -Key Feature 5 > Warranty: 1 Brand Warranty
Laptop
Warranty 1 Brand Warranty
UPS
Basic Information Brand: VERTIV
Model: Hipulse U
Country of origin: USA
Country of manufacture: India
Nominal Rating: 80 KVA/72KW
Rectifier type: 6p
Frequency Voltage stability: ± 1% (Steady state), ± 5% (Transient state)
Transient recovery time: 20 milliseconds to 1%
Frequncy stability: ± 0.1% (synchronized with internal clock), ±6% (max) (syncchronized with bypass)
Overload capability: 101-110%,60minutes;125-150%,1 minute
Voltage distortion with linear load: <1%
Voltage distortion with 100% non- linear load: < 5%
permissible load unbalance: 100%
Non linear load capability: 100%
Load handling capability without kVA derating: 0.5 lagging to 0.9 leading
General General and safety requirements for UPS: IEC 62040-1-1
EMC requirements for UPS: IEC 62040-2
Design & Test Methods (1999): IEC 62040-3
Phase angle displacement accuracy 100% balance load: ±1°
100% unbalanced load: ±1°
Isolation Transformer: Built-in
Input Nominal input voltage: 380/400/415Vac 3-wire plus Ground
Input Voltage Range: 290 to 498 Vac
Nominal input frequency: 50/60HZ
Input frequency range: 45-55HZ/55-65HZ
Input current distortion With: 5% With optional filter
Power factor (with filter): 0.9 with optional filter
Battery Battery Brand: LEOCH/Emerson approved Battery
Battery capacity: 12 V,80 AH
Number of Battery: 34
Back Up time: Standard backup
Output Nominal output voltage: 380/400/415Vac 3- phase with Neutral
Physical Depth (mm): 855
Width(mm): 900
Height(mm): 1900
Weight(kg): 900 Kg
৳0
