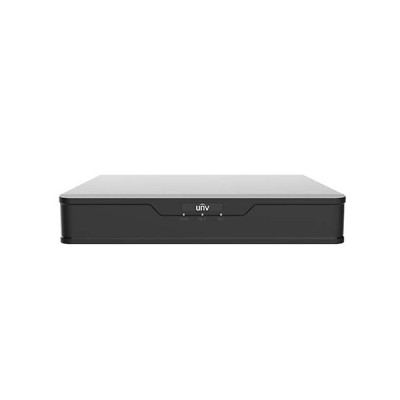

image of Uniview XVR301-04Q3 4-Channel 1 SATA XVR with Spec and Price in BDT

Uniview XVR301-04Q3 4-Channel 1 SATA XVR

Uniview XVR301-04Q3 4-Channel 1 SATA XVR

Key Features of XVR301-04Q3:

Channel: 4-Channel
Storage: Up to 8TB for each HDD
Output Port: HDMI. VGA, CVBS & Audio
Input Port: 1x RJ45, 2x USB2.0
Outgoing Bandwidth: 48Mbps
CALL FOR DETAILS: +880 1729-200300, +880 1969-633163

Based on 0 reviews. - Write a review

৳0.00

Add to Cart

Specification Description Reviews

Specification:

Key Features
attr - Key Feature 1 >	Channel: 4-Channel
attr -Key Feature 2 >	Storage: Up to 8TB for each HDD
attr -Key Feature 3 >	Output Port: HDMI. VGA, CVBS & Audio
attr -Key Feature 4 >	Input Port: 1x RJ45, 2x USB2.0
attr -Key Feature 5 >	Outgoing Bandwidth: 48Mbps
Call Info >	CALL FOR DETAILS: +880 1729-200300, +880 1969-633163
General
Brand	Uniview
Model	XVR301-04Q3
Type	4-Channel 1 SATA XVR
Hard Disk
SATA	1 SATA interface
Capacity	Up to 8TB for each HDD (The maximum HDD capacity varies with environment temperature)
Video/Audio Input
Analog Video Input	4-ch, BNC
IP Video Input	2-ch(only IP up to 6ch), each channel up to 4MP
Supported Analog Camera Types	Support AHD input: 8MP@15fps 5MP@20fps 4MP@30fps 1080P@30fps 720P@30fps Support TVI input: 8MP@15fps 5MP@20fps 4MP@30fps 1080P@30fps 720P@30fps Support CVI input: 8MP@15fps 5MP@25fps 4MP@30fps 1080P@30fps 720P@30fps Support CVBS input
Audio Compression	G.711U
Audio Input	1-ch, RCA
Video/Audio Output
CVBS Output	1-ch, BNC
VGA Output	1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
HDMI Output	3840 x 2160/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
Audio Output	1-ch, RCA
Two-way Audio	1-ch, RCA
Live view display	HDMI/VGA: 1/4/6/8/9
Synchronous Playback	4
Snapshot
FTP/Schedule/Event Snapshot	4-ch snapshot, up to 704*576 resolution
Encoding
Recording Resolution	8MP Lite/5MP Lite/4MP Lite/1080P/720P/CIF
Recording Frame Rate	Main stream: 8MP Lite@8fps \| 5MP Lite @12fps \| 4MP Lite@15fps \| 1080P@15fps \| 720p@30fps Sub stream: D1@8fps \| D1@12fps \| D1@15fps \| D1@15fps \| D1@30fps
Audio Sample Rate	8KHz,16 bit per channel
Audio Bit Rate	64Kbps per channel
Decoding
Capability	Analog: 4 x 8MP Lite@8, 4x 5MP Lite@12, 4x 4MP Lite@15, 4 x 1080P@15 IP: 1 x 4MP@30, 2 x 1080P@30
Network
Protocols	TCP/IP, P2P, UPnP, DHCP, HTTP, HTTPS, DNS, DDNS, SMTP
Incoming Bandwidth	40Mbps (Up to 48Mbps after all-analog channel conversion)
Outgoing Bandwidth	48Mbps
Web Browser	IE(IE10/11) for Windows Firefox (version 52.0 and above) for Windows Chrome(version 45 and above) for Windows Edge(version 79 and above) for Windows
Remote Users	128
General Alarm
General Alarm	Motion detection
Alert Alarm	IP Conflict, Network Disconnected, Disk offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal
Smart Alarm
VCA Detection	Ultra Motion Detection(UMD) for analog:4-ch
VCA Search	Behavior Search
External Interface
Network Interface	1 RJ45 10M/100M self-adaptive Ethernet Interface
USB Interface	Rear panel: 2 x USB2.0
RS485	1
Alarm In	4-ch
Alarm Out	1-ch
Power
Power	12V DC Power Consumption: ≤ 10 W (without HDD)
Operating Environment
Working Environment	-10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing)
Physical Specification
Dimensions	260mm ×226mm× 47mm (10.2" × 8.9"×1.8")
Weight	≤1.1 Kg (2.42lb)
Additional
Certification	UL /CE /FCC /RoHS /WEEE
Warranty
Warranty Details	1-Year Brand Warranty

Description:

Uniview XVR301-04Q3 4-Channel 1 SATA XVR

Uniview XVR301-04Q3 is a reliable 4-channel XVR system designed for straightforward surveillance needs. Featuring 4 analog video inputs via BNC connectors and support for 2 IP video inputs, accommodating up to 4MP each, it offers comprehensive coverage for security monitoring. Display options include VGA and HDMI outputs with resolutions like 1920x1080p/60Hz and 3840x2160/30Hz for clear and detailed visuals. The addition of an audio output via RCA enhances the functionality of the system. Recording options comprise 8MP Lite, 5MP Lite, 4MP Lite, 1080P, 720P, and CIF, catering to various recording requirements. The main stream ensures optimal video quality with frame rates like 8MP Lite at 8fps, 5MP Lite at 12fps, 4MP Lite at 15fps, 1080P at 15fps, and 720P at 30fps. The substream operates at D1 with frame rates of 8fps, 12fps, 15fps, 15fps, and 30fps.

Audio features include an 8KHz sample rate and 16-bit per channel, with a bit rate of 64Kbps per channel. The system offers a reliable incoming bandwidth of 40Mbps, expanding to 48Mbps after converting all analog channels. With a capacity for 128 remote users and a 1-year brand warranty, the Uniview XVR301-04Q3 ensures dependable performance for your surveillance needs.
