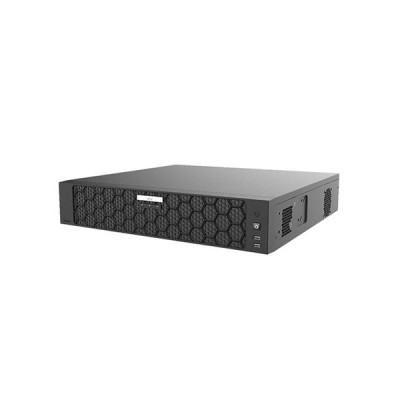

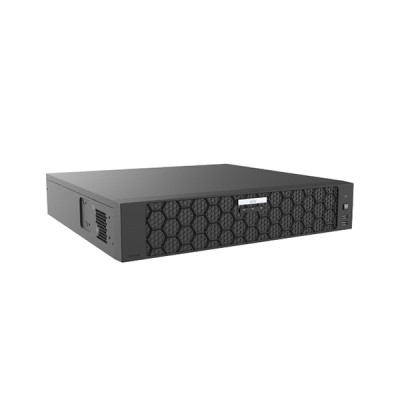

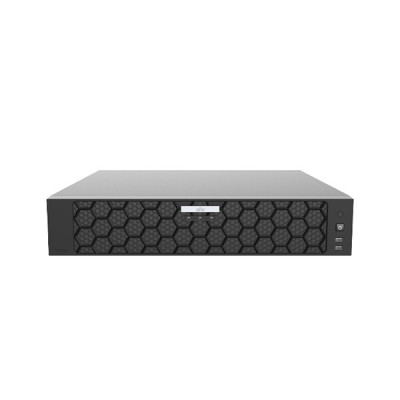

Uniview NVR508-64B 64 Channel 8 SATA NVR
Uniview NVR508-64B 64 Channel 8 SATA NVR
Uniview NVR508-64B 64 Channel 8 SATA NVR

Uniview NVR508-64B 64 Channel 8 SATA NVR

Key Features of NVR508-64B:
Channel: 64-Channel
Storage: Up to 12TB for each HDD
Output Port: HDMI & VGA
Input Port: 2x RJ45, 3x USB, 1x RS485
Outgoing Bandwidth: 160Mbps

CALL FOR DETAILS: +880 1729-200300, +880 1969-633163

Uniview NVR508-64B 64 Channel 8 SATA NVR
৳0.00
Specification:
Key Features
attr - Key Feature 1 > Channel: 64-Channel
attr -Key Feature 2 > Storage: Up to 12TB for each HDD
attr -Key Feature 3 > Output Port: HDMI & VGA
attr -Key Feature 4 > Input Port: 2x RJ45, 3x USB, 1x RS485
attr -Key Feature 5 > Outgoing Bandwidth: 160Mbps
Call Info >

CALL FOR DETAILS: +880 1729-200300, +880 1969-633163

General
Brand Uniview
Model NVR508-64B
Type 64 Channel 8 SATA NVR
Hard Disk
SATA 8 SATA interfaces
Capacity Up to 12TB for each disk
Disk Group Support
Video/Audio Input
IP Video Input 64-ch
Audio Input 1-ch, RCA
Video/Audio Output
VGA Output 1920x1080p@60, 1920x1080p@50, 1280x1024@60, 1600x1200@60, 1280x720@60, 1024x768@60
HDMI Output 4K (3840x2160)@30, 1920x1080p@60, 1920x1080p@50, 1600x1200@60, 1280x1024@60, 1280x720@60, 1024x768@60
Recording Resolution 16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Audio Output 1-ch, RCA
Audio Compression G.711A, G.711U
Live view display Simultaneous Output:
VGA: 1/4/6/8/9/16/25/36/64
HDMI: 1/4/6/8/9/16/25/36/64
Independent Output:
VGA: 1/4/6/8/9/16/25/32
HDMI: 1/4/6/8/9/16/25/32
Synchronous Playback 16-ch
Corridor Mode Screen 3/4/5/7/9/10/12/16/32
Snapshot
FTP/Schedule/Event Snapshot 4-ch snapshot, up to D1 resolution
Decoding
Capability Ultra 265/H.265: 2 x 16MP@30, 2 x 12MP@30, 4 x 4K@30, 6 x 5MP@30, 8 x 4MP@30, 10 x 3MP@30, 16 x 1080P@30, 32 x 960P@25, 36 x 720P@30, 64 x D1
H.264: 2 x 16MP(4800*2688)@30, 2 x 12MP@30, 2 x 4K@30, 4 x 5MP@30, 6 x 4MP@30, 8 x 3MP@30, 14 x 1080P@30, 28 x 960P@25, 30 x 720P@30, 64 x D1
Decoding format Ultra 265/H.265/H.264
Liveview/Playback 16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Network
Protocols TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP
Incoming Bandwidth 320Mbps
Outgoing Bandwidth 160Mbps
Web Browser IE(IE10/11) for Windows
Firefox (version 52.0 and above) for Windows
Chrome(version 45 and above) for Windows
Edge(version 79 and above) for Windows
Remote Users 128
General Alarm
General Alarm Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection
Alert Alarm IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal
Smart Alarm
VCA Detection Vehicle Detection, Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Temperature Detection(Fire Detection, Smoking Detection, Temperature Measurement, Smoke and Fire Detection), UMD(Ultra Motion Detection), Video Metadata, Traffic Monitoring
VCA Search Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report
People Counting People Flow Counting, Crowd Density Monitoring
Extras Smart Intrusion Prevention (SIP), Vehicle Detection, UMD, Temperature Detection, Video Metadata, Traffic Monitoring by Camera

Total 8-ch
External Interface
Network Interface 2 RJ-45 10M/100M/1000M self-adaptive Ethernet Interface
USB Interface Front: 2 x USB2.0, Rear panel: 1 x USB3.0
RS232 N/A
RS485 1
Alarm In 16-ch
Alarm Out 4-ch
Power
Power 100~240V AC
Power Consumption: ≤ 32W (without HDD)
Operating Environment
Working Environment -10°C~+ 55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing)
Physical Specification
Dimensions 442mm × 426mm × 89mm (17.4" × 16.8" × 3.5")
Weight ≤ 4Kg (8.80lb)
Additional
Certification Certification: CE, FCC, UL, RoHS, WEEE
CE: EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035
FCC: Part15 Subpart B
Warranty
Warranty Details 1-Year Brand Warranty
Description:

Uniview NVR508-64B 64 Channel 8 SATA NVR

Uniview NVR508-64B is a high-performance Network Video Recorder (NVR) designed to meet the demands of extensive surveillance systems. Boasting 64-channel IP video input capability, this NVR provides a robust solution for large-scale security setups. Equipped with 8 SATA interfaces, each supporting up to 12TB, the NVR508-64B ensures ample storage capacity for video data. The recording resolution spans from 16MP for ultra-high clarity to standard resolutions like 1080p and below, catering to diverse surveillance needs. The NVR supports VGA and HDMI outputs, offering flexibility in display options with resolutions up to 4K at 30Hz. The incoming bandwidth of 320Mbps and outgoing bandwidth of 160Mbps facilitate seamless real-time monitoring and efficient data transfer.

With features like defocus detection, scene change detection, and intelligent video analytics such as objects left behind and object removal, the NVR508-64B goes beyond standard surveillance, enhancing situational awareness. The NVR also includes traditional alarm features like motion detection, tampering alerts, and human body detection, ensuring a comprehensive security approach. The support for 128 remote users allows secure access from different locations, and the NVR keeps a vigilant eye on the system's integrity with alerts for IP conflicts, network disconnections, and disk status. The device is backed by a 1-year brand warranty, assuring reliability and performance for extended surveillance needs.
