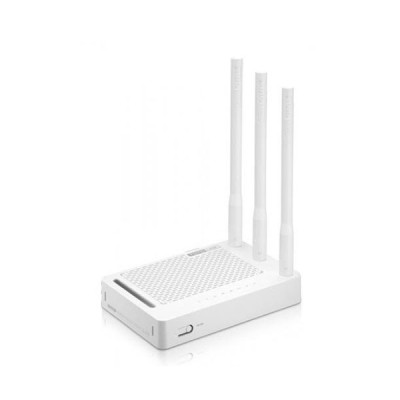

TOTOLINK N302R+ Router
TOTOLINK N302R+ Router

TOTOLINK N302R+ Router

Key Features:

Key Features
attr - Key Feature 1 > Antenna: 3 x 5dBi
attr -Key Feature 2 > Band: 2.4GHz
attr -Key Feature 3 > Speed: 300 Mbps
attr -Key Feature 4 > Feature: 2500 sqft Coverage, 15 ~ 25 Users
Totolink Router
Device management System Log
Administrator Setup
Firmware Upgrade
System Time
Configuration backup/restore
Interface 4 *10/100Mbps LAN Ports
1 *10/100Mbps WAN Port
NAT Port Forwarding
DMZ/Twin IP
Port Trigger
Routing Table
Output Power 20dBm (Max.)
Traffic QoS Setup
Connection Control
Wired Port Setup
Utility VPN Server
DDNS
WOL
Host Scan
Wireless Wireless Basic Setup
Multiple BSS
Multibridge(Repeater): Wireless Bridge/Wireless WAN
MAC Authentication
WDS
WPS
Advanced Setup
Power Supply 9V DC/0.8A
Button RST/WPS Button
LED Indicator 1 *Power, 1 *CPU, 1 *Wireless, 1 *WAN, 4 *LAN
Antenna – 3 *5dBi fixed antennas
Wireless Standards IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
RF Frequency 2.4~2.4835GHz
Data Rate 802.11n: Up to 300Mbps
802.11g: Up to 54Mbps (dynamic)
802.11b: Up to11Mbps (dynamic)
Wireless Security 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES)
Reception Sensitivity 270M: -61 [email protected]% PER
135M: -65 [email protected]% PER
54M: -68 [email protected]% PER
11M: -85 [email protected]% PER
6M: -88 [email protected]% PER
– 1M: -90 [email protected]% PER
Network Internet Setup: PPPoE/DHCP/Static IP
Firewall Internet Access Control: IP/MAC Address filtering
Net Detector
Remote/Internal access list
Environment Operating Temperature: 0℃~55℃ (32°F~131°F)
Storage Temperature: -20~65℃ (-4°F~149°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~95% non-condensing
Warranty Information
Warranty 1 Year Brand Warranty.
৳1,800
