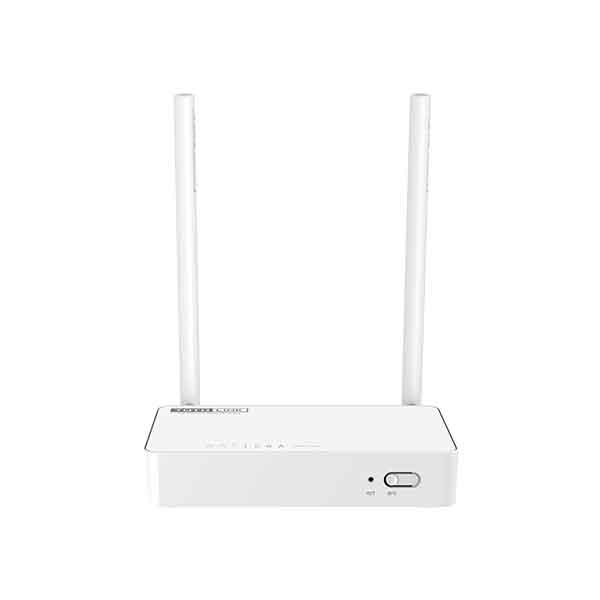

TOTOLINK N300RT-V4  Wireless N Wi-Fi Router
Out Of Stock
TOTOLINK N300RT-V4 Wireless N Wi-Fi Router

TOTOLINK N300RT-V4 Wireless N Wi-Fi Router

Key Features:

Key Features
attr - Key Feature 1 > Antenna: 2 x 5dBi
attr -Key Feature 2 > Band: 2.4GHz
attr -Key Feature 3 > Speed: 300 Mbps
attr -Key Feature 4 > Feature: 2000sqft Coverage, 15 ~ 25 Users
Totolink Router
Interface 4 * 100Mbps LAN Ports
1 * 100Mbps WAN Port
Power Supply DC 9V/0.5A
Button 1 * RST Button- 1* WPS Button
LED Indicator 1* System, 1* Wi-Fi, 1* WAN, 4* LAN
Antenna 2 * external fixed antennas (2.4G)
Dimensions (L x W x H) 134mm *76mm *24mm
Wireless Standards IEEE 802.11b,
IEEE 802.11g,
IEEE 802.11n
RF Frequency 2.4GHz
Data Rate 2.4GHz: Up to 300Mbps
EIRP 2.4GHz < 20dBm
Wireless Security 64/128-bit WEP, WPA, WPA2, WPA-PSK, WPA2-PSK.
Reception Sensitivity 2.4G:
11b 11M:[email protected]% PER
11g 54M:[email protected]% PER
11n HT20 MCS7:[email protected]% PER
HT40 MCS7:[email protected]% PER
Software Status WAN
Wireless
LAN
System Information
Network – WAN Setting
– LAN Setting
– IPTV Setting
– DHCP&ARP Tables
– Static Route
– Routing Table
QoS – QoS On/Off
– Add a rule
– Current QoS Rules Table
Wireless Functions – Basic Settings
– Multiple SSID1
– Multiple SSID2
– Multiple SSID3
– Multiple SSID4
– Advanced Settings
– Access Control
– WDS Settings
– WPS Settings
– Wireless Schedule
Firewall – MAC Filtering
– IP/Port Filtering
– Virtual Server
– URL Filtering
– DMZ
System – Upgrade Firmware
– Save/Reload Settings
– Time Zone Settings
– DDNS
– Denial-of-Service
– TR-069 Config
– Password Settings
– Reboot Schedule
– System Log
– Statistics
– Run Command
– Logout
Environment – Operating Temperature: 0℃~50 ℃ (32 ℉~122℉)- Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉)
– Operating Humidity: 10%~90% non-condensing
– Storage Humidity: 5%~90% non-condensing
Package Contents – N300RT_V4 Wireless Router *1
– Power Adapter *1
– Ethernet Cable *1
– Quick Installation Guide *1
Warranty Information
Warranty 1 Year Brand Warranty.
