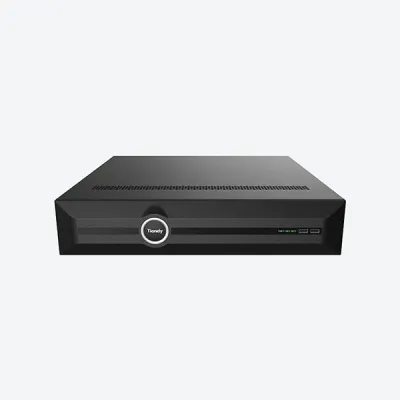

Tiandy TC-R3880 Spec:I/B/N/V4.0 8HDD 80ch NVR
Tiandy TC-R3880 Spec:I/B/N/V4.0 8HDD 80ch NVR
Tiandy TC-R3880 Spec:I/B/N/V4.0 8HDD 80ch NVR

Tiandy TC-R3880 Spec:I/B/N/V4.0 8HDD 80ch NVR

Key Features of TC-R3880 Spec:I/B/N/V4.0:
Up to 80-ch IP camera accesses
Incoming/Outgoing bandwidth: 640Mbps/320Mbps
16-ch synchronous playback
Up to 24 TB capacity for each HDD
Simultaneous HDMI1 and VGA1 outputs; Simultaneous HDMI2 and VGA2 outputs

CALL FOR DETAILS: +880 1973-439218
Tiandy TC-R3880 Spec:I/B/N/V4.0 8HDD 80ch NVR
৳0.00
Add to Cart
Specification Description Reviews
Specification:
Key Features
attr - Key Feature 1 > Up to 80-ch IP camera accesses
attr -Key Feature 2 > Incoming/Outgoing bandwidth: 640Mbps/320Mbps
attr -Key Feature 3 > 16-ch synchronous playback
attr -Key Feature 4 > Up to 24 TB capacity for each HDD
attr -Key Feature 5 > Simultaneous HDMI1 and VGA1 outputs; Simultaneous HDMI2 and VGA2 outputs
Call Info >

CALL FOR DETAILS: +880 1973-439218
Tiandy NVR
Video and Audio Access Channel: 80
Incoming Bandwidth: 640Mbps
Outgoing Bandwidth: 320Mbps
Resolution: 16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF

Preview Decoding Capability:
16MP(30fps)×3, 12MP(30fps)×4, 8MP(30fps)×6, 6MP(30fps)×8, 5MP(30fps)×9, 4MP(30fps)×12,
3MP(30fps)×16, 1080P(30fps)×24, 720P(30fps)×48, 4CIF(30fps)×80

Playback Decoding Capability:
16MP(30fps)×3, 12MP×4, 8MP(30fps)×6, 6MP(30fps)×8, 5MP(30fps)×9, 4MP(30fps)×12,
3MP(30fps)×16, 1080P(30fps)×16, 720P(30fps)×16, 4CIF(30fps)×16

Third-party Camera Access: ONVIF(Profile S/T); RTSP

HDMI Output:
HDMI: 800×600(60Hz), 1024×768(60Hz), 1280×720(50Hz/60Hz), 1280×800(60Hz), 1366×768(60Hz),
1440×900(60Hz), 1920×1080(50Hz/60Hz), 2560×1440(30Hz/60Hz), 2560×1600(60Hz), (4K)3840×2160(30Hz/60Hz)

VGA Output:
VGA: 800×600(60Hz), 1024×768(60Hz), 1280×720(50Hz/60Hz), 1280×800(60Hz), 1366×768(60Hz),
1440×900(60Hz), 1920×1080(50Hz/60Hz)

Multi-screen Display:
Independent Output:
HDMI1/VGA1: 1/2/3/4/5/6/7/8/9/10/12/13/16/20A/20B/25/32/36/40/64/80
HDMI2/VGA2: 1/2/3/4/5/6/7/8/9/10/12/13/16/20A/20B/25/32/36/40/64/80

Audio Input: 1-ch, 3.5mm
Audio Output: 1-ch, 3.5mm; BNC
Two-Way Audio: 1-ch, 3.5mm, using the audio input
Compression Standard Video Compression: S+265; H.265; S+264; H.264
Audio Compression: G.711A; G.711U; AAC; ADPCM_D
Stream Type: Video; Video & Audio
Network Network Protocol:
802.1X; ARP; DDNS; DHCP; DNS; Easy DDNS; FTP; HTTP; HTTPS; ICMP; IGMP; IPv4; IPv6;
Multicast; NFS; NTP; PPPoE; QoS; RTCP; RTP; RTSP; SMB/CIFS; SMTP; SNMP v1/v2/v3;
SRTP; SSH; SSL; TLSv1.2; TCP; UDP; Unicast; UPnP

Moblie Client: EasyLive Plus (Android, iOS)
System Compatibility: ONVIF(Profile S/T/G); RTSP; CGI; SDK; P2P
Web: IE10+; Firefox52+; Edge89+; Safari11+; Chrome57+
Recording Playback Multi-channel Playback: 16
Record Mode: Manual Recording; Alarm Recording; Schedule Recording
Storage Method: Local HDD, eSATA
Backup: USB storage device, eSATA, Network

Playback Function:
Play/Pause/Stop/Reverse/Slow/Speed/Backwards 30s/Forwards 30s/Full Screen/
Backup (Video Editing)/Step/Digital Zoom/Instant Replay

Dual Stream Record: Yes
Alarm General Alarm: Motion Detection; Mask Alarm; Alarm Input(IPC); Alarm Input(NVR)

Exceptions Alarm:
Video Loss; Network Disconnected; No Disk; Illegal Access; Disk group space alert;
Disk Full; Disk R/W Error; Recording Abnormal; Abnormal found in smart of disk;
Abnormal temperature of the disk; Hot-spare Exception; Array Exception; Voltage Alarm(IPC);
RTC Failure; IP Address Conflict; MAC Address Conflict; Disk Overload
Intelligent Analytics AI by Camera:
Tripwire; Double Tripwire; Perimeter; Object Abandon; Object Missing; Running; Parking;
Heatmap; Loitering; Video Abnormal; Audio Abnormal; License Plate Recognition; On Duty Detection;
Crowd Detection; Safety Helmet Detection; Electric Bicycle Detection; People Counting;
Link to Tracking; Smoke and Fire Detection; Environmental Temperature Measurement; Face Detection;
Human Body Temperature Measurement; Smart Alarm; Face Recognition; Human/Vehicle Classification

VCA Search:
Early-warning Search; Behavior Search; License Plate Search; Safety Helmet Search
Thermographic Retrieval; Duty Search; Electric Bicycle Retrieval; Face Search(Search by face attributes/event)

VCA Report: Heatmap; People Counting; Face Statistics
Face Detection Face Attributes Search:
Gender; Age; Glasses; Face Mask; Body Temp.
Face Recognition Face Picture Library:
Up to 300 face libraries
Up to 100000 base images

Face Picture Comparison: Yes (Cooperate with facial recognition IPC)
Storage HDD Capacity: Up to 24 TB capacity for each HDD
Disk Group: 8 Disk Group

RAID:
JBOD, RAID0, RAID1, RAID5, RAID6, RAID10
(To enable RAID, please use surveillance-grade AI disks or enterprise-class disks.)
External Port eSATA: 1×eSATA
USB: 2×USB2.0; 1×USB3.0
HDMI: 2×HDMI(supports up to 4K resolution output)
VGA: 2×VGA
Network Interface: 2×RJ-45, 10/100/1000 Mbps self-adaptive Ethernet port
SATA: 8×SATA interface
RS-232: 1×RS-232
RS-485: 2×RS-485
Alarm I/O: 16-ch, TTL inputs, 3mA, 3.3VDC; 4-ch, relay outputs, 1A, 24VDC
General UI Language:
Simple Chinese; Traditional Chinese; English; Spanish; Korean; Italian; Turkish;
Russian; Thai; French; Polish; Dutch; Hebrew; Arabic; Vietnamese; German; Ukrainian;
Portuguese; Albanian; Indonesian; Greek

Power Supply: 100~240V AC
Power Consumption: <18W(HDD not included, idling)
NetWeight: 6.2Kg
GrossWeight: 8.4Kg
Boundary Dimensions: 440(L)455(W)94(H)mm
Package Dimensions: 565(L)565(W)220(H)mm
Operating Temperature: -10℃~+55℃ (+14℉~+131℉)
Operating Humidity: 10%~90%RH (non-condensing)
Storage Temperature: -20℃~+60℃ (-4℉~+140℉)

Package Kit:
Network Video Recorder*1; Screw Pack*1; Mouse*1; European Standard Power Cord*1;
Ear Plate*2; SATA Hard Disk Data Cable*8; Instructions*1; Parts List*1
Warranty 1-Year Brand Warranty
Description:

Tiandy TC-R3880 Spec:I/B/N/V4.0 8HDD 80ch NVR

Tiandy TC-R3880 Spec:I/B/N/V4.0 8HDD 80ch NVR is a high-capacity network video recorder built for large surveillance systems that need stable performance and wide camera support. It supports up to 80 IP cameras with 640Mbps incoming and 320Mbps outgoing bandwidth, ensuring smooth live view and recording. The NVR supports S+265, H.265, S+264, and H.264 video formats, where S+265 helps reduce storage use by up to 75% while keeping clear video quality. This model provides strong decoding power, supporting up to 16MP cameras and allowing 16-channel synchronous playback. It supports a wide range of resolutions from QCIF to 16MP and offers flexible preview and playback options for different setups. Dual HDMI and VGA outputs work at the same time, with HDMI supporting up to 4K resolution for clear and detailed display on large screens. Multi-screen display options are available on both HDMI and VGA outputs.

The TC-R3880 includes two self-adaptive gigabit Ethernet ports for stable network connection and supports ONVIF and RTSP for third-party camera access. Audio input, audio output, and two-way audio are supported. Recording modes include manual, alarm, and scheduled recording, with backup options through USB, eSATA, and network. This NVR supports advanced AI functions through connected cameras, including people counting, face detection, face recognition, license plate recognition, safety helmet detection, crowd detection, fire and smoke detection, and many other smart analytics features. Face recognition supports up to 300 face libraries and 100,000 images.


Overview of Tiandy TC-R3880 Spec:I/B/N/V4.0 8HDD 80ch NVR:

  • Up to 80-ch IP camera accesses
  • Incoming/Outgoing bandwidth: 640Mbps/320Mbps
  • S+265, H.265, S+264, H.264 video formats
  • Max. decoding capability: 16MP(30fps)×3 or 1080P(30fps)×24
  • 16-ch synchronous playback
  • Up to 24 TB capacity for each HDD
  • Simultaneous HDMI1 and VGA1 outputs; Simultaneous HDMI2 and VGA2 outputs
  • HDMI output at up to 4K resolution
  • 2×RJ-45, 10/100/1000 Mbps self-adaptive Ethernet port
  • S+ 265 compression effectively reduces the storage space by up to 75%
  • Support cloud upgrade

It supports up to eight SATA hard drives, each up to 24TB, with JBOD and multiple RAID modes for data protection. Cloud upgrade, mobile viewing through EasyLive Plus, wide system compatibility, and stable operation in different environments are included. The device comes with all required accessories and a 1-year brand warranty.

Buy Tiandy TC-R3880 Spec:I/B/N/V4.0 8HDD 80ch NVR in Bangladesh

You can buy your desired Tiandy TC-R3880 Spec:I/B/N/V4.0 8HDD 80ch NVR at Global Brand PLC. We are the authorised distributor of Tiandy in Bangladesh. You buy online and enjoy free home delivery. You can also visit any of our branches near you.
