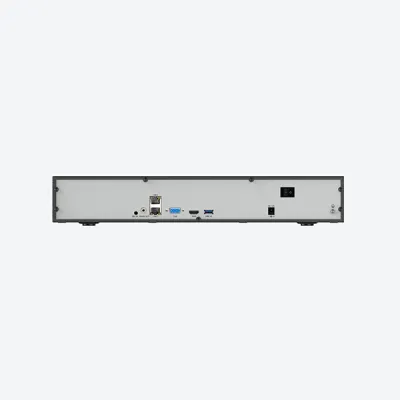

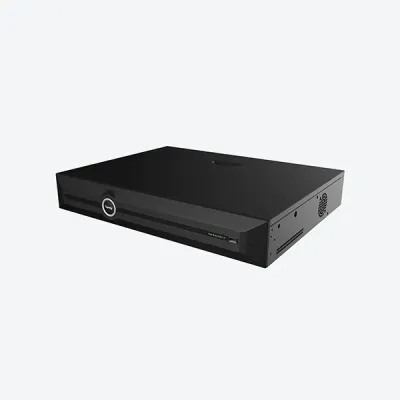

image of Tiandy TC-R3440 Spec:I/B/N/H/C/V4.1 4HDD 40ch NVR with Spec and Price in BDT
image of Tiandy TC-R3440 Spec:I/B/N/H/C/V4.1 4HDD 40ch NVR with Spec and Price in BDT
image of Tiandy TC-R3440 Spec:I/B/N/H/C/V4.1 4HDD 40ch NVR with Spec and Price in BDT
Tiandy TC-R3440 Spec:I/B/N/H/C/V4.1 4HDD 40ch NVR
Tiandy TC-R3440 Spec:I/B/N/H/C/V4.1 4HDD 40ch NVR
Tiandy TC-R3440 Spec:I/B/N/H/C/V4.1 4HDD 40ch NVR

Tiandy TC-R3440 Spec:I/B/N/H/C/V4.1 4HDD 40ch NVR

Key Features of TC-R3440 Spec:I/B/N/H/C/V4.1:
Up to 40-ch IP camera accesses
Incoming/Outgoing bandwidth: 400Mbps/400Mbps
16-ch synchronous playback
Up to 10 TB capacity for each HDD
Max. decoding capability: 16MP(30fps)×2 or 1080P(30fps)×20

CALL FOR DETAILS: +880 1973-439218
Tiandy TC-R3440 Spec:I/B/N/H/C/V4.1 4HDD 40ch NVR
৳0.00
Add to Cart
Specification Description Reviews
Specification:
Key Features
attr - Key Feature 1 > Up to 40-ch IP camera accesses
attr -Key Feature 2 > Incoming/Outgoing bandwidth: 400Mbps/400Mbps
attr -Key Feature 3 > 16-ch synchronous playback
attr -Key Feature 4 > Up to 10 TB capacity for each HDD
attr -Key Feature 5 > Max. decoding capability: 16MP(30fps)×2 or 1080P(30fps)×20
Call Info >

CALL FOR DETAILS: +880 1973-439218
Tiandy NVR
Video and Audio Access Channel: 40
Incoming Bandwidth: 400Mbps
Outgoing Bandwidth: 400Mbps
Resolution: 16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF

Preview Decoding Capability:
16MP(30fps)×2, 12MP(30fps)×3, 8MP(30fps)×5, 6MP(30fps)×6, 5MP(30fps)×8, 4MP(30fps)×10,
3MP(30fps)×13, 1080P(30fps)×20, 720P(30fps)×40, 4CIF(30fps)×40

Playback Decoding Capability:
16MP(30fps)×2, 12MP(30fps)×3, 8MP(30fps)×5, 6MP(30fps)×6, 5MP(30fps)×8, 4MP(30fps)×10,
3MP(30fps)×13, 1080P(30fps)×20, 720P(30fps)×40, 4CIF(30fps)×40

Third-party Camera Access: ONVIF(Profile S/T); RTSP

HDMI Output:
HDMI: 800×600(60Hz), 1024×768(60Hz), 1280×720(50Hz/60Hz), 1280×800(60Hz), 1280×1024(60Hz),
1366×768(60Hz), 1440×900(60Hz), 1920×1080(50Hz/60Hz), 2560×1440(30Hz/60Hz), 2560×1600(60Hz),
(4K)3840×2160(30Hz/60Hz)

VGA Output:
VGA: 800×600(60Hz), 1024×768(60Hz), 1280×720(50Hz/60Hz), 1280×800(60Hz), 1280×1024(60Hz),
1366×768(60Hz), 1440×900(60Hz), 1920×1080(50Hz/60Hz)

Multi-screen Display:
Independent Output:
HDMI: 1/2/3/4/5/6/7/8/9/10/12/13/16/20A/20B/25/32/36/40
VGA: 1/2/3/4/5/6/7/8/9/10/12/13/16/20A/20B/25/32/36/40

Audio Input: 1-ch, 3.5mm
Audio Output: 1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio: 1-ch, 3.5mm, using the audio input
Compression Standard Video Compression: S+265; H.265; S+264; H.264
Audio Compression: G.711A; G.711U; AAC; ADPCM_D
Stream Type: Video; Video & Audio
Network Network Protocol:
802.1X; ARP; DDNS; DHCP; DNS; Easy DDNS; FTP; HTTP; HTTPS; ICMP; IGMP; IPv4; IPv6;
Multicast; NFS; NTP; PPPoE; QoS; RTCP; RTP; RTSP; SMB/CIFS; SMTP; SNMP v1/v2/v3;
SRTP; SSH; SSL; TLSv1.2; TCP; UDP; Unicast; UPnP

Mobile Client: EasyLive Plus (Android, iOS)
System Compatibility: ONVIF(Profile S/T/G); RTSP; CGI; SDK; P2P
Web: IE10+; Firefox52+; Edge89+; Safari11+; Chrome57+
Recording Playback Multi-channel Playback: 16
Record Mode: Manual Recording; Alarm Recording; Schedule Recording
Storage Method: Local HDD
Backup: USB storage device, Network

Playback Function:
Play/Pause/Stop/Reverse/Slow/Speed/Backwards 30s/Forwards 30s/Full Screen/
Backup (Video Editing)/Step/Digital Zoom/Instant Replay

Dual Stream Record: Yes
Alarm General Alarm: Motion Detection; Mask Alarm; Alarm Input(IPC)

Exceptions Alarm:
Video Loss; Network Disconnected; No Disk; Illegal Access; Disk group space alert; Disk Full; Disk R/W Error;
Recording Abnormal; Abnormal found in smart of disk; Abnormal temperature of the disk; Hot-spare Exception;
Array Exception; Voltage Alarm(IPC); RTC Failure; IP Address Conflict; MAC Address Conflict; Disk Overload
Intelligent Analytics AI by Camera:
Tripwire; Double Tripwire; Perimeter; Object Abandon; Object Missing; Running; Parking; Heatmap;
Loitering; Video Abnormal; Audio Abnormal; On Duty Detection; Crowd Detection;
Electric Bicycle Detection; People Counting; Link to Tracking; Smoke and Fire Detection;
Environmental Temperature Measurement; Face Detection; Human Body Temperature Measurement;
Smart Alarm; Face Recognition; Human/Vehicle Classification

VCA Search:
Early-warning Search; Behavior Search; Thermographic Retrieval; Duty Search;
Electric Bicycle Retrieval; Face Search(Search by face attributes/event)

VCA Report: Heatmap; People Counting; Face Statistics
Face Detection Face Attributes Search:
Gender; Age; Glasses; Face Mask; Body Temp.
Face Recognition Face Picture Library:
Up to 300 face libraries
Up to 100000 base images

Face Picture Comparison: Yes (Cooperate with facial recognition IPC)
Storage HDD Capacity: Up to 10 TB capacity for each HDD
Disk Group: 4 Disk Group

RAID:
JBOD, RAID0, RAID1, RAID5, RAID6, RAID10
(To enable RAID, please use surveillance-grade AI disks or enterprise-class disks.)
External Port USB: 1×USB2.0; 1×USB3.0
HDMI: 1×HDMI(supports up to 4K resolution output)
VGA: 1×VGA
Network Interface: 2×RJ-45, 10/100/1000 Mbps self-adaptive Ethernet port
SATA: 4×SATA interface
General UI Language:
Simple Chinese; Traditional Chinese; English; Spanish; Korean; Italian; Turkish;
Russian; Thai; French; Polish; Dutch; Hebrew; Arabic; Vietnamese; German;
Ukrainian; Portuguese; Albanian; Indonesian; Greek

Power Supply: DC12V
Power Consumption: <15W(HDD not included, idling)
NetWeight: 3.3Kg
GrossWeight: 5.05Kg
Boundary Dimensions: 440(L)351(W)75(H)mm
Package Dimensions: 540(L)175(W)455(H)mm
Operating Temperature: -10℃~+55℃ (+14℉~+131℉)
Operating Humidity: 10%~90%RH (non-condensing)
Storage Temperature: -20℃~+60℃ (-4℉~+140℉)

Package Kit:
Network Video Recorder*1; Screw Pack*4; Mouse*1; Power Adapter(DC12V 5A)*1;
European Standard Power Cord*1; Ear Plate*2; SATA Hard Disk Data Cable*4;
SATA Power Cord*2; Instructions*1; Parts List*1
Warranty 1-Year Brand Warranty
Description:

Tiandy TC-R3440 Spec:I/B/N/H/C/V4.1 4HDD 40ch NVR

Tiandy TC-R3440 Spec:I/B/N/H/C/V4.1 4HDD 40ch NVR is a high-capacity network video recorder designed for medium to large surveillance systems. It supports up to 40 IP cameras with 400Mbps incoming and 400Mbps outgoing bandwidth, ensuring smooth video streaming and recording. The NVR supports S+265, H.265, S+264, and H.264 formats, with S+265 compression reducing storage use by up to 75% while keeping clear video quality. This model delivers strong decoding performance with support for up to 16MP cameras and allows 16-channel synchronous playback. It supports a wide range of resolutions from QCIF to 16MP and offers flexible preview and playback options for different camera setups. Independent HDMI and VGA outputs are available, with HDMI supporting up to 4K resolution for clear display. Multi-screen viewing options are supported on both HDMI and VGA outputs.

The TC-R3440 includes two RJ-45 gigabit Ethernet ports for stable network connection and supports ONVIF and RTSP for third-party camera access. Audio input, output, and two-way audio are supported for real-time communication. Advanced recording modes such as manual, alarm, and scheduled recording are included, along with USB and network backup options. This NVR supports advanced AI functions through connected cameras, including tripwire detection, people counting, face detection, face recognition, heatmap, crowd detection, fire and smoke detection, and many other smart analytics features. Face recognition supports up to 300 face libraries and 100,000 images.


Overview of Tiandy TC-R3440 Spec:I/B/N/H/C/V4.1 4HDD 40ch NVR:

  • Up to 40-ch IP camera accesses
  • Incoming/Outgoing bandwidth: 400Mbps/400Mbps
  • S+265, H.265, S+264, H.264 video formats
  • Max. decoding capability: 16MP(30fps)×2 or 1080P(30fps)×20
  • 16-ch synchronous playback
  • Up to 10 TB capacity for each HDD
  • Independent HDMI and VGA outputs
  • HDMI output at up to 4K resolution
  • 2×RJ-45, 10/100/1000 Mbps self-adaptive Ethernet port
  • S+ 265 compression effectively reduces the storage space by up to 75%
  • Support cloud upgrade

It supports up to four SATA hard drives, each up to 10TB, with JBOD and multiple RAID modes for data safety. Cloud upgrade, mobile viewing via EasyLive Plus, and wide system compatibility are included. Powered by DC 12V with low power use, it operates reliably in demanding environments and comes with a 1-year brand warranty.

Buy Tiandy TC-R3440 Spec:I/B/N/H/C/V4.1 4HDD 40ch NVR in Bangladesh

You can buy your desired Tiandy TC-R3440 Spec:I/B/N/H/C/V4.1 4HDD 40ch NVR at Global Brand PLC. We are the authorised distributor of Tiandy in Bangladesh. You buy online and enjoy free home delivery. You can also visit any of our branches near you.
