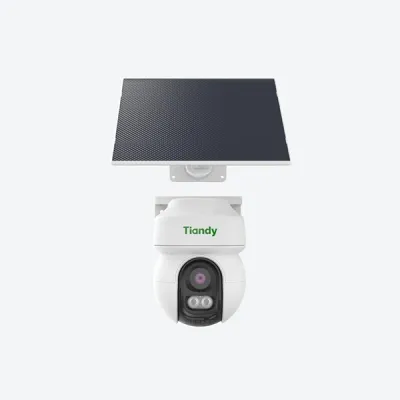

Tiandy TC-H333K 9DA-4 PT Camera
Tiandy TC-H333K 9DA-4 PT Camera
Tiandy TC-H333K 9DA-4 PT Camera
Tiandy TC-H333K 9DA-4 PT Camera

Tiandy TC-H333K 9DA-4 PT Camera

Key Features of TC-H333K 9DA-4:
Up to 3MP, 2304×1296@20fps
Plastic housing
IR range up to 30m
1×Built-in Mic, 1×Built-in Loudspeaker
Support microSD/microSDHC/microSDXC card, up to 256GB

CALL FOR DETAILS: +880 1973-439218

Tiandy TC-H333K 9DA-4 PT Camera
৳0.00
Specification:
Key Features
attr - Key Feature 1 > Up to 3MP, 2304×1296@20fps
attr -Key Feature 2 > Plastic housing
attr -Key Feature 3 > IR range up to 30m
attr -Key Feature 4 > 1×Built-in Mic, 1×Built-in Loudspeaker
attr -Key Feature 5 > Support microSD/microSDHC/microSDXC card, up to 256GB
Call Info >

CALL FOR DETAILS: +880 1973-439218

Tiandy CCTV Camera
Camera Image Sensor: 1/3"CMOS
Min. Illumination: Color:0.02Lux@(F1.6,AGC ON),B/W:0Lux with IR
Shutter Time: 1s-1/100000s
Day&Night: Fixed IR-cut
WDR: DWDR
S/N: ≥52dB
Angle Adjustment: 0~345°; 0~90°
Lens Lens Type: Fixed focal lens
Focal Length: 4mm
Lens Mount: M12
Aperture Range: F1.6
Aperture Type: Fixed
Field of View: 79.6°(H); 42.5°(V); 91.7°(D)

DORI Distance:
Detect: 59.26 m
Observe: 23.52 m
Recognize: 11.85 m
Identify: 5.93 m
Pan & Tilt Pan Speed: 30°/s
Tilt Speed: 25°/s
Preset: 64
Illuminator IR LEDs: 2
IR Distance: Up to 30m
Wavelength: 850nm
White LEDs: 2
Whitelight Distance: 15m
Red and Blue Alarm Flash: Yes
Compression Standard Video Compression: S+265/H.265
Video Bit Rate: 1.2Mbps
Audio Compression: G.711A
Audio Sampling Rate: 16kHz
Image Max. Resolution: 3MP,2304×1296@20fps
Main Stream: PAL:20fps(2304×1296)
Sub Stream: PAL:20fps(704x576)
AGC: Yes
3D DNR: Yes
White Balance: Auto
OSD: 48*48; Lattice
Feature General Alarm: Smart Alarm(human and vehicle detection)
Exceptions Alarm: Disk Full; Disk R/W Error
Linkage Method: Trigger Sound; Trigger Warmlight; Trigger Recording; Trigger Capture
Auto-Tracking: Auto-Tracking
Network Protocols: TCP/IP; UDP; ICMP; DNS; NTP; IPv4; SSH; Unicast
Remote Connection: ≤2
Client: Easy7 VMS
Mobile Client: EasyLive Plus
Interface Built-in Mic: 1×Built-in Mic
Built-in Speaker: 1×Built-in Loudspeaker
Reset Button: Yes
On-board Storage: Support microSD/microSDHC/microSDXC card,up to 256GB
General Operating Temperature: -10℃~50℃(14℉~122℉);(Charge:-5℃~50℃)
Operating Humidity: ≤95%RH
Storage Temperature: -10℃~50℃(14℉~122℉)
Storage Humidity: 10%~95%RH(non-condensing)
Power Supply: DC5V±25%,Max. 10W
Protection: Surge500V; ESD6000V; IP65
Boundary Dimensions: 158(L)105W)144(H)mm
Package Dimensions: 255(L)200(W)180(H)mm
GrossWeight: 1.27kg
Warranty 1-Year Brand Warranty
Description:

Tiandy TC-H333K 9DA-4 PT Camera

Tiandy TC-H333K 9DA-4 PT Camera is a smart security camera designed for indoor and outdoor use with stable performance and clear video. It uses a 1/3" CMOS image sensor and records up to 3MP resolution at 2304×1296 with 20fps. The fixed 4mm lens with F1.6 aperture offers a wide viewing angle of up to 91.7° diagonal. Color video works in low light at 0.02 Lux, and night monitoring is supported with IR LEDs up to 30 meters, along with white LEDs for light alerts and red and blue alarm flash.

The camera supports smooth pan and tilt movement with 0–345° pan and 0–90° tilt, adjustable speed, and up to 64 preset points. DWDR, 3D DNR, AGC, and auto white balance help keep video clear in different lighting. DORI distance allows detection up to 59.26 meters and identification up to 5.93 meters. It supports S+265 and H.265 video compression with a bit rate of 1.2Mbps to reduce storage use. Audio recording and two-way talk are available through the built-in microphone and speaker using G.711A audio. Local storage is supported with microSD cards up to 256GB.

Smart alarm features include human and vehicle detection, auto-tracking, and multiple alarm actions such as sound, warm light, recording, and snapshot. Network support includes common IP protocols with up to two remote connections, Easy7 VMS software, and EasyLive Plus mobile app. The camera runs on DC5V power with a maximum of 10W, supports charging, works in temperatures from -10℃ to 50℃, and has IP65 protection against dust and water. It comes in a plastic body, has compact dimensions, weighs 1.27kg, and includes a 1-year brand warranty.

Buy Tiandy TC-H333K 9DA-4 PT Camera in Bangladesh

You can buy your desired Tiandy TC-H333K 9DA-4 PT Camera at Global Brand PLC. We are the authorised distributor of Tiandy in Bangladesh. You buy online and enjoy free home delivery. You can also visit any of our branches near you.
