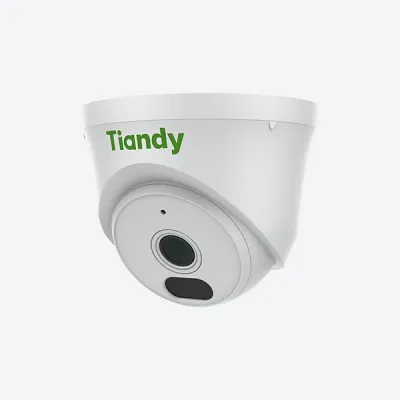

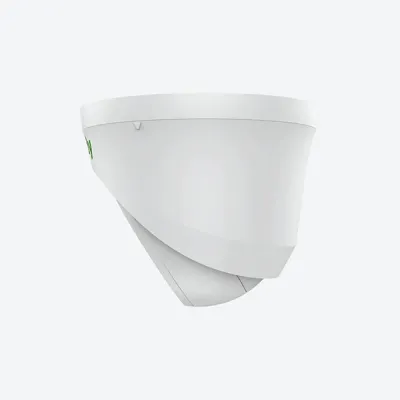

Tiandy TC-C320N 1ANB-28 (AK Series) Turret Camera
Tiandy TC-C320N 1ANB-28 (AK Series) Turret Camera
Tiandy TC-C320N 1ANB-28 (AK Series) Turret Camera
Tiandy TC-C320N 1ANB-28 (AK Series) Turret Camera

Tiandy TC-C320N 1ANB-28 (AK Series) Turret Camera

Key Features of TC-C320N 1ANB-28 (AK Series):
Up to 2MP, 1920×1080@30fps
Plastic housing
IR range up to 30m
1×Built-in Mic
Color: 0.02Lux@(F1.6,AGC ON), B/W: 0Lux with IR

CALL FOR DETAILS: +880 1973-439218
Tiandy TC-C320N 1ANB-28 (AK Series) Turret Camera
৳0.00
Add to Cart
Specification Description Reviews
Specification:
Key Features
attr - Key Feature 1 > Up to 2MP, 1920×1080@30fps
attr -Key Feature 2 > Plastic housing
attr -Key Feature 3 > IR range up to 30m
attr -Key Feature 4 > 1×Built-in Mic
attr -Key Feature 5 > Color: 0.02Lux@(F1.6,AGC ON), B/W: 0Lux with IR
Call Info >

CALL FOR DETAILS: +880 1973-439218
Tiandy CCTV Camera
Camera Image Sensor: 1/3"CMOS
Min. Illumination: Color:0.02Lux@(F1.6,AGC ON),B/W:0Lux with IR
Shutter Time: 1s~1/100000s
Day&Night: IR-cut filter with auto switch (ICR)
Smart IR: Yes
WDR: DWDR
S/N: >52dB
Angle Adjustment: 0~340°(P); 0~75°(T); 0~360°(R)
Lens Lens Type: Fixed focal lens
Focal Length: 2.8mm
Lens Mount: M12
Aperture Range: F1.6
Aperture Type: Fixed
Field of View: 90.7°(H); 50.9°(V); 102.7°(D)

DORI Distance:
Detect:41.48m
Observe:16.46m
Recognize:8.3m
Identify:4.1m
Illuminator IR LEDs: 2
IR Distance: Up to 30m
Wavelength: 850nm
White LEDs: 2
Whitelight Distance: Up to 15m
Compression Standard Video Compression: S+265/H.265/H.264B/H.264M/H.264H
Video Bit Rate: 32k~4Mbps
Audio Compression: G.711A/G.711U
Audio Sampling Rate: 8kHz
Image Max. Resolution: 2MP,1920×1080@30fps

Main Stream:
PAL:25fps(1920×1080, 1280×720)
NTSC:30fps(1920×1080, 1280×720)

Sub Stream:
PAL:25fps(704×576, 704×288, 640×360, 352×288)
NTSC:30fps(704×480, 704×240, 640×360, 352×240)

BLC: Yes
HLC: Yes
AGC: Yes
3D DNR: Yes

White Balance:
Auto/Semi-Auto/Manual/Sunshine/Nature Light/Warmlight Lamp/
Daylight Lamp/Filament Lamp/Lock White Balance

OSD:
Overlay of additional characters in 1 regions, 1 line,
with a maximum of 48 characters; 16*16/32*32/48*48; Lattice

Privacy Mask: 4 black static areas
Defog: Yes
Feature General Alarm: Motion Detection
Exceptions Alarm: IP Address Conflict
Network Protocols: RTSP; HTTP; TCP; UDP; ICMP; DHCP; DNS; NTP; IPv4; SSH; Unicast
System Compatibility: ONVIF(Profile S/T) ; SDK; CGI; Milestone
Remote Connection: ≤2
Client: Easy7 VMS
Web: IE10+; Firefox52+; Edge89+; Safari11+; Chrome57+
Interface Communication Interface: 1×RJ-45 (10/100 Base-T)
Built-in Mic: 1×Built-in Mic
General Web Client Language: English
Operating Temperature: -30℃~60℃(-22℉~140℉)
Operating Humidity: ≤95%RH
Storage Temperature: -30℃~60℃(-22℉~140℉)
Storage Humidity: 10%~95%RH(non-condensing)
Power Supply: PoE:IEEE 802.3af,Max. 2.5W
Protection: Surge4000V; ESD6000V

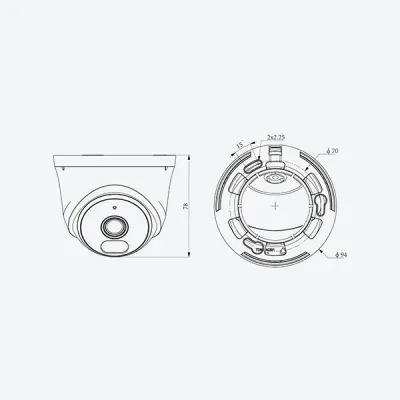

Boundary Dimensions: 94(L)94(W)78(H)mm
Package Dimensions: 105(L)105(W)85(H)mm
GrossWeight: 0.17kg
Warranty 1-Year Brand Warranty
Description:

Tiandy TC-C320N 1ANB-28 (AK Series) Turret Camera

Tiandy TC-C320N 1ANB-28 (AK Series) Turret Camera is a compact 2MP IP camera made for indoor and outdoor security use in homes, offices, shops, and small business areas. It records clear Full HD video at 1920×1080 resolution with up to 30 frames per second and supports S+265, H.265, and H.264 video formats to save storage and network data. The plastic body keeps the camera lightweight and suitable for ceiling or wall mounting, with stable operation in temperatures from -30℃ to 60℃ and humidity up to 95%.

This camera uses a 1/3" CMOS image sensor and can capture color video in low light down to 0.02 Lux. In total darkness, Smart IR with two IR LEDs provides night vision up to 30 meters, while built-in white LEDs support color images up to 15 meters. The fixed 2.8mm lens offers a wide field of view, making it useful for monitoring open areas. DWDR, 3D DNR, BLC, HLC, and AGC help maintain clear images in both bright and dark scenes.

A built-in microphone allows audio recording using G.711 formats at 8kHz. Motion detection supports basic alerts, and extra features include defog, privacy mask, OSD text display, and multiple white balance modes. The camera supports common network protocols such as RTSP, HTTP, TCP, UDP, and NTP, and works with ONVIF Profile S/T, SDK, CGI, and Milestone systems. It allows up to two remote connections and works with Easy7 VMS through supported web browsers. Power is supplied through PoE IEEE 802.3af with very low power use of up to 2.5W, reducing cable needs. The adjustable turret design allows flexible angle setup. The product comes with a 1-year brand warranty.

Buy Tiandy TC-C320N 1ANB-28 (AK Series) Turret Camera in Bangladesh

You can buy your desired Tiandy TC-C320N 1ANB-28 (AK Series) Turret Camera at Global Brand PLC. We are the authorised distributor of Tiandy in Bangladesh. You buy online and enjoy free home delivery. You can also visit any of our branches near you.
