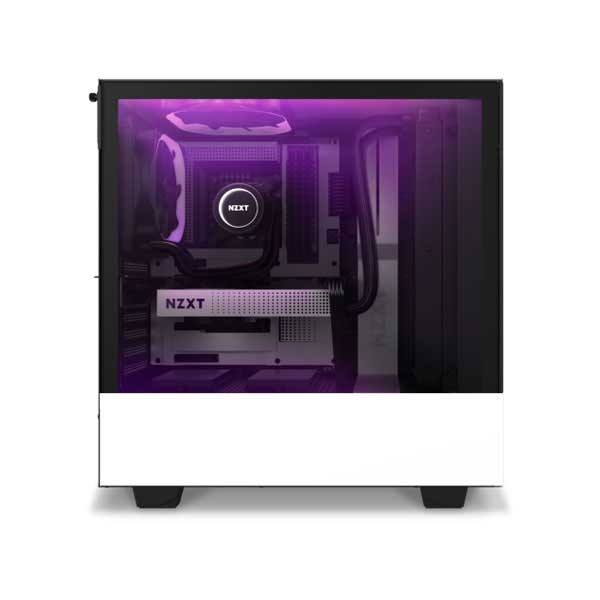

NZXT CA-H510E-W1 H510 Elite Matte White Chassis with Smart Device 2
NZXT CA-H510E-W1 H510 Elite Matte White Chassis with Smart Device 2
NZXT CA-H510E-W1 H510 Elite Matte White Chassis with Smart Device 2
NZXT CA-H510E-W1 H510 Elite Matte White Chassis with Smart Device 2
NZXT CA-H510E-W1 H510 Elite Matte White Chassis with Smart Device 2
NZXT CA-H510E-W1 H510 Elite Matte White Chassis with Smart Device 2
NZXT CA-H510E-W1 H510 Elite Matte White Chassis with Smart Device 2

NZXT CA-H510E-W1 H510 Elite Matte White Chassis with Smart Device 2

Key Features:

Key Features
attr - Key Feature 1 > SGCC Steel, Tempered Glass
attr -Key Feature 2 > Motherboard support : Mini-ITX, MicroATX, ATX
attr -Key Feature 3 > 280mm Radiator Support
attr -Key Feature 4 > Smart Device V2
attr -Key Feature 5 > 4 Pre Installed FANS
Casing
Case Size Mid Tower
Motherboard Support Mini-ITX, MicroATX, ATX
Drive Bays 2.5″: 2+1 3.5″: 2+1
Expansion Slots 7
Front I/O Port 1x USB 3.1 Gen 2 Type-C 1x USB 3.1 Gen 1 Type-A 1x Headset Audio Jack Front I/O internal header 1x USB 3.1 Gen 2 Internal Header 1x USB 3.1 Gen 1 Internal Header 1x USB 2.0 Internal Header 1x HD Audio Header
Color Matte White
Material(s) SGCC Steel, Tempered Glass
Tempered Glass Yes
Radiator Support (Front) Front: 2x 140 or 2x 120mm with Pull *Note: Need to remove RGB fans if you plan to mount the radiator to the front Rear: 1x 120mm
Smart Device V2 3x Fan channels with Max 10W per channel output* 2x RGB LED channels, each support up to 4x HUE 2 addressable LED strips or 5x Aer RGB 2 fans Built-in noise detection module *Note : If a splitter is used, fan control is regulated depending on the fan connected to the 4-pin port . Do not use low-noise adapters.
Fan Specs Aer RGB 2 (140mm) Speed: 500-1,500 RPM Airflow: 30.39 – 91.19 CFM Noise: 22 – 33 dBA Air Pressure: 0.17 – 1.52mm-H2O Bearing: Fluid Dynamic Bearing Fan Connector 4-Pin PWM
Clearance Cable Management: 19-23mm GPU Clearance: Up to 368.6mm w/o front radiator installed, up to 313.6mm with front radiator installed Vertical GPU Mount Clearance: 40.64mm CPU Cooler: Up to 165mm Front Radiator: 60mm Rear Radiator: 60mm Reservoir & Pump: Up to 180mm (Along cable bar), Up to 86mm (Along bottom panel)
Dimensions W: 210mm H: 435mm D: 428mm (without feet) W: 210mm H: 460mm D: 428mm (with feet)
Warranty 2 years
Weight 7.5 kg
Headphone
RGB 2x Integrated Aer RGB 2 140mm Fans 1x Integrated addressable LED Strip
৳13,000
Specification Description Reviews

Specification

Key Features
attr - Key Feature 1 > SGCC Steel, Tempered Glass
attr -Key Feature 2 > Motherboard support : Mini-ITX, MicroATX, ATX
attr -Key Feature 3 > 280mm Radiator Support
attr -Key Feature 4 > Smart Device V2
attr -Key Feature 5 > 4 Pre Installed FANS
Casing
Case Size Mid Tower
Motherboard Support Mini-ITX, MicroATX, ATX
Drive Bays 2.5″: 2+1 3.5″: 2+1
Expansion Slots 7
Front I/O Port 1x USB 3.1 Gen 2 Type-C 1x USB 3.1 Gen 1 Type-A 1x Headset Audio Jack Front I/O internal header 1x USB 3.1 Gen 2 Internal Header 1x USB 3.1 Gen 1 Internal Header 1x USB 2.0 Internal Header 1x HD Audio Header
Color Matte White
Material(s) SGCC Steel, Tempered Glass
Tempered Glass Yes
Radiator Support (Front) Front: 2x 140 or 2x 120mm with Pull *Note: Need to remove RGB fans if you plan to mount the radiator to the front Rear: 1x 120mm
Smart Device V2 3x Fan channels with Max 10W per channel output* 2x RGB LED channels, each support up to 4x HUE 2 addressable LED strips or 5x Aer RGB 2 fans Built-in noise detection module *Note : If a splitter is used, fan control is regulated depending on the fan connected to the 4-pin port . Do not use low-noise adapters.
Fan Specs Aer RGB 2 (140mm) Speed: 500-1,500 RPM Airflow: 30.39 – 91.19 CFM Noise: 22 – 33 dBA Air Pressure: 0.17 – 1.52mm-H2O Bearing: Fluid Dynamic Bearing Fan Connector 4-Pin PWM
Clearance Cable Management: 19-23mm GPU Clearance: Up to 368.6mm w/o front radiator installed, up to 313.6mm with front radiator installed Vertical GPU Mount Clearance: 40.64mm CPU Cooler: Up to 165mm Front Radiator: 60mm Rear Radiator: 60mm Reservoir & Pump: Up to 180mm (Along cable bar), Up to 86mm (Along bottom panel)
Dimensions W: 210mm H: 435mm D: 428mm (without feet) W: 210mm H: 460mm D: 428mm (with feet)
Warranty 2 years
Weight 7.5 kg
Headphone
RGB 2x Integrated Aer RGB 2 140mm Fans 1x Integrated addressable LED Strip
