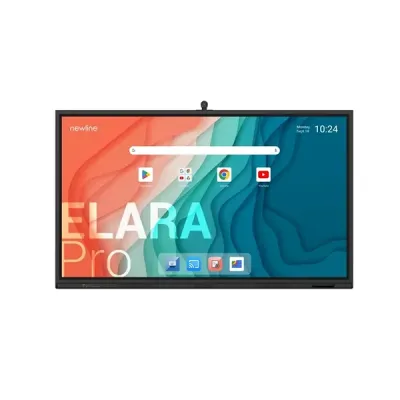

image of Newline TT-7523QCA+ 75-inch Education Interactive Flat Panel with Spec and Price in BDT

Newline TT-7523QCA+ 75-inch Education Interactive Flat Panel

Key Features of TT-7523QCA+:
Model: TT-7523QCA+
75 Inch Interactive Display Android 13, EDLA
16GB RAM, 320 GB Storage
Built-in Camera & MIC 4K Display, with Wi-Fi, NFC, Certified Zero Bondi Technology
Warranty: 3 Years Brand Warranty
Newline TT-7523QCA+ 75-inch Education Interactive Flat Panel
৳0.00
Add to Cart
Specification Description Reviews
Specification:
Key Features
attr - Key Feature 1 > Model: TT-7523QCA+
attr -Key Feature 2 > 75 Inch Interactive Display Android 13, EDLA
attr -Key Feature 3 > 16GB RAM, 320 GB Storage
attr -Key Feature 4 > Built-in Camera & MIC 4K Display, with Wi-Fi, NFC, Certified Zero Bondi Technology
attr -Key Feature 5 > Warranty: 3 Years Brand Warranty
Newline Interactive Display
Product Information Country/Company of Origin: USA
Country of Manufacture: China
Model Name: TT-7523QCA+
Brand: Newline
Display Active Screen Size ("inch): 75"
Display Area: 1650 × 928 mm
Display Resolution: 3840*2160
Display Ratio: 16:9
Display Colors: 10-bit
LCD Brightness: 500cd/m2
Contrast Ratio (Typical): 15000:1
Response Time (Typical): 4ms
Viewing Angle: 178∘
Lifetime (working hours): 50,000 hours
Touch TOUCH PANEL:
Glass Surface Treatment: Anti-Glare+Anti-Fingerprint + Antimicrobial Tempered Glass
Glass Hardness: 9H(Pencil)
Glass Thickness: 3.2 mm
Glass Transparency: 88%+3
Glass Haze: 4-8%
Bonding Type: Zero bonding
Touch Solution: IR
Touch Points: Android 20 & Windows 40
Speaker Speaker Position: Bottom Front
Speaker Power (Max.): 20Wx2
Speaker Rated Impedance: 6Ω
Speaker Freq.Response: 250Hz-20KHZ SPL-10dB
Output S.P.L.: 80+3dB
Speaker Position: back center
Speaker Power (Max.): 20WX1
Speaker Rated Impedance: 4Ω
Speaker Freq.Response: 80Hz-2.5KHz SPL-10dB
Output S.P.L.: 77±3dB
Transportation/Storage Storage Temperature & Humidity: -20-60°C 0-90% RH (non-condensing)
Working Temperature/Humidity: 0-40°C 20-80%RH (non-condensing)
Installation Method (optional): wall-mounted/mobile stand
Outline Dimension (without wall mount bracket): 1735x1051x122 mm
Packing Dimension: 1640x207x1036 mm
VESA Mount Pattern: 600*400mm
Net Weight: 39kg
Gross Weight: 50 kg
Smart System / On Board System Chipset: RK3588
CPU: ARM A76*4 + A55*4
GPU: ARM G610 MC4
RAM: 16GB
ROM: 256GB
SD Card: 64GB
Android Version: Android 13
OS Version: EDLA
Top Camera Port: Yes
OPS Slot: Yes
SDM-S Slot: Yes
WiFi Module: AZ932
WiFi Version: WiFi 5: 2.4G+5G | WiFi 6: 2.4G+5G
Bluetooth: BT5.2
Built-in Microphone: 8-Mic Array, Upper Front
NFC: Yes
AV Ports Front/Side I/O:
1x Type C (PD 100W)
1x HDMI In
1x USB Touch
2x USB 3.0
1x Mic In

Rear I/O:
2x HDMI In
1x DP
1x Type C (no PD)
1x Type C Out (no PD)
2x USB 3.0 Public
1x USB 3.0 Android
3x USB Touch 3.0
1x HDMI Out
1x S/PDIF Out
1x Line Out
1x RS232
1x LAN In
1x LAN Out
Inbuilt Microphone into Display (Not External)
Microphone Mic Position: 8-Mic Array, Upper Front
Distance: 8M
Mic Performance: Echo Cancellation, Beamforming, Noise Reduction
Inbuilt Camera Module Camera Resolution: 3840 x 2160/30 fps (4K)
Field of View: 120° FOV Lenses
Al Auto Framing (Face Tracking): Yes
ePTZ: Yes
Mic Array: Dual Mic
Pickup Distance: 3m
Noise Reduction: Yes
Built-in Audio ANR/AGC: Support long-distance collect voice
Electricity
Electronic Capacity Working Voltage: AC100-240V
Working Power Consumption: 75": <=550W
Power Consumption (Standby Mode): <0.5W
Miscellaneous Accessories: Power Cable, Stylus, Remote Control, wall mount kit, Dust Cover, etc.
Warranty 3 Years Brand Warranty
Description:

Newline TT-7523QCA+ 75-inch Education Interactive Flat Panel

Newline TT-7523QCA+ 75-inch Education Interactive Flat Panel is an intelligent screen designed for classrooms, training rooms, and meeting rooms that require a clear display of images, simple control and operation, and smooth collaboration. The product comes with a clear 4K UHD display with a resolution of 3840 x 2160 pixels, a brightness of up to 500 cd/m², and an angle of 178°. The tempered glass with anti-glare and anti-fingerprint properties, with a zero-bonding bond of the screen, provides clear visibility.

This display, powered by an octa-core processor from Rockchip RK3588 with a Mali Odin G610 MC4 GPU, supports Android 13 and comes pre-certified with Google EDLA, enabling full utilization of Google Workspace apps. This comes with a memory of 16GB of DDR4 RAM and expandable storage of up to 320GB. The integrated 4K AI camera enables 4K video at 30 fps with a 120° field of view with tilt. This is perfect for hybrid learning, video conferencing, and more. The 8-microphone array enables echo cancellation, beam-forming, and noise reduction, offering better voice capture. Audio solutions come with two 20W front speakers as well as a 20W rear subwoofer.

Key Features of Newline TT-7523QCA+ 75-inch Education Interactive Flat Panel:

  • 75-inch 4K UHD display with anti-glare, antimicrobial tempered glass
  • Android 13 with Google EDLA certification and full Google Workspace access
  • Integrated 4K AI camera with 8-mic array, noise reduction, and echo cancellation
  • Rockchip RK3588 octa-core processor with 16GB RAM and 320GB expandable storage
  • High-precision touch support for finger and passive pen with ±1 mm accuracy
  • Powerful hybrid audio system with 20W x2 speakers and 20W subwoofer
  • Wi-Fi 6, Bluetooth 5.2, NFC fast login, and 100W USB-C connectivity

The high-precision touch screen supporting finger touch, passive pen, and first inputs has an accuracy of ±1 mm for smooth writing and graphics creation. A 100W powered USB-C port enables convenient connection of devices. Wi-Fi 6 and Bluetooth 5.2 ensure rapid wireless communication. Additionally, NFC fast login ensures multi-user secure log entry. Featuring multiple HDMI, USB, and audio ports, in addition to the availability of the SDM-S and OPS slots, it is designed to deliver all the functionality needed for smart collaboration. The display also has a number of integrated tools for whiteboard functions, screen casting, classroom management, and visual communications.

Buy Newline TT-7523QCA+ 75-inch Education Interactive Flat Panel in Bangladesh

You can buy your desired Newline TT-7523QCA+ 75-inch Education Interactive Flat Panel at Global Brand PLC. We are the authorized distributor of Newline in Bangladesh. You buy online and enjoy free home delivery. You can also visit any of our branches near you.
