Mikrotik CCR1036-8G-2S+  8 Ports Router
In Stock

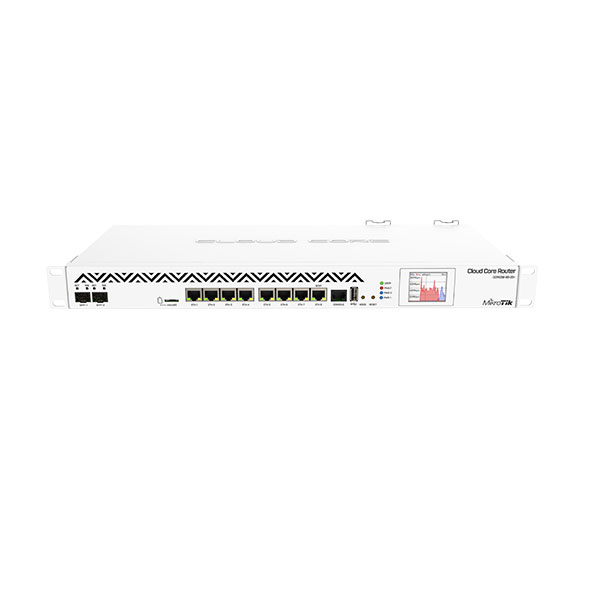

Mikrotik CCR1036-8G-2S+ 8 Ports Router

Mikrotik CCR1036-8G-2S+ 8 Ports Router

Key Features:

Key Features
attr - Key Feature 1 > 10/100/1000 Ethernet ports: 8
attr -Key Feature 2 > SFP+ ports: 2
Switch
Specifications Product code: CCR1036-8G-2S+
Architecture: TILE
CPU: TLR4-03680
CPU core count: 36
CPU nominal frequency: 1.2 GHz
Dimensions: 443 x 193 x 44 mm
RouterOS license: 6
Operating System: RouterOS
Size of RAM: 4 GB
Storage size: 1 GB
Storage type: NAND
MTBF: Approximately 200'000 hours at 25C
Tested ambient temperature: -20°C to 60°C
IPsec hardware acceleration: Yes
Powering Number of AC inputs: 2
AC input range: 100-240
Max power consumption: 73 W
Cooling type: 2
Ethernet 10/100/1000 Ethernet ports: 8
Fiber SFP DDMI: Yes
SFP+ ports: 2
Peripherals Memory card type: microSD
Memory Cards: 1
Serial console port: RJ45
Number of USB ports: 1
USB Power Reset: Yes
USB slot type: USB type A
Max USB current (A): 1
Number of M.2 slots 1
Other CPU temperature monitor: Yes
PCB temperature monitor: Yes
Voltage Monitor: Yes
Mode button: Yes
Beeper: Yes
Certification & Approvals Certification: CE, EAC, ROHS
IP: IP20
৳0

Specification

Key Features
attr - Key Feature 1 > 10/100/1000 Ethernet ports: 8
attr -Key Feature 2 > SFP+ ports: 2
Switch
Specifications Product code: CCR1036-8G-2S+
Architecture: TILE
CPU: TLR4-03680
CPU core count: 36
CPU nominal frequency: 1.2 GHz
Dimensions: 443 x 193 x 44 mm
RouterOS license: 6
Operating System: RouterOS
Size of RAM: 4 GB
Storage size: 1 GB
Storage type: NAND
MTBF: Approximately 200'000 hours at 25C
Tested ambient temperature: -20°C to 60°C
IPsec hardware acceleration: Yes
Powering Number of AC inputs: 2
AC input range: 100-240
Max power consumption: 73 W
Cooling type: 2
Ethernet 10/100/1000 Ethernet ports: 8
Fiber SFP DDMI: Yes
SFP+ ports: 2
Peripherals Memory card type: microSD
Memory Cards: 1
Serial console port: RJ45
Number of USB ports: 1
USB Power Reset: Yes
USB slot type: USB type A
Max USB current (A): 1
Number of M.2 slots 1
Other CPU temperature monitor: Yes
PCB temperature monitor: Yes
Voltage Monitor: Yes
Mode button: Yes
Beeper: Yes
Certification & Approvals Certification: CE, EAC, ROHS
IP: IP20

Description

Mikrotik CCR1036-8G-2S+  8 Ports Switch

Our fastest router has now become even better - the new CCR1036-8G-2S+ now has two SFP+ ports for 10G interface support (SFP+ module available separately). It uses the same 36 core Tilera CPU as our other CCR1036 model, and delivers the same performance.The device comes in a 1U rackmount case, has two SFP+ ports, eight Gigabit Ethernet ports and the serial console port.The new version of CCR1036-8G-2S+ has onboard 4GB of RAM, onboard M.2 PCIe 4x slot, full size USB slot and dual PSU for redundancy! Supports both SFP (1.25G) and SFP+ (10G) modules
