Huawei eKit AP361 802.11ax Dual-Radio Smart Antenna Managed PoE Settled/Ceiling Access Point
Huawei eKit AP361 802.11ax Dual-Radio Smart Antenna Managed PoE Settled/Ceiling Access Point
Huawei eKit AP361 802.11ax Dual-Radio Smart Antenna Managed PoE Settled/Ceiling Access Point
Huawei eKit AP361 802.11ax Dual-Radio Smart Antenna Managed PoE Settled/Ceiling Access Point

Huawei eKit AP361 802.11ax Dual-Radio Smart Antenna Managed PoE Settled/Ceiling Access Point

Key Features of AP361:
Model: AP361
Details: Settled AP | 802.11ax | 1.775 Gbps device rate | Dual-radio | 23 dBm transmit power | Smart antenna
Coverage Range: 20 m optimal
Recommended Users: 80
Warranty: 3 Year Brand Warranty
Huawei eKit AP361 802.11ax Dual-Radio Smart Antenna Managed PoE Settled/Ceiling Access Point
Based on 0 reviews. - Write a review
৳0.00
Add to Cart
Specification Description Reviews
Specification:
Key Features
attr - Key Feature 1 > Model: AP361
attr -Key Feature 2 > Details: Settled AP | 802.11ax | 1.775 Gbps device rate | Dual-radio | 23 dBm transmit power | Smart antenna
attr -Key Feature 3 > Coverage Range: 20 m optimal
attr -Key Feature 4 > Recommended Users: 80
attr -Key Feature 5 > Warranty: 3 Year Brand Warranty
Huawei Access Point
Wi-Fi Standard 2.4G: 802.11b/g/n/ax 5G: 802.11a/n/ac/ac Wave 2/ax
Installation Type Wall, Ceiling (Solid Wall/Gypsum Board/Spring Tee/Flat-Edge T-Rail/Channel Rail/Beam/Threaded Rod)
Optimal Signal Distance (M) 20
Device Rate 1.775 Gbps
Maximum Number Of Physical Ports On The Entire Device GE (RJ45) x 1, 10M/100M/1000M auto-sensing
Radio Number 2
Maximum Channel Bandwidth [Mhz] Radio 0 (2.4 GHz): 40 MHz
Radio 1 (5 GHz): 80 MHz
Maximum Transmit Power 2.4 GHz: 20 dBm/chain 23 dBm (combined power)
5 GHz: 20 dBm/chain 23 dBm (combined power)

Note: In V200R024C10 and later versions, the combined power is increased to 23 dBm by default. In versions earlier than V200R024C10, the combined power is only 20 dBm.
To increase the transmit power for the AP running an earlier version, install the corresponding patch by referring to the announcement on the official website.
Mimo Spatial Streams Radio 0 (2.4 GHz): 2x2
Radio 1 (5 GHz): 2x2
Maximum Power Consumption [W] 9.4
Input Voltage Range [V] PoE: 802.3af
Dimensions Without Packaging (H X W X D) [Mm(In.)] Diameter x depth: 180 mm x 35 mm (7.09 in. x 1.38 in.)
Dimensions With Packaging (H X W X D) [Mm(In.)] 200 mm x 231 mm x 61 mm (7.87 in. x 9.09 in. x 2.40 in.)
Weight Without Packaging [Kg(Lb)] 0.45 kg (0.99 lb)
Weight With Packaging [Kg(Lb)] 0.75 kg (1.65 lb)
Long-Term Operating Temperature [°C(°F)] 0°C to 40°C (32°F to 104°F) (From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.]
The maximum temperature of the device decreases by 1°C [1.8°F] for every 300 m [984.25 ft.] increase in altitude.)
Long-Term Operating Relative Humidity [Rh] 5% RH to 95% RH, non-condensing
Radio Interface Built-in smart antennas
Antenna Gain 2.4G: 4 dBi/chain (peak) 2 dBi (combined gain)
5G: 5 dBi/chain (peak value) 3 dBi (combined gain)
Operating Frequency Band 2.4GHz,5GHz
Warranty 03-Year Brand Warranty
Description:

Huawei eKit AP361 802.11ax Dual-Radio Smart Antenna Managed PoE Settled/Ceiling Access Point

Huawei eKit AP361 802.11ax Dual-Radio Smart Antenna Managed PoE Settled/Ceiling Access Point is a reliable wireless solution for small and medium-sized indoor environments such as offices, schools, and conference halls. It offers Wi-Fi 6 (802.11ax) support on 2.4 GHz and 5 GHz frequency bands with a total rate of devices up to 1.775 Gbps. With an optimal range of 20 meters, it delivers stable and fast wireless access for devices plugged into it. The AP361 features two radios with 2x2 MIMO on both the 2.4 GHz and 5 GHz bands. Maximum channel bandwidths are 40 MHz for 2.4 GHz and 80 MHz for 5 GHz. Up to 23 dBm combined transmit power on both bands gives coverage evenly across the service area. Smart antennas integrated improve signal quality with antenna gains of 4 dBi per chain on 2.4 GHz and 5 dBi per chain on 5 GHz.

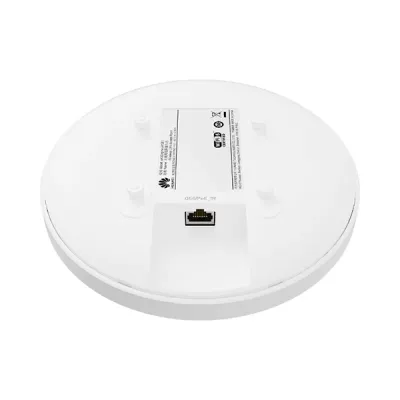

There is one GE auto-sensing RJ45 port (10M/100M/1000M) for wiring connection to the wired network. It is powered through 802.3af PoE with a maximum power consumption of 9.4 W. The unit has a small profile that is 180 mm in diameter and 35 mm in depth, weighing 0.45 kg without packaging. It can be installed on solid walls, gypsum boards, T-rails, beams, or threaded rods via wall or ceiling mount installation. The AP361 functions between temperatures of 0°C and 40°C and humidity levels ranging between 5% and 95% non-condensing, making it ideal for normal indoor conditions. Dual radios, Wi-Fi 6, and smart antennas converge in the Huawei eKit AP361 to deliver stable and fast wireless coverage for small to medium size indoor scenarios with multiple users and multiple installation environments.

Buy Huawei eKit AP361 802.11ax Dual-Radio Smart Antenna Managed PoE Settled/Ceiling Access Point in Bangladesh

You can buy your desired Huawei eKit AP361 802.11ax Dual-Radio Smart Antenna Managed PoE Settled/Ceiling Access Point at Global Brand PLC. We are the authorized distributor of Huawei eKit in Bangladesh. You buy online and enjoy free home delivery. You can also visit any of our branches near you.
