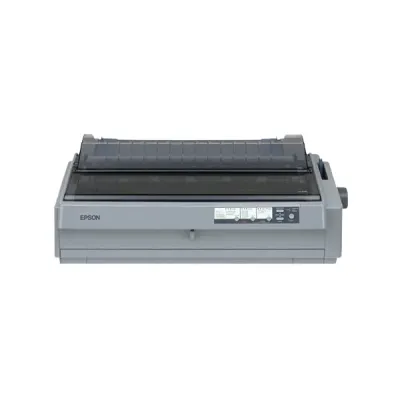

image of Epson LQ-2190 Dot Matrix Printer with Spec and Price in BDT

Epson LQ-2190 Dot Matrix Printer

Key Features of LQ-2190:
Model: LQ-2190
Print Method: Impact dot matrix
Print Direction: Bi-direction with logic-seeking
Interface: With a built-in USB, parallel interface and optional network print server
Warranty: 1 Year (Without Adapter & Printhead)
Epson LQ-2190 Dot Matrix Printer
Based on 0 reviews. - Write a review
৳0.00
Add to Cart
Specification Description Reviews
Specification:
Key Features
attr - Key Feature 1 > Model: LQ-2190
attr -Key Feature 2 > Print Method: Impact dot matrix
attr -Key Feature 3 > Print Direction: Bi-direction with logic-seeking
attr -Key Feature 4 > Interface: With a built-in USB, parallel interface and optional network print server
attr -Key Feature 5 > Warranty: 1 Year (Without Adapter & Printhead)
Epson Dot Matrix Printer
General Brand: Epson
Model: LQ-2190
Country Of Origin: Japan
Made in/ Assemble: China
Print Type: Dot Matrix
Printing Technology Print Method: Impact dot matrix
Control Panel: 6 switches and 10 LEDs are located on the panel
Print Direction: Bi-direction with logic seeking
Number of Pins in Head: 24 pins
Control Code: ESC/P2 and IBM PPDS emulation
Print Characteristics Character Sets: 14 international character sets and one legal character sets. 1 Italic and 12 graphical character tables: Italic table, PC437 (US Standard Europe), PC850 (Multilingual), PC860 (Portuguese), PC861 (Icelandic), PC863 (Canadian-French), PC865 (Nordic), BRASCII, Abicomp, Roman 8, ISO Latin 1, PC 858, ISO 8859-15
Bitmap Fonts: Epson Draft / Epson Courier: 10cpi, 12cpi, 15cpi; Epson Roman / Epson Sans Serif: 10cpi, 12cpi, 15cpi, Proportional; Epson Prestige: 10cpi, 12cpi; Epson Script / OCR-B / Orator / Orator-S / Epson Script C: 10cpi, Proportional
Scalable Fonts: Epson Roman / Sans Serif / Roman T / Sans Serif H: 10.5pt., 8pt. - 32pt. (every 2pt.)
Barcode: EAN-13, EAN-8, Interleaved 2 of 5, UPC-A, UPC-E, Code 39, Code 128, POSTNET, Coda bar (NW-7), Industrial 2 of 5, Matrix 2 of 5
Paper Path Manual Insertion: Rear in, Top out
Pull Tractor: Front or Rear or Bottom in, Top out
Push Tractor: Rear in, Top out
Paper Media Cut Sheet (Single Sheet):
Front Entry: Length: 148 - 420mm (5.8"" - 16.5""), Width: 100 - 420mm (3.9"" - 16.5""), Thickness: 0.065 - 0.14mm (0.0025"" - 0.0055"")
Rear Entry: Length: 100 - 420mm (3.9"" - 16.5""), Width: 100 - 420mm (3.9"" - 16.5""), Thickness: 0.065 - 0.14mm (0.0025"" - 0.0055"")

Cut Sheet (Multi-part Forms):
Front Entry: Length: 148 - 420mm (5.8"" - 16.5""), Width: 100 - 420mm (3.9"" - 16.5""), Thickness: 0.12 - 0.46mm (0.0047"" - 0.018"") (Total)
Rear Entry: Length: 100-420mm (3.9"" - 16.5""), Width: 100 - 420mm (3.9"" - 16.5""), Thickness: 0.12 - 0.46mm (0.0047"" - 0.018"") (Total)
Copies: 1 Original + 5 Copies

Envelopes:
Thickness: 0.16 - 0.52mm (0.0063" - 0.0205") (Total)

Envelope (No.6):
Rear Entry: Length: 92mm (3.6"), Width: 165mm (6.5"), Thickness: 0.16 - 0.52mm (0.0063 - 0.020") (Total)

Envelope (No.10):
Rear Entry: Length: 105mm (4.1"), Width: 241mm (9.5"), Thickness: 0.16 - 0.52mm (0.0063 - 0.020") (Total)

Continuous Paper (Single Sheet):
Front, Rear, Bottom Entry: Length: 101.6 - 558.8mm (4.0"" - 22.0""), Width: 101.6 - 406.4mm (4.0"" - 16.0""), Thickness: 0.065 - 0.46mm (0.0025"" - 0.018"") (Total)
Copies: 1 Original + 5 Copies"

Continuous Paper (Multi-part Forms):
Front, Rear, Bottom Entry: Length: 101.6 - 558.8mm (4.0"" - 22.0""), Width: 101.6 - 406.4mm (4.0"" - 16.0""), Thickness: 0.065 - 0.46mm (0.0025"" - 0.018"") (Total)
Copies: 1 Original + 5 Copies

Label (Base Sheet):
Bottom Entry: Length: 101.6 - 558.8mm (4.0" - 22.0"), Width: 101.6 - 406.4mm (4.0" - 16.0"), Thickness: 0.16 - 0.19mm (0.0063" - 0.0075") (Total)

Card:
Front, Rear Entry: Length: 148 - 200mm (5.8 - 7.8"), Width: 100 - 200mm (3.9 - 7.8"), Thickness: 0.22mm (0.0087")

Roll Paper:
Rear Entry: Diameter: 127mm (5.0"), Width: 216mm (8.5"), Thickness: 0.07 - 0.09mm (0.0028 - 0.0035")

Line Spacing:
4.23mm (1/6”) or programmable in increments of 0.0706mm (1/360”)
Connectivity Versatile Connectivity: With a built-in USB, parallel interface and optional network print server
Consumables Ribbon Cartridge Black" Approx. 15 million characters
Acoustic Noise Acoustic Noise: 54 dB
Environmental Conditions (Operating) Temperature: 5 - 35°C (Operating*2), 15 - 25°C (Operating*2 *3)
Humidty: 10 - 80% RH (Operating*2), 30 - 60% RH (Operating*2 *3)
Input Data Buffer Input Data Buffer: 128KB
Power Power Consumption: 46-Watt, 3 Watt (economy)
Product Details Body Color: White
Dimensions: 693 x 268 x 405mm
Weight (Kg): 13Kg
Warranty 1 Year (Without Adapter & Printhead)
Description:

Epson LQ-2190 Dot Matrix Printer

Epson LQ-2190 Dot Matrix Printer is a high-performance impact dot matrix printer designed for continuous and multi-part printing. It features a 24-pin printhead and bi-directional printing with logic-seeking technology for fast and accurate printing. The control panel has six switches and ten LEDs for easy operation. It supports ESC/P2 and IBM PPDS emulation, making it compatible with different systems.

This printer supports 14 international character sets and one legal character set. It offers bitmap fonts such as Epson Draft, Courier, Roman, and Sans Serif, along with scalable fonts in various sizes. It also supports barcode printing for EAN-13, UPC-A, Code 39, Code 128, and more. Epson LQ-2190 handles multiple paper types, including single sheets, multi-part forms, envelopes, continuous paper, labels, and roll paper. It supports different paper feeding methods, including manual insertion, pull tractor, and push tractor, allowing flexible paper handling. It can print one original plus up to five copies, making it ideal for business use.

With built-in USB and parallel interfaces, along with an optional network print server, this printer ensures easy connectivity. The ribbon cartridge lasts for approximately 15 million characters, reducing the need for frequent replacements. It operates with an acoustic noise level of 54 dB and has an input data buffer of 128KB for smooth printing. Designed for continuous operation, the printer functions within a temperature range of 5 - 35°C and humidity levels of 10 - 80% RH. It consumes 46 watts of power during operation and 3 watts in economy mode. The Epson LQ-2190 Dot Matrix Printer measures 693 x 268 x 405 mm, weighs 13 kg, and comes with a one-year warranty, excluding the adapter and printhead.

Buy Epson LQ-2190 Dot Matrix Printer in Bangladesh

You can buy your desired Epson LQ-2190 Dot Matrix Printer at Global Brand PLC. We are the authorized distributor of Epson in Bangladesh. You buy online and enjoy free home delivery. You can also visit any of our branches near you.
