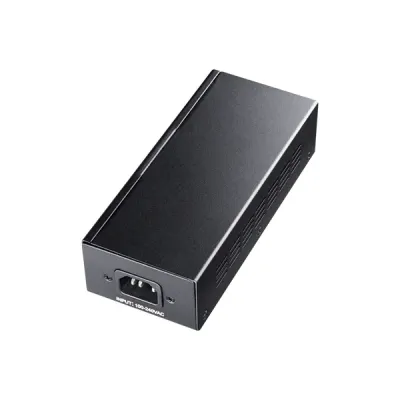

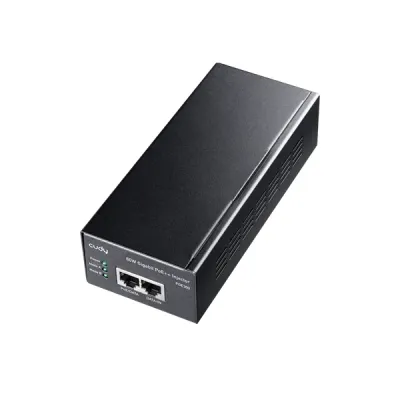

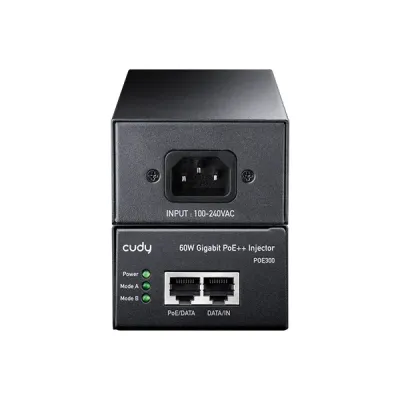

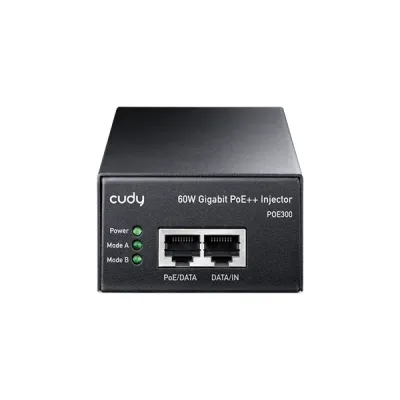

CUDY POE300 60W Gigabit PoE++ Injector

Key Features of POE300:

Supports IEEE 802.3af/at, up to 60W Max Power Output
100-meter Transmission Range
100–240v Ac Input, 50–60 Hz
Over-Current, Over-Voltage, and Overload Protection
Compact Wall-Mount Design for Easy Installation

Based on 0 reviews. - Write a review

৳3,400.00

Add to Cart

Buy Now

Specification Description Reviews

Specification:

Key Features
attr - Key Feature 1 >	Supports IEEE 802.3af/at, up to 60W Max Power Output
attr -Key Feature 2 >	100-meter Transmission Range
attr -Key Feature 3 >	100–240v Ac Input, 50–60 Hz
attr -Key Feature 4 >	Over-Current, Over-Voltage, and Overload Protection
attr -Key Feature 5 >	Compact Wall-Mount Design for Easy Installation
CUDY PoE Injector
Model Version	POE300 1.0
Protocols	802.3 Protocols: - 802.3i 10 Mbps over Twisted Pair - 802.3u 100 Mbps over Twisted Pair - 802.3ab 1 Gbps over Twisted Pair - 802.3af PoE - 802.3at PoE - 802.3bt PoE
PoE	Uplink Stream: 1× GbE Downlink Stream: 1× GbE, 802.3at/af/bt Downlink Pin Assignment: Four-Pair Transmission Distance: - Cat. 5e or higher cable: 100 meters at Gigabit - Note: Total cable length from the uplink switch through the PoE adapter to the downlink device is measured as one segment
Interfaces	LED: - Power - PoE Wattage Power Input: AC Inlet
Power	AC: 100-240V, 50/60Hz Max Power Output: 60W
Reliability	Power Protection: - Surge Protection - ESD Protection - Overvoltage Protection - Short-Circuit Protection EMS: - IEC/EN 61000-4-2, Level 3 ESD: Contact: 6kV; Air: 8kV - IEC/EN 61000-4-5, Level 4 Surge: RJ45: CM 4kV Grounding Methods: Three-Prong Plug Environment: - Ambient Operating Temperature: 0~40 ℃ (32~104 ℉) - Storage Temperature: -40~60 ℃ (-40~140 ℉) - Operating Humidity: 10%~85% non-condensing - Storage Humidity: 5%~85% non-condensing
Certifications	FCC, CE
Mechanical	Installation: - Desktop - Wall-mount Dimension: - 145×60×40 mm - 5.71×2.36×1.57 inches Casing Material: Metal Product Weight: 513 g (18.1 oz.)
Package Content	POE300 Power Cord Mounting Kit Installation Guide
Warranty	01-Year Brand Warranty

Description:

CUDY POE300 60W Gigabit PoE++ Injector

CUDY POE300 60W Gigabit PoE++ Injector is a premium power-over-Ethernet injector for IP cameras, Wi-Fi access points, and VoIP phones. It sends data and power over a single Ethernet cable with up to 60W power delivery over 100 meters. Ideal for indoor applications, it powers high-power PoE devices like PTZ IP cameras and dual-band Wi-Fi access points. With IEEE 802.3af and 802.3at standard compatibility, the POE300 is fully compatible with the majority of PoE and PoE+ devices. It uses all 4 wire pairs—pins 1/2(-), 3/6(+), 4/5(+), and 7/8(−)—to transmit higher power levels. Note: It does not support 802.3bt (PoE++) devices.

This injector features one Gigabit Ethernet input and one Gigabit Ethernet output, offering fast data transfer of up to 1000 Mbps. It comes equipped with surge and ESD protection to safeguard connected devices against power surges and electrical shock. A small metal box contains a power LED for easy monitoring and supports wall mounting, occupying less space in the office or home environment. It operates in temperatures of 0°C to 40°C and supports 85% non-condensing humidity.

Buy CUDY POE300 60W Gigabit PoE++ Injector in Bangladesh

You can buy your desired CUDY POE300 60W Gigabit PoE++ Injector at Global Brand PLC. We are the authorized distributor of CUDY in Bangladesh. You buy online and enjoy free home delivery. You can also visit any of our branches near you.
