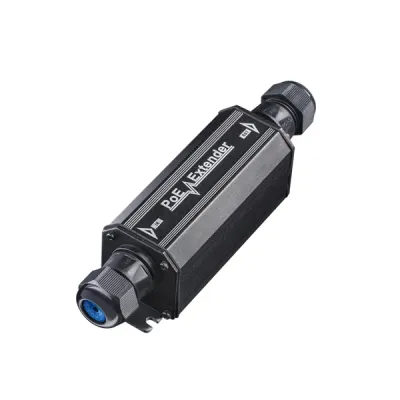

image of CUDY POE15 Outdoor Gigabit PoE Extender with Spec and Price in BDT

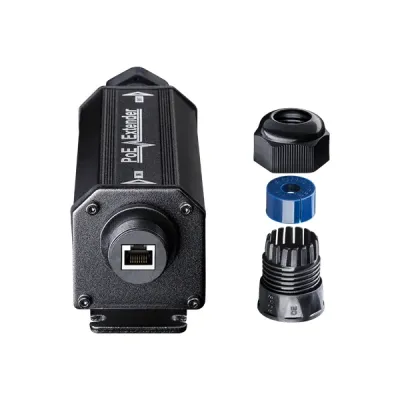

image of CUDY POE15 Outdoor Gigabit PoE Extender with Spec and Price in BDT

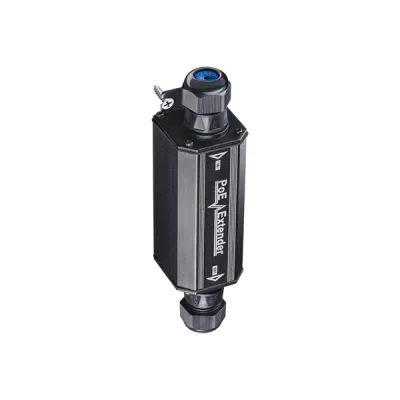

image of CUDY POE15 Outdoor Gigabit PoE Extender with Spec and Price in BDT
CUDY POE15 Outdoor Gigabit PoE Extender
CUDY POE15 Outdoor Gigabit PoE Extender
CUDY POE15 Outdoor Gigabit PoE Extender

CUDY POE15 Outdoor Gigabit PoE Extender

Key Features of POE15:
Up to 30W Max Power Output
10/100/1000 Mbps Ethernet Speed
IP67 Waterproof Rating for Outdoor Use
Compatible with IEEE 802.3af/at Standards
Operating Humidity: up to 90%, Non-Condensing
CUDY POE15 Outdoor Gigabit PoE Extender
Based on 0 reviews. - Write a review
৳6,000.00
Add to Cart
Buy Now
Specification Description Reviews
Specification:
Key Features
attr - Key Feature 1 > Up to 30W Max Power Output
attr -Key Feature 2 > 10/100/1000 Mbps Ethernet Speed
attr -Key Feature 3 > IP67 Waterproof Rating for Outdoor Use
attr -Key Feature 4 > Compatible with IEEE 802.3af/at Standards
attr -Key Feature 5 > Operating Humidity: up to 90%, Non-Condensing
CUDY PoE Injector
Model Version POE15 1.0
Protocols 802.3 Protocols:
- 802.3i 10 Mbps over Twisted Pair
- 802.3u 100 Mbps over Twisted Pair
- 802.3ab 1 Gbps over Twisted Pair
- 802.3x Flow Control
- 802.3af PoE
- 802.3at PoE
PoE Uplink Stream: 1× GbE, 802.3at/af
Uplink PIN Assignment: Mode A / Mode B
Downlink Stream: 1× GbE, 802.3at/af
Downlink Pin Assignment: Mode A

Transmission Distance:
- Cat. 5e or higher cable: 100 meters at Gigabit
- Note: Distance from extender to switch depends on switch capability.
Distance from extender to device follows extender rating
Power Power Input: ≥30W is recommended
Max Power Output: 30W
Max Power Output Note: The actual power output depends on input
Max Power Consumption (W): 2W
Reliability Power Protection:
- Polarity Protection
- Overvoltage Protection
- Short-Circuit Protection
- Automatic Voltage Regulation

EMS: IEC/EN 61000-4-2, Level 3 ESD: Contact: 6kV; Air: 8kV
Grounding Methods: Grounding Point

Environment:
- Ambient Operating Temperature: -25~55 ℃ (-13~131 ℉)
- Storage Temperature: -40~70 ℃ (-40~158 ℉)
- Operating Humidity: 10%~100% non-condensing
- Storage Humidity: 5%~95% non-condensing

Ingress Protection Rating: IP67
Certifications FCC, CE
Mechanical Install in a Daisy Chain: Up to 3 extenders in a chain

Installation:
- Desktop
- Wall-mount

Dimension:
- 185×45×45 mm
- 7.28×1.77×1.77 inches

Casing Material: Metal
Product Weight: 250 g (8.82 oz.)
Package Content POE15
Mounting Kit
Installation Guide
Warranty 01-Year Brand Warranty
Description:

CUDY POE15 Outdoor Gigabit PoE Extender

CUDY POE15 Outdoor Gigabit PoE Extender extends your PoE or PoE+ network connection by another 100 meters via a single Ethernet cable. The extender can be used outdoors or indoors and helps network devices like IP cameras and access points remotely from the data center without the need for additional power outlets or network switches. The POE15 supports IEEE 802.3af and 802.3at with the ability to supply a maximum of 30W of power. There is only one Gigabit Ethernet input and one Gigabit Ethernet output, with both data and power being sent through the same cable. This makes the product easy to install with the need for long cables.

With its weather-proof IP67-rated casing, the POE15 is built to withstand the elements. It operates in temperatures of -25°C to 55°C (-13°F to 131°F), and can tolerate dust, rain, and other harsh conditions. It can even be fixed on walls for secure fastening on buildings, poles, or other structures. CUDY POE15 Outdoor Gigabit PoE Extender suits long-range PoE links in security, business, and remote network applications. With secure performance and weather-resistant construction, it assists in expanding your network without additional power supplies or switches.

Buy CUDY POE15 Outdoor Gigabit PoE Extender in Bangladesh

You can buy your desired CUDY POE15 Outdoor Gigabit PoE Extender at Global Brand PLC. We are the authorized distributor of CUDY in Bangladesh. You buy online and enjoy free home delivery. You can also visit any of our branches near you.
