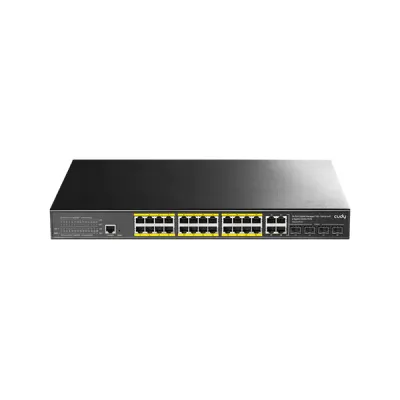

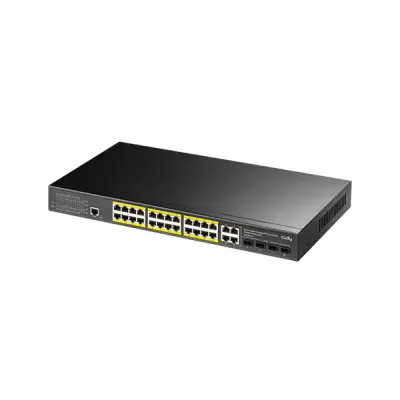

CUDY GS2028PS4 24-GbE PoE L2 Managed Switch
CUDY GS2028PS4 24-GbE PoE L2 Managed Switch

CUDY GS2028PS4 24-GbE PoE L2 Managed Switch

Key Features of GS2028PS4:
24× GbE with 802.3at/af PoE
4× GbE/SFP Combo Ports
300W Power Supply
L2 Managing Features
Desktop, Rack-Mount
CUDY GS2028PS4 24-GbE PoE L2 Managed Switch
Based on 0 reviews. - Write a review
৳29,500.00
Add to Cart
Buy Now
Specification Description Reviews
Specification:
Key Features
attr - Key Feature 1 > 24× GbE with 802.3at/af PoE
attr -Key Feature 2 > 4× GbE/SFP Combo Ports
attr -Key Feature 3 > 300W Power Supply
attr -Key Feature 4 > L2 Managing Features
attr -Key Feature 5 > Desktop, Rack-Mount
Cudy Switch
Model GS2028PS4 1.0
Interfaces Gigabit RJ45/SFP Combo Ports: 4
Gigabit RJ45 PoE Ports: #1~#24
Max Power on a Single PoE Port: 30W
PoE Port Notes: The PoE ports comply with IEEE 802.3at/af standards.
Console Ports: 1× RJ45

LED:
Power
System
Link/ACT of Each Ethernet Port

Power Input: AC Inlet
Physical Buttons: Reset Button
Package Content GS2028PS4
Power Cord
Mounting Kit
Installation Guide
Performance Copper Speed and Distance:
Cat. 3 or higher cable: 100 meters at 10 Mbps
Cat. 5 or higher cable: 100 meters at 100 Mbps
Cat. 5e or higher cable: 100 meters at Gigabit

Optical Spec and Distance: Depends on the Installed Optical Module
MAC Address Table: 8192
VLANs: 4096
Max Switching Capacity: 56 Gbps
Max Forwarding Rate: 41.664 Mpps
Jumbo Frame: 9.6 KB
Packet Buffer: 4 Mbit
Power Power Methods: AC
AC: 100-240V~, 50/60Hz

Max Power Consumption:
300W version: 300W
400W version: 400W

Max Power Excluding PoE: 12W
Reliability Grounding Methods: Three-Prong Plug

EMS:
IEC/EN 61000-4-2 ESD Level 4: Contact 8kV, Air 15kV
IEC/EN 61000-4-5 Surge Level X: CM 6kV, DM 4kV

Environment:
Operating Temperature: -10~50 ℃ (14~122 ℉)
Storage Temperature: -40~70 ℃ (-40~158 ℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~95% non-condensing
Switching 802.3 Protocols:
802.3x Flow Control
802.3i 10BASE-T
802.3u 100BASE-TX
802.3ab 1000BASE-T
802.3z 1000BASE-X
802.3az Power Saving
802.3ad Active Link Aggregation
802.3at PoE
802.3af PoE

802.1 Protocols:
802.1d: STP
802.1s: MSTP
802.1p: LAN Layer 2 QoS/CoS
802.1q: VLAN Bridge Operation
802.1w: RSTP
802.1ab: LLDP/LLDP-MED
802.1x User Authentication

Port Management:
PoE Priority
PoE Watchdog On/Off
PoE Wattage/Voltage/Current Status
PoE Time Schedule
Port On/Off
Port Negotiation Speed
Port Trunk (Static Aggregation)
802.3ad LACP (Active Aggregation)
Port Mirror
Data Rate Limit
Jumbo Frame Settings
Storm Control
Traffic Monitor
MAC Address Management
EEE (802.3az)

L2 Features:
IGMP Snooping
Loop Prevention
DHCP Snooping
STP/RSTP
LLDP Config and Neighbors
MTU VLAN
Port-Based VLAN
802.1Q VLAN
Voice VLAN
Protocol VLAN
Surveillance VLAN
DSCP QoS
802.1p QoS
Port-Based QoS
GVRP

L3 Features:
Static Routing
ARP Proxy
Dynamic ARP
Interface Configuration
IMPV Binding
IP Source Guard
UDLD
ACL (Layer 2 - Layer 4)
AAA
RADIUS
TACACS+
Management VLAN
Mechanical Dimension:
445×285×45 mm
17.52×11.22×1.77 inches

Product Weight: 3489 g (123.07 oz.)

Casing Material: Metal

Installation:
Desktop
Rackmount via Brackets
System Control Methods:
Config Web Page
SNMP V1/V2/V3
Telnet
SSH
RMON
Console

Firmware Upgrade: Local Upgrade
Reliability: Backup and Restore
Warranty 1-Year Brand Warranty
Description:

CUDY GS2028PS4 24-GbE PoE L2 Managed Switch

CUDY GS2028PS4 24-GbE PoE L2 Managed Switch is a reliable network solution for offices, surveillance systems, and business environments that need high-speed connections and power delivery over Ethernet. It features 24 Gigabit Ethernet ports with IEEE 802.3at/af PoE support and 4 Gigabit RJ45/SFP combo ports, offering flexibility for both data and fiber connections. Each PoE port supports up to 30W of power, making it suitable for IP cameras, VoIP phones, and access points. The built-in 300W power supply ensures stable performance, and the switch has a silent cooling system for quiet operation. It supports Layer 2 features and has a switching capacity of 56 Gbps and a forwarding rate of 41.664 Mpps, ensuring smooth data flow even under heavy loads.

The switch has a MAC address table of 8192, supports up to 4096 VLANs, and handles jumbo frames up to 9.6 KB with a 4 Mbit packet buffer. It includes 1 RJ45 console port for configuration and is powered through a standard AC connection (100–240V~, 50/60Hz). The maximum power consumption is 300W, or 12W excluding PoE devices. Designed for flexibility, the CUDY GS2028PS4 can be used on desktops or mounted in racks using the included mounting kit. The package also includes a power cord and installation guide. With a compact size of 445×285×45 mm and a 1-year brand warranty, this switch provides a simple and cost-effective solution for managing large networks with power needs.

Buy CUDY GS2028PS4 24-GbE PoE L2 Managed Switch in Bangladesh

You can buy your desired CUDY GS2028PS4 24-GbE PoE L2 Managed Switch at Global Brand PLC. We are the authorized distributor of CUDY in Bangladesh. You buy online and enjoy free home delivery. You can also visit any of our branches near you.
