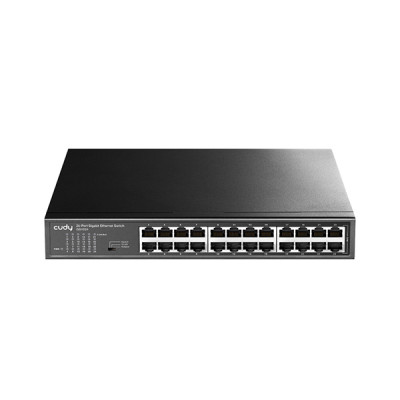

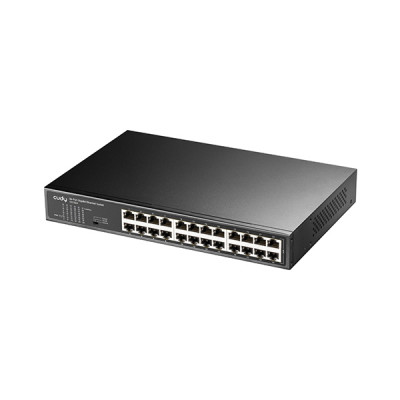

image of Cudy GS1024 24-Port Gigabit Ethernet Switch with Spec and Price in BDT

Cudy GS1024 24-Port Gigabit Ethernet Switch

Cudy GS1024 24-Port Gigabit Ethernet Switch

Key Features of GS1024:

Complies with IEEE 802.3, IEEE 802.3u, IEEE802.3x and IEEE 802.3ab standards
24x 10/100/1000Mbps Auto-Negotiation, Auto-MDI/MDIX ports
Non-blocking switching architecture enables full wire-speed packet forwarding and filtering
Store-and-Forward switching method
Supports 16K MAC address auto-learning and auto-agin

Based on 0 reviews. - Write a review

৳7,600.00

Add to Cart

Buy Now

Specification Description Reviews

Specification:

Key Features
attr - Key Feature 1 >	Complies with IEEE 802.3, IEEE 802.3u, IEEE802.3x and IEEE 802.3ab standards
attr -Key Feature 2 >	24x 10/100/1000Mbps Auto-Negotiation, Auto-MDI/MDIX ports
attr -Key Feature 3 >	Non-blocking switching architecture enables full wire-speed packet forwarding and filtering
attr -Key Feature 4 >	Store-and-Forward switching method
attr -Key Feature 5 >	Supports 16K MAC address auto-learning and auto-agin
Cudy Switch
Model	GS1024
Main Features	Speed: 1-24 Port: 10/100/1000Mbps Transmission Distance: 100Meter (328ft) Ethernet Standard: IEEE 802.3/802.3u / 802.3ab Switching capacity: 48G MACAddress: 8K MAC address table Transfer Rate: 14,880 pps for 10Mbps 148,800 pps for 100Mbps 148,8000 pps for 100Mbps
Hardware Features	VLAN (1-22Ports): Port Isolation: Downlink designated ports are isolated from each other, and only transmit data with the uplink port. Default: Standard Switch: All ports communicate freely Extend (1-22Ports): Link Extension: The specified port speed drops to 10Mbps, max transmission distance is 250 meters. LINK/ACT On: Green - The port is connecting Blinks: The port is receiving or transmitting data Off: The port is not linked successfully with the device
Power	Power Supply: Built-in power supply Voltage Range: Ac100~ 240V Consumption: <15W
Environment	Operating Temperature: 0℃ ~ 40℃ Storage Temperature: -40℃ ~70 Operating Humidity: 10%~85% non-condensing Storage humidity: 5%~85% non-condensing
Dimensions (LWH)	270 x 180 x 44mm
Warranty	2-Year Brand Warranty

Description:

Cudy GS1024 24-Port Gigabit Ethernet Switch

Cudy GS1024 24-Port Gigabit Ethernet Switch is a reliable networking solution designed to meet essential standards and provide efficient connectivity for a multitude of devices. Compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3x, and IEEE 802.3ab standards, this switch features 24 10/100/1000Mbps Auto-Negotiation, Auto-MDI/MDIX ports, offering smart switching between different hardware speeds. With a non-blocking switching architecture and Store-and-Forward switching method, the GS1024 enables full wire-speed packet forwarding and filtering, ensuring consistent and efficient data transfer. Supporting 16K MAC address auto-learning and auto-aging, the switch enhances overall network performance.

The switch provides versatile installation options, supporting both 11-inch Rack-mount Steel Case and Desktop installations, making it adaptable to various environments. It boasts high performance with auto-negotiation RJ-45 ports, catering to large file transfers and compatibility with 10/100/1000Mbps Ethernet devices. Featuring VLAN capabilities, the GS1024 includes Port Isolation for downlink designated ports, isolating them and allowing data transmission only with the uplink port. It also supports an Extend mode, where specified ports drop to 10Mbps, extending the maximum transmission distance to 250 meters.

The GS1024 incorporates power-saving features, utilizing green Ethernet technology to automatically power down idle ports and adjust power output based on Ethernet cable lengths. This design allows for power savings of up to 40%, contributing to energy efficiency without compromising performance. Backed by a 2-year brand warranty, the Cudy GS1024 24-Port Gigabit Ethernet Switch is a dependable and practical choice for expanding and optimizing your network. With essential features for efficient data transfer and a variety of installation options, it provides a reliable solution for diverse networking requirements.
