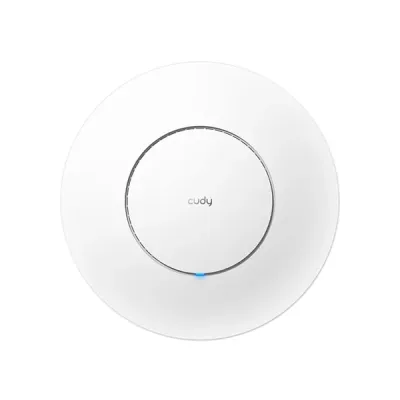

CUDY AP3600(INDOOR)-BE3600 2.5G Wi-Fi 7 Access Point
CUDY AP3600(INDOOR)-BE3600 2.5G Wi-Fi 7 Access Point

CUDY AP3600(INDOOR)-BE3600 2.5G Wi-Fi 7 Access Point

Key Features of AP3600(INDOOR):
Broadcom 2 GHz Quad-Core CPU
4-Stream Dual-Band Wi-Fi 7
2882 Mbps + 688 Mbps Wi-Fi
Covers 120 m² (1,300 ft²)
200 Connected Devices
CUDY AP3600(INDOOR)-BE3600 2.5G Wi-Fi 7 Access Point
Based on 0 reviews. - Write a review
৳0.00
Add to Cart
Specification Description Reviews
Specification:
Key Features
attr - Key Feature 1 > Broadcom 2 GHz Quad-Core CPU
attr -Key Feature 2 > 4-Stream Dual-Band Wi-Fi 7
attr -Key Feature 3 > 2882 Mbps + 688 Mbps Wi-Fi
attr -Key Feature 4 > Covers 120 m² (1,300 ft²)
attr -Key Feature 5 > 200 Connected Devices
Hardware Specifications
CPU CPU Details: 2.0 GHz Quad-Core, ARM Cortex-A7
Memory/Storage Flash/ROM: 128 MB (1 Gbit) NAND
DDR/RAM: 512 MB (4 Gbit) DDR3L
Wireless 5 GHz Wi-Fi Speed: 2882 Mbps
2.4 GHz Wi-Fi Speed: 688 Mbps
5 GHz Wi-Fi Streams: 2T2R (2×2 MIMO)
2.4 GHz Wi-Fi Streams: 2T2R (2×2 MIMO)
Wi-Fi Antennas: 4× Internal

FEM or PA/LNA:
- 5 GHz: 2× External
- 2.4 GHz: 2× Internal

Beamforming: True

Range Performance:
Max: 220 m (722 ft)
Tested in open-space environments with minimal interference. Actual WiFi range may vary depending on layout and wall materials.
Refer to the Wall Performance specifications for placement suggestions.

Wall Performance:
Two wooden walls with thickness < 10 cm (4'')
One concrete wall with thickness < 20 cm (7'') or two concrete walls with thickness < 10 cm (4'')
Interfaces 2.5G RJ45 Ports: 1
Gigabit RJ45 Ports: 1
Ethernet Notes: Accepts PoE powering
LED: System
Physical Buttons: Reset Button

Power Input:
- DC Jack
- PoE via Ethernet Port
Power Power Methods:
- DC
- Passive PoE
- 802.3at/af PoE

DC Input: 12V 1A
Passive PoE Input: 48 ~ 57V

Power Adapter:
- AP3600 | DC Adapter in the box:
- Input: 100 ~ 240 V, 50/60 Hz AC
- Output: 12V 1A DC

- AP3600_P | PoE Adapter in the box:
- Input: 100 ~ 240 V, 50/60 Hz AC
- Output: 48V Passive PoE

Max Power Consumption (W): 10W
Reliability Advanced: Hardware Watchdog
EMC: (ESD) Contact: 4kV; Air: 8kV

Environment:
- Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
- Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
- Humidity: 10% ~ 90% non-condensing
- Storage Humidity: 5% ~ 95% non-condensing
Mechanical Installation:
- Wall-mount
- Ceiling-mount

Dimension:
231.9×231.9×57.1 mm
9.13×9.13×2.25 inches

Product Weight: 435.0 g (15.34 oz.)
Software Specifications
Wireless Wi-Fi Standards: Wi-Fi 7
Max Wi-Fi Modulation: 4K-QAM

Wi-Fi Efficiency:
- MLO
- MRU
- Puncturing
- OFDMA
- MU-MIMO
- BSS Color

Max Capacity: 512
Recommended Client Upper Limit: 200
Max Wi-Fi Channel Width: 160 MHz
Wi-Fi Security: WPA/WPA2/WPA3
WPS: True
General Operation Modes:
- Wi-Fi Router
- Access Point

Mesh: Cudy Mesh

Mesh Backhaul:
- Wireless Backhaul
- Wired Backhaul

Multi-Band Backhaul: True

WAN Mode:
- DHCP
- Static IP
- PPPOE
- PPTP
- L2TP
Network QoS: Per-User Rate Limiting

DHCP:
- Address Reservation
- DHCP Client List
- Server

IP Versions: IPv4/IPv6

IPv6 Protocols:
- Relay
- Dynamic (SLAAC/DHCPv6)
- Static (Fixed IP)
- Passthrough
- 464XLAT
- MAP-E
- DS-Lite

IPTV/VLAN:
- Bridge
- Tag VLAN
- VoIP VLAN
- IPTV VLAN

TTL Customization:
- Extend
- Spoof
- Custom

IGMP:
- IGMP Proxy
- IGMP Snooping

Forwarding:
- Port Forwarding
- Port Triggering
- UPnP
- DMZ

Firewall:
- SPI Firewall
- DoS Protection
- Block PING

Application Layer Gateway:
- IPSec Passthrough
- L2TP Passthrough
- PPTP Passthrough
- FTP Passthrough
- TFTP Passthrough
- H323 Passthrough
- SIP Passthrough
- RTSP Passthrough
Utilities Captive Portal: True

VPN Server:
- WireGuard
- OpenVPN
- IPsec
- Zerotier
- PPTP
- L2TP

VPN Client:
- WireGuard
- OpenVPN
- IPsec
- Zerotier
- PPTP
- L2TP

DNS Options:
- DNS over TLS
- Manual DNS
- Rebind Protection
- Override Clients' DNS

DNS over TLS Providers:
- Cloudflare
- Google
- Quad9
- Custom

Wake on LAN: True
Online Detection: True
Management All Devices Management:
- Wi-Fi Time Schedule
- MAC Filter
- IP/MAC Binding

Per-Devices Management:
- Internet On/Off
- VPN On/Off
- Online Time Schedule
- Device Rename

Content Management:
- Domain Filter
- IP Filter
System LED Control: True

Local Control Method:
- Config Web Page
- App Control

Remote Control Method:
- Config Page via HTTPS
- App Control
- TR069/TR098/TR111/TR143/TR181

Firmware Upgrade:
- Local Update
- App (Over the Air)
- Online Update

Reliability:
- Timed Reboot
- Backup and Restore

Diagnostic Tools:
- Diagnosis
- Ping
- Traceroute
- NSLookup
- System Log

Languages:
- English
- Bengali
- Catalan
- Czech
- German
- Greek
- Spanish
- French
- Hebrew
- Croatian
- Hungarian
- Italian
- Japanese
- Khmer
- Korean
- Dutch
- Norwegian
- Polish
- Portuguese
- Romanian
- Russian
- Slovak
- Swedish
- Thai
- Turkish
- Ukrainian
- Vietnamese
- Simplified Chinese
- Traditional Chinese
Dashboard Panel:
- Internet Status
- Mesh Status
- Devices Management
- WAN Status
- LAN Status
- Wi-Fi Status
- VPN Status
- DHCP Server Status
- System Version

Charts:
- Mesh Topology
- Internet Speed
- Wi-Fi Speed
Additional

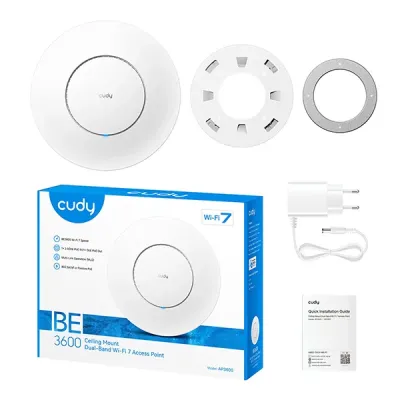

Included in the Box AP3600
Power Adapter
Mounting Kit
Ethernet Cable
Installation Guide
Certification FCC, CE
Warranty
Warranty Details 01-Year Brand Warranty
Description:

CUDY AP3600(INDOOR)-BE3600 2.5G Wi-Fi 7 Access Point Price in Bangladesh

CUDY AP3600(INDOOR)-BE3600 2.5G Wi-Fi 7 Access Point

CUDY AP3600(INDOOR)-BE3600 2.5G Wi-Fi 7 Access Point is suitable for shopping malls, offices, campuses, and other high-density locations in need of fast, stable, and wide network coverage. Powered by a Broadcom 2 GHz quad-core CPU and 4-stream dual-band Wi-Fi 7, it delivers wireless speeds of 2882 Mbps on the 5 GHz band and 688 Mbps on the 2.4 GHz band. This access point can handle up to 200 connected devices and an area of up to 120 m² (1,300 ft²), making it a suitable choice for both business and enterprise settings.

The unit features a single shielded 2.5GbE PoE IN port for receiving data and power, and a single shielded GbE PoE Out port for powering another device. It offers multiple power supply options, including 802.3at PoE, passive PoE, and DC input, to ensure flexibility in a range of installation environments. The AP can be mounted on a wall or ceiling and blends into indoor environments while delivering uniform connectivity across the coverage area. Stable long-term performance is assured through embedded features such as watchdog and timed reboot, which recover automatically from any potential issues. The access point employs interference-resistant technology to ensure seamless connections even in crowded settings with multiple devices.

Its network and security management features allow administrators to manage connections, increase efficiency, and provide secure internet access. It supports high-density device connection and offers seamless video streaming, online working, and real-time communication for all clients connected to it. The CUDY AP3600(INDOOR)-BE3600 2.5G Wi-Fi 7 Access Point combines high-speed performance, multi-client capability, and mounting ease, making it a hassle-free choice for wide spaces in need of constant wireless coverage and fast network connection.

Buy CUDY AP3600(INDOOR)-BE3600 2.5G Wi-Fi 7 Access Point in Bangladesh

You can buy your desired CUDY AP3600(INDOOR)-BE3600 2.5G Wi-Fi 7 Access Point at Global Brand PLC. We are the authorized distributor of Cudy in Bangladesh. You buy online and enjoy free home delivery. You can also visit any of our branches near you.
