CUDY AP3000 Wall AX3000 Dual Band Wall-Plate Wi-Fi 6 Access Point
Key Features of AP3000 Wall:4-Stream Dual-Band Wi-Fi 6 |
2402 Mbps + 574 Mbps Wi-Fi |
1.3 GHz Dual-Core CPU |
Covers 60 m² (650 ft²) with up to 60 Devices Connected |
PoE Passthrough, Watchdog, Schedule Reboot |
Key Features | |
attr - Key Feature 1 > | 4-Stream Dual-Band Wi-Fi 6 |
attr -Key Feature 2 > | 2402 Mbps + 574 Mbps Wi-Fi |
attr -Key Feature 3 > | 1.3 GHz Dual-Core CPU |
attr -Key Feature 4 > | Covers 60 m² (650 ft²) with up to 60 Devices Connected |
attr -Key Feature 5 > | PoE Passthrough, Watchdog, Schedule Reboot |
Hardware Specifications | |
CPU | CPU Details: 1.3 GHz Dual-Core CPU |
Memory/Storage | Flash/ROM: 128 MB (1 Gbit) NAND DDR/RAM: 256 MB (2 Gbit) DDR3 |
Wireless | 5 GHz Wi-Fi Speed: 2402Mbps 2.4 GHz Wi-Fi Speed: 574 Mbps 5 GHz Wi-Fi Streams: 2T2R (2×2 MIMO) with an Extra Stream 2.4 GHz Wi-Fi Streams: 2T2R (2×2 MIMO) Wi-Fi Antennas: 3× Internal 5 GHz Antenna Gain Max: 7.08dBi (US), 6.52dBi (EU) 2.4 GHz Antenna Gain Max: 3.17dBi FEM or PA/LNA: - 5 GHz: 3× Internal - 2.4 GHz: 2× Internal Beamforming: True Range Performance: Max: 80 m (262 ft) Tested in open-space environments with minimal interference. Actual WiFi range may vary depending on layout and wall materials. Refer to the Wall Performance specifications for placement suggestions. Wall Performance: Two wooden walls with thickness < 10 cm (4'') One concrete wall with thickness < 20 cm (7'') |
Interfaces | Gigabit RJ45 Ports: 5 Ethernet Notes: The port on the back accepts PoE powering. One port on the front bottom supports PoE passthrough LED: System Physical Buttons: - Reset Button - LED On/Off Button (Configurable to control LED and Wi-Fi) Power Input: PoE via Ethernet Port |
Power | Power Methods: - Passive PoE - 802.3at/af PoE Passive PoE: 48V Max Power Consumption (W): 12 W (48 V PoE) Idle Power Consumption (W): 5 W (48 V PoE) |
Reliability | Advanced: Hardware Watchdog EMS: ESD: Contact: 4kV; Air: 8kV Environment: - Operating Temperature: 0 ℃ ~ 40 ℃ (14 ℉ ~149 ℉) - Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉) - Operating Humidity: 10% ~ 90% non-condensing - Storage Humidity: 5% ~ 90% non-condensing |
Mechanical | Installation: Wall-mount Dimension: 143×86×27.6 mm 5.63×3.39×1.09 inches Product Weight: 298.6 g (10.53 oz.) |
Software Specifications | |
Wireless | Wi-Fi Standards: Wi-Fi 6 Max Wi-Fi Modulation: 1024-QAM Wi-Fi Efficiency: - OFDMA - MU-MIMO - BSS Color Max Capacity: 256 Recommended Client Upper Limit: 60 Max Wi-Fi Channel Width: 160 MHz Wi-Fi Security: WPA/WPA2/WPA3 Multi-SSID (Max Number): 8 SSIDs (Up to 4 SSIDs on each band) |
General | Operation Modes: Access Point Mesh: Cudy Mesh Mesh Backhaul: - Wireless Backhaul - Wired Backhaul Multi-Band Backhaul: True |
Network | DHCP: Server IP Versions: IPv4 IGMP: IGMP Snooping |
Utilities | Wake on LAN: True |
Management | All Devices Management: Wi-Fi Time Schedule |
System | LED Control: True Local Control Method: - Config Web Page - App Control Remote Control Method: - Config Page via HTTPS - App Control Firmware Upgrade: - Local Update - App (Over the Air) - Online Update Reliability: - Timed Reboot - Backup and Restore Diagnostic Tools: - Diagnosis - Ping - Traceroute - NSLookup - System Log Languages: - English - Bengali - Catalan - Czech - German - Greek - Spanish - French - Hebrew - Croatian - Hungarian - Italian - Japanese - Khmer - Korean - Dutch - Norwegian - Polish - Portuguese - Romanian - Russian - Slovak - Swedish - Thai - Turkish - Ukrainian - Vietnamese - Simplified Chinese - Traditional Chinese |
Dashboard | Panel: - Internet Status - Mesh Status - Device Management - LAN Status - Wi-Fi Status - DHCP Server Status - System Version - Connected Devices Charts: - Mesh Topology - Wi-Fi Speed |
Additional | |
Included in the Box | AP3000 Wall Mounting Kit Installation Guide |
Certification | FCC, CE |
CUDY AP3000 Wall AX3000 Dual Band Wall-Plate Wi-Fi 6 Access Point
CUDY AP3000 Wall AX3000 Dual Band Wall-Plate Wi-Fi 6 Access Point is a wireless in-wall access point for hotels, apartments, dorms, and office rooms. It provides strong, room-to-room coverage with dual-band Wi-Fi 6, supporting up to 60 connected devices across 60 square meters (650 square feet). Based on a 1.3 GHz dual-core processor, the AP3000 provides reliable and rapid performance. It is compatible with 4-stream dual-band Wi-Fi 6, which operates at up to 2402 Mbps on the 5 GHz band and 574 Mbps on 2.4 GHz. With 160 MHz bandwidth and 1024-QAM, it provides up to 2.5 times the speed of previous-generation Wi-Fi 5 APs, which makes it perfect for 4K streaming, online conferencing, and smart devices.

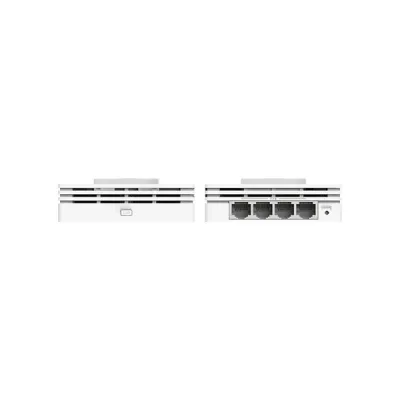

There are five Gigabit Ethernet ports on this device: 1× PoE in, 1× PoE out, and 3× standard LAN ports. The PoE passthrough lets you power another device like a VoIP phone, IP camera, or IPTV box without extra wiring. It supports 802.3af/at as well as passive PoE standards for streamlined installation. Designed for today's environments, the AP3000 features a low-profile, wall-mount design that easily integrates into any setting. It's ideal for room-based applications and prevents signal overlap while delivering each room or user an exclusive, high-speed connection.
With Watchdog support, scheduled reboot, and improved network functions, the AP is reliable and stays online with minimal human interaction. It is easy to install and manage, and is appropriate for both consumer and business settings. CUDY AP3000 Wall offers solid and easy Wi-Fi connection, perfect for rooms that need stable and secure internet by room, and accommodates multiple devices with intelligent network management.
