CUDY AP1300 Wall AC1200 Dual Band Wall-Plate Access Point
Key Features of AP1300 Wall:4-Stream Dual-Band Wi-Fi 5 Access Point |
Coverage: Covers up to 60 m² (650 ft²) |
867 Mbps + 300 Mbps Wi-Fi |
Watchdog, Schedule Reboot |
Warranty: 01-Year Brand Warranty |
Key Features | |
attr - Key Feature 1 > | 4-Stream Dual-Band Wi-Fi 5 Access Point |
attr -Key Feature 2 > | Coverage: Covers up to 60 m² (650 ft²) |
attr -Key Feature 3 > | 867 Mbps + 300 Mbps Wi-Fi |
attr -Key Feature 4 > | Watchdog, Schedule Reboot |
attr -Key Feature 5 > | Warranty: 01-Year Brand Warranty |
Hardware Specifications | |
CPU | CPU Details: 880 MHz Dual-Core CPU |
Memory/Storage | Flash/ROM: 16 MB (128 Mbit) NOR DDR/RAM: 128 MB (1 Gbit) DDR3 |
Wireless | 5 GHz Wi-Fi Speed: 867 Mbps 2.4 GHz Wi-Fi Speed: 300 Mbps 5 GHz Wi-Fi Streams: 2T2R (2×2 MIMO) 2.4 GHz Wi-Fi Streams: 2T2R (2×2 MIMO) Wi-Fi Antennas: 2× Internal 5 GHz Antenna Gain Max: 5.6 dBi 2.4 GHz Antenna Gain Max: 5.0 dBi FEM or PA/LNA: - 5 GHz: 2× Internal - 2.4 GHz: 2× Internal Beamforming: True Range Performance: Max: 80 m (262 ft) Tested in open-space environments with minimal interference. Actual WiFi range may vary depending on layout and wall materials. Refer to the Wall Performance specifications for placement suggestions. Wall Performance: Two wooden walls with thickness < 10 cm (4'') One concrete wall with thickness < 20 cm (7'') |
Interfaces | Gigabit RJ45 Ports: 5 Ethernet Notes: Accepts PoE powering LED: System Physical Buttons: - Reset Button - LED On/Off Button (Configurable to control LED and Wi-Fi) Power Input: PoE via Ethernet Port |
Power | Power Methods: - Passive PoE - 802.3at/af PoE Passive PoE: 48V Max Power Consumption (W): - Max (PoE): 12 W - Max (DC): NA Idle Power Consumption (W): 4 W |
Reliability | Advanced: Hardware Watchdog EMS: ESD: Contact: 4kV; Air: 8kV Environment: - Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉) - Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉) - Humidity: 10% ~ 90% non-condensing - Storage Humidity: 5% ~ 95% non-condensing |
Mechanical | Installation: Wall-mount Dimension: 143×86×27.6 mm 5.63×3.39×1.09 inches Product Weight: 261.2 g (9.21 oz.) |
Software Specifications | |
Wireless | Wi-Fi Standards: Wi-Fi 5 Max Wi-Fi Modulation: 256-QAM Wi-Fi Efficiency: MU-MIMO Wi-Fi Efficiency Note: MU-MIMO available on 5 GHz Max Capacity: 128 Recommended Client Upper Limit: 40 Max Wi-Fi Channel Width: 80 MHz Wi-Fi Security: WPA/WPA2/WPA3 Multi-SSID (Max Number): 8 SSIDs (Up to 4 SSIDs on each band) |
General | Operation Modes: Access Point Mesh: Cudy Mesh Mesh Backhaul: - Wireless Backhaul - Wired Backhaul Multi-Band Backhaul: True |
Network | DHCP: Server IP Versions: IPv4 IGMP: IGMP Snooping |
Utilities | Captive Portal: True Captive Portal Providers: HotspotSystem, Iron Wi-Fi, ObiFi, Vulacoin, WorldSpot.net, WiFiMAX, Manual Wake on LAN: True |
Management | All Devices Management: Wi-Fi Time Schedule |
System | LED Control: True Local Control Method: - Config Web Page - App Control Remote Control Method: - Config Page via HTTPS - App Control Firmware Upgrade: - Local Update - App (Over the Air) - Online Update Reliability: - Timed Reboot - Backup and Restore Diagnostic Tools - Diagnosis - Ping - Traceroute - NSLookup - System Log Languages: - English - Bengali - Catalan - Czech - German - Greek - Spanish - French - Hebrew - Croatian - Hungarian - Italian - Japanese - Khmer - Korean - Dutch - Norwegian - Polish - Portuguese - Romanian - Russian - Slovak - Swedish - Thai - Turkish - Ukrainian - Vietnamese - Simplified Chinese - Traditional Chinese |
Dashboard | Panel: - Internet Status - Mesh Status - Device Management - LAN Status - Wi-Fi Status - DHCP Server Status - System Version - Connected Devices Charts: - Mesh Topology - Wi-Fi Speed |
Additional | |

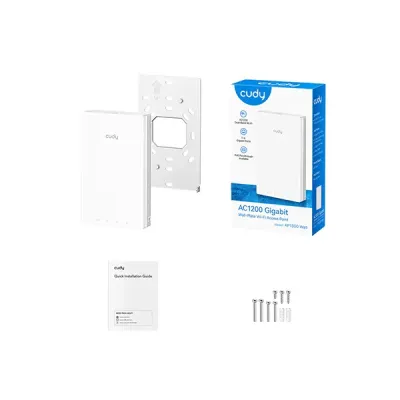

Included in the Box | AP1300 Wall Installation Guide Mounting Kit |
Certification | FCC, CE |
Warranty | |
Warranty Details | 01-Year Brand Warranty |
CUDY AP1300 Wall AC1200 Dual Band Wall-Plate Access Point
CUDY AP1300 Wall AC1200 Dual Band Wall-Plate Access Point is a compact Wi-Fi solution designed for hotels, dormitories, apartments, and offices. With a sleek, low-profile design, it fits easily into modern spaces while delivering strong and secure Wi-Fi to each room or unit. This access point supports dual-band Wi-Fi 5 with speeds of up to 867 Mbps on 5 GHz and 300 Mbps on 2.4 GHz, making it suitable for 4K streaming, video calls, and web browsing. It covers up to 60 square meters (650 square feet) and supports up to 40 connected devices at once.

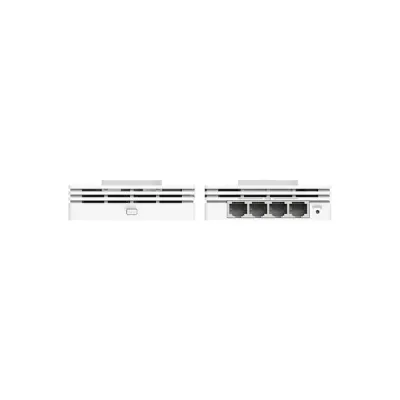

The AP1300 Wall includes a built-in 5-port Gigabit Ethernet switch with 1× PoE in, 1× PoE out, and 3× standard GbE ports. The PoE passthrough feature allows you to power devices like IP phones, VoIP systems, or IPTV directly through the access point, simplifying wiring and saving space. It supports both 802.3af/at and passive PoE standards, allowing flexible deployment using a PoE switch or injector. Built-in tools like a watchdog and scheduled reboot features help keep the network running without manual resets or restarts.
Ideal for hospitality environments, the AP1300 Wall allows for individual room-based Wi-Fi setups with no signal overlap between rooms. This ensures fast, private, and secure internet for each guest or user. It also suits office and education settings, where reliable and separate network access is required for each room or workspace. CUDY AP1300 Wall is simple to install and manage, offering stable performance and multiple connection options. Whether you're supporting guests, staff, or students, it helps build a flexible and clean network layout with strong coverage and smart features.
Buy CUDY AP1300 Wall AC1200 Dual Band Wall-Plate Access Point in Bangladesh
You can buy your desired CUDY AP1300 Wall AC1200 Dual Band Wall-Plate Access Point at Global Brand PLC. We are the authorized distributor of CUDY in Bangladesh. You buy online and enjoy free home delivery. You can also visit any of our branches near you.
What is the CUDY AP1300 Wall AC1200 Dual Band Wall-Plate Access Point price in Bangladesh?
CUDY AP1300 Wall AC1200 Dual Band Wall-Plate Access Point price in Bangladesh is BDT ৳6,800.00 . At Global Brand, we are committed to providing our customers with the best shopping experience. With our affordable prices and top-notch customer service, you can be confident that you're making the right choice. So what are you waiting for? Buy online CUDY AP1300 Wall AC1200 Dual Band Wall-Plate Access Point for you and enjoy a top-class experience. .
Where to buy authentic CUDY AP1300 Wall AC1200 Dual Band Wall-Plate Access Point in Bangladesh?
You can buy 100% authentic CUDY AP1300 Wall AC1200 Dual Band Wall-Plate Access Point from our online shop or in-person at our branch. Shop with confidence and take advantage of free delivery when you buy from our online shop.
By visiting this page you can explore about Features, Specification, Description, Reviews & Latest price of CUDY AP1300 Wall AC1200 Dual Band Wall-Plate Access Point in BDT as well you can buy online AP1300 Wall with best price. The CUDY AP1300 Wall AC1200 Dual Band Wall-Plate Access Point is available in Bangladesh for the following price: ৳6,800.00 .Take advantage of our free delivery and don't miss out on the opportunity to buy AP1300 Wall online at the best price in Bangladesh!
