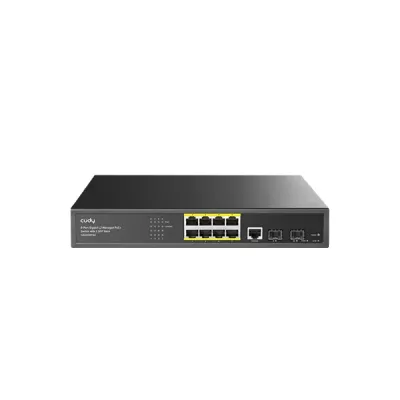

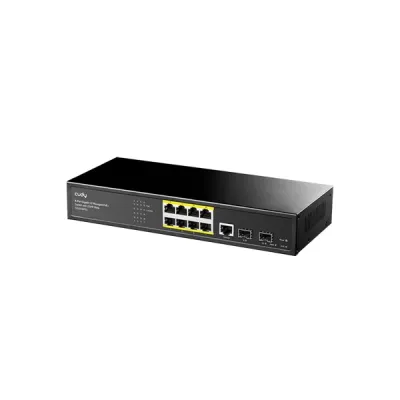

Cudy 8-GbE PoE L2 Managed Switch with 2-SFP
Cudy 8-GbE PoE L2 Managed Switch with 2-SFP
Cudy 8-GbE PoE L2 Managed Switch with 2-SFP
Cudy 8-GbE PoE L2 Managed Switch with 2-SFP

Cudy 8-GbE PoE L2 Managed Switch with 2-SFP

Key Features of GS2008PS2:
8× GbE with 802.3at/af Mode A PoE
2×1.25G SFP
130W Power Supply
Silent Cooling System
Desktop, Rack-Mount
Cudy 8-GbE PoE L2 Managed Switch with 2-SFP
৳14,600.00
Specification:
Key Features
attr - Key Feature 1 > 8× GbE with 802.3at/af Mode A PoE
attr -Key Feature 2 > 2×1.25G SFP
attr -Key Feature 3 > 130W Power Supply
attr -Key Feature 4 > Silent Cooling System
attr -Key Feature 5 > Desktop, Rack-Mount
Cudy Switch
Model GS2008PS2 1.0
Network Protocol 802.3 Protocols:
- 802.3i 10BASE-T
- 802.3u 100BASE-T
- 802.3ab 1000BASE-T
- 802.3z 1.25 Gbps over Fiber
- 802.3x Flow Control
- 802.3af PoE
- 802.3at PoE
Interfaces 1.25G SFP Slots: 2
Gigabit RJ45 PoE Ports: 8
Max Power on a Single PoE Port: 30W
PoE Port Notes: PoE ports support 802.3at/af standards.
Shielded RJ45 Port: True
Console Ports: 1× RJ45
LED:
- Power
- System
- Link/ACT of Each Ethernet Port
- PoE Status of Each PoE Port

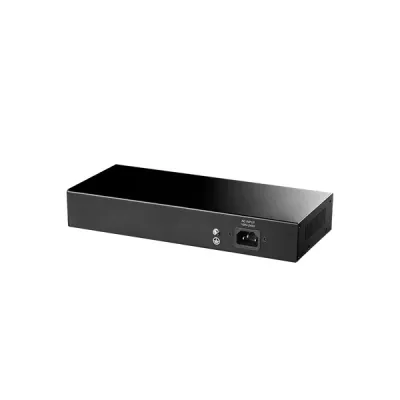

Power Input AC Inlet
Physical Buttons: Reset Button
Mechanical Dimension:
- 261×181×44 mm
- 10.28×7.13×1.73 inches

Product Weight: 1200 g (42.33 oz.)
Casing Material: Metal

Installation:
- Desktop
- Rackmount via Brackets

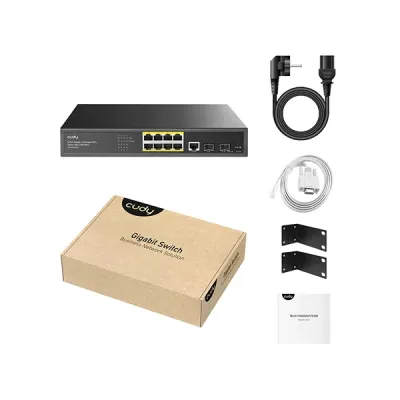

Package Content GS2008PS2
Power Cord
Mounting Kit
Installation Guide
Performance Copper Speed and Distance:
- Cat. 3 or higher cable: 100 meters at 10 Mbps
- Cat. 5 or higher cable: 100 meters at 100 Mbps
- Cat. 5e or higher cable: 100 meters at Gigabit

Optical Spec and Distance: Depends on the Installed Optical Module
MAC Address Table: 8192
VLANs: 4096
Max Switching Capacity: 20 Gbps
Max Forwarding Rate: 14.88 Mpps
Jumbo Frame: 9.6 KB
Packet Buffer: 4 Mbit
Power Power Methods: AC
AC: 100-240V~, 50/60Hz
Max Power Consumption: 130W
Max Power Excluding PoE: 12W
Reliability Grounding Methods: Three-Prong Plug

Environment:
- Operating Temperature: -10~50 ℃ (14~122 ℉)
- Storage Temperature: -40~70 ℃ (-40~158 ℉)
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 5%~95% non-condensing
Switching 802.3 Protocols:
- 802.3i 10BASE-T
- 802.3u 100BASE-TX
- 802.3ab 1000BASE-T
- 802.3z 1000BASE-X
- 802.3x Flow Control
- 802.3af PoE
- 802.3at PoE

802.1 Protocols:
- 802.1d: STP
- 802.1s: MSTP
- 802.1p: LAN Layer 2 QoS/CoS
- 802.1q: VLAN Bridge Operation
- 802.1w: RSTP
- 802.1ab: LLDP/LLDP-MED
- 802.1x User Authentication

Port Management:
- PoE Priority
- PoE Watchdog On/Off
- PoE Wattage/Voltage/Current Status
- PoE Time Schedule
- Port On/Off
- Port Negotiation Speed
- Port Trunk (Static Aggregation)
- 802.3ad LACP (Active Aggregation)
- Port Mirror
- Data Rate Limit
- Jumbo Frame Settings
- Storm Control
- Traffic Monitor
- MAC Address Management
- EEE (802.3az)

L2 Features:
- IGMP Snooping
- Loop Prevention
- DHCP Snooping
- STP/RSTP
- LLDP Config and Neighbors
- MTU VLAN
- Port-Based VLAN
- 802.1Q VLAN
- Voice VLAN
- Protocol VLAN
- Surveillance VLAN
- DSCP QoS
- 802.1p QoS
- Port-Based QoS
- GVRP

L3 Features:
- Static Routing
- ARP Proxy
- Dynamic ARP
- Interface Configuration
- IMPV Binding
- IP Source Guard
- UDLD
- ACL (Layer 2 - Layer 4)
- AAA
- RADIUS
- TACACS+
- Management VLAN
System Control Methods:
- Config Web Page
- SNMP V1/V2/V3
- Telnet
- SSH
- RMON

Firmware Upgrade: Local Upgrade
Reliability: Backup and Restore
Warranty 01-Year Brand Warranty
Description:

Cudy 8-GbE PoE L2 Managed Switch with 2-SFP

Cudy 8-GbE PoE L2 Managed Switch with 2-SFP is a simple yet effective network solution for offices, small businesses, and professional installations demanding more management and solid performance. The switch features 8 Gigabit Ethernet ports with IEEE 802.3at/af Mode A PoE support, providing up to 30W on each port and 130W of total power budget. It can power IP cameras, VoIP telephones, wireless access points, and other PoE devices through a single Ethernet cable.

The switch comes with 2 SFP ports (1.25G) for fiber high-speed interfaces that are convenient to expand your network to a longer distance or to your backbone switch or main router. The Layer 2 (L2) management settings offer better control of the network so that users can allocate VLANs, QoS, link aggregation, and more. Such settings are useful in improving the security and performance of the network in schools or office environments. Being a fanless device, the switch is silent, thus a good fit for locations where minimal noise is important, like offices or classrooms. The switch features a metal case and accommodates desktop or rack-mount settings. Its dimensions are 261×181×44 mm (10.28×7.13×1.73″), which can easily fit in most racks or workspaces.

The switch is easy to use, with plug-and-play support for simple setups, but also delivers advanced capabilities through its management interface for professional users. It gives you both data and power on a single line, saving time, space, and setup cost. Cudy's L2 Managed PoE Switch is for users who require stable PoE power, professional functions, and quiet operation within a single compact and cost-effective device.

Buy Cudy 8-GbE PoE L2 Managed Switch with 2-SFP in Bangladesh

You can buy your desired Cudy 8-GbE PoE L2 Managed Switch with 2-SFP at Global Brand PLC. We are the authorized distributor of CUDY in Bangladesh. You buy online and enjoy free home delivery. You can also visit any of our branches near you.
