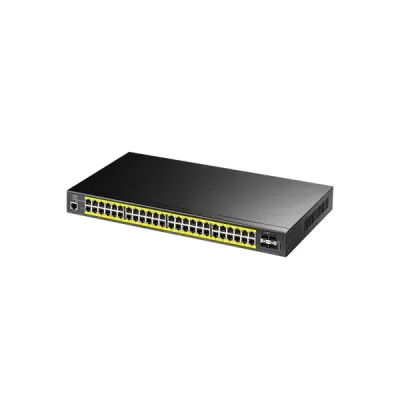

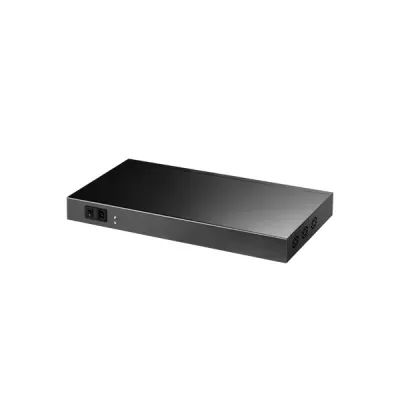

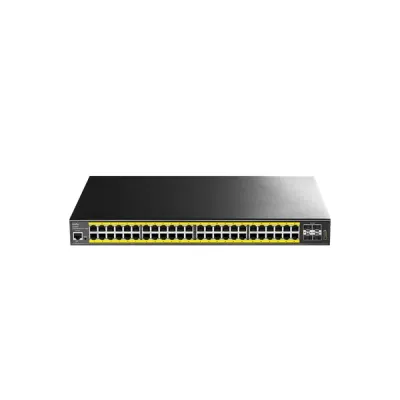

CUDY GS2048PS4-48 Port Gigabit PoE++ L2 Managed Switch
CUDY GS2048PS4-48 Port Gigabit PoE++ L2 Managed Switch
CUDY GS2048PS4-48 Port Gigabit PoE++ L2 Managed Switch
CUDY GS2048PS4-48 Port Gigabit PoE++ L2 Managed Switch

CUDY GS2048PS4-48 Port Gigabit PoE++ L2 Managed Switch

Key Features of GS2048PS4:
44× GbE 802.3at/af + 4× GbE 802.3bt
Silent Cooling System.
720W Power Supply
L2 Managing Features
Desktop, Rack-Mount
CUDY GS2048PS4-48 Port Gigabit PoE++ L2 Managed Switch
Based on 0 reviews. - Write a review
৳92,000.00
Add to Cart
Specification Description Reviews
Specification:
Key Features
attr - Key Feature 1 > 44× GbE 802.3at/af + 4× GbE 802.3bt
attr -Key Feature 2 > Silent Cooling System.
attr -Key Feature 3 > 720W Power Supply
attr -Key Feature 4 > L2 Managing Features
attr -Key Feature 5 > Desktop, Rack-Mount
Cudy Switch
Model GS2048PS4 1.0
Network Protocol 802.3 Protocols:
- 802.3i 10BASE-T
- 802.3u 100BASE-T
- 802.3ab 1000BASE-T
- 802.3z 1.25 Gbps over Fiber
- 802.3x Flow Control
- 802.3af PoE
- 802.3at PoE
Interfaces 10G SFP+ Slots: 4
Gigabit RJ45 PoE Ports: 44

Max Power on a Single PoE Port:
- Port 1~4: 90W
- Port 5~44: 30W

PoE Port Notes: PoE port #1-#4 support 802.3bt/at/af, and the rest support 802.3at/af.
Shielded RJ45 Port: True
Console Ports: 1× RJ45

LED:
- Power
- PoE Status of Each PoE Port

Power Input: AC Inlet
Physical Buttons: Reset Button

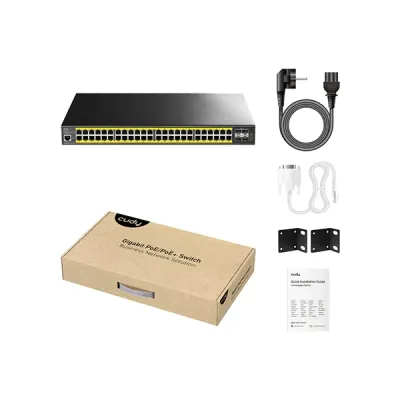

Package Content GS2048PS4
Power Cord
Mounting Kit
Installation Guide
Performance Copper Speed and Distance:
- Cat. 3 or higher cable: 100 meters at 10 Mbps
- Cat. 5 or higher cable: 100 meters at 100 Mbps
- Cat. 5e or higher cable: 100 meters at Gigabit

Optical Spec and Distance: Depends on the Installed Optical Module
MAC Address Table: 32768
VLANs: 4096
Max Switching Capacity: 176 Gbps
Max Forwarding Rate: 130.944 Mpps
Jumbo Frame: 12 KB
Packet Buffer: 16 Mbit
Power Power Methods: AC
AC: 100-240V~, 50/60Hz
Max Power Consumption: 720W
Max Power Excluding PoE: 12W
Reliability Grounding Methods: Three-Prong Plug

Environment:
- Operating Temperature: -10~50 ℃ (14~122 ℉)
- Storage Temperature: -40~70 ℃ (-40~158 ℉)
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 5%~95% non-condensing
Switching 802.3 Protocols:
- 802.3i 10BASE-T
- 802.3u 100BASE-TX
- 802.3ab 1000BASE-T
- 802.3z 1000BASE-X
- 802.3x Flow Control
- 802.3af PoE
- 802.3at PoE

802.1 Protocols:
- 802.1d: STP
- 802.1s: MSTP
- 802.1p: LAN Layer 2 QoS/CoS
- 802.1q: VLAN Bridge Operation
- 802.1w: RSTP
- 802.1ab: LLDP/LLDP-MED
- 802.1x User Authentication

Port Management:
- PoE Priority
- PoE Watchdog On/Off
- PoE Wattage/Voltage/Current Status
- PoE Time Schedule
- Port On/Off
- Port Negotiation Speed
- Port Trunk (Static Aggregation)
- 802.3ad LACP (Active Aggregation)
- Port Mirror
- Data Rate Limit
- Jumbo Frame Settings
- Storm Control
- Traffic Monitor
- MAC Address Management
-EEE (802.3az)

L2 Features:
- IGMP Snooping
- Loop Prevention
- DHCP Snooping
- STP/RSTP
- LLDP Config and Neighbors
- MTU VLAN
- Port-Based VLAN
- 802.1Q VLAN
- Voice VLAN
- Protocol VLAN
- Surveillance VLAN
- DSCP QoS
- 802.1p QoS
- Port-Based QoS
- GVRP
- L3 Features
- Static Routing
- ARP Proxy
- Dynamic ARP
- Interface Configuration
- IMPV Binding
- IP Source Guard
- UDLD
- ACL (Layer 2 - Layer 4)
- AAA
- RADIUS
- TACACS+
- Management VLAN
Mechanical Dimension:
440×305×44 mm
17.32×12.01×1.73 inches

Product Weight: 4910 g (173.2 oz.)
Casing Material: Metal

Installation:
- Desktop
- Rackmount via Brackets
System Control Methods:
- Config Web Page
- SNMP V1/V2/V3
- Telnet
- SSH
- RMON

Firmware Upgrade: Local Upgrade
Reliability: Backup and Restore
Warranty 02-Year Brand Warranty
Description:

CUDY GS2048PS4-48 Port Gigabit PoE++ L2 Managed Switch

CUDY GS2048PS4-48 Port Gigabit PoE++ L2 Managed Switch is made for large network installations that need high-speed, stable connections, and easy management. The switch has 48 Gigabit Ethernet ports, with 44 being 802.3at/af PoE and 4 being 802.3bt for high-power devices. There are also 4 SFP+ ports for 10G fiber uplinks, which provide faster speeds for the network and data transfer between switches or servers. With a 720W power supply, the switch can supply enough power to all PoE devices like IP cameras, wireless access points, and VoIP phones. The Layer 2 management features like VLAN, QoS, port mirroring, link aggregation, and more give users the ability to build a secure and smooth network.

The silent cooling mechanism is fanless, making the switch quiet even under heavy use. This makes it a great choice for offices, schools, and businesses where noise level is a concern. The unit supports desktop and rack-mountable installations, offering versatility based on your space and needs. Cudy's 48-Port PoE L2 Managed Switch is easy to use and delivers strong network performance. It is perfect for those customers who need high power, high speeds, and simple control in one reliable device.

Buy CUDY GS2048PS4-48 Port Gigabit PoE++ L2 Managed Switch in Bangladesh

You can buy your desired CUDY GS2048PS4-48 Port Gigabit PoE++ L2 Managed Switch at Global Brand PLC. We are the authorized distributor of CUDY in Bangladesh. You buy online and enjoy free home delivery. You can also visit any of our branches near you.
