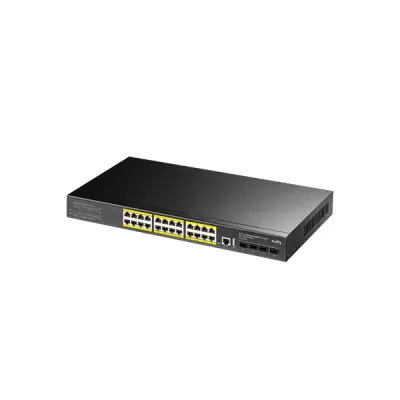

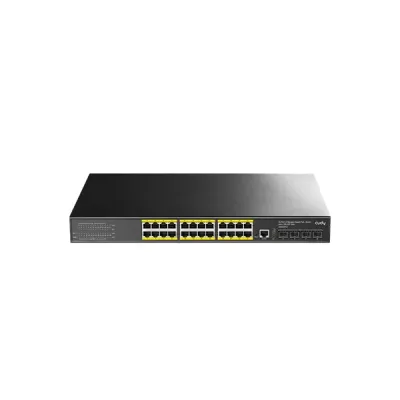

CUDY GS5024PS4 - 24 Port Gigabit PoE+ L3 Managed Switch
CUDY GS5024PS4 - 24 Port Gigabit PoE+ L3 Managed Switch
CUDY GS5024PS4 - 24 Port Gigabit PoE+ L3 Managed Switch

CUDY GS5024PS4 - 24 Port Gigabit PoE+ L3 Managed Switch

Key Features of GS5024PS4:
24× GbE with 802.3at/af PoE
Silent Cooling System
400W Power Supply
L3 Managing Features
Desktop, Rack-Mount
CUDY GS5024PS4 - 24 Port Gigabit PoE+ L3 Managed Switch
Based on 0 reviews. - Write a review
৳62,000.00
Add to Cart
Buy Now
Specification Description Reviews
Specification:
Key Features
attr - Key Feature 1 > 24× GbE with 802.3at/af PoE
attr -Key Feature 2 > Silent Cooling System
attr -Key Feature 3 > 400W Power Supply
attr -Key Feature 4 > L3 Managing Features
attr -Key Feature 5 > Desktop, Rack-Mount
Cudy Switch
Model GS5024PS4 1.0
Network Protocol 802.3 Protocols:
- 802.3i 10BASE-T
- 802.3u 100BASE-T
- 802.3ab 1000BASE-T
- 802.3z 1.25 Gbps over Fiber
- 802.3ae 10GBASE-SR/SW/LW/EW/LR/PR/ER
- 802.3aq 10GBASE-LRM
- 802.3x Flow Control
- 802.3af PoE
- 802.3at PoE
- 802.3bt PoE
Interfaces 10G SFP+ Slots: 4
Gigabit RJ45 PoE Ports: 24
Max Power on a Single PoE Port: 30W
PoE Port Notes: PoE ports support 802.3at/af standards.
Shielded RJ45 Port: True

Console Ports:
1× RJ45
1× USB

LED:
- Power
- System
- Link/ACT of Each Ethernet Port

Power Input: AC Inlet
Physical Buttons: Reset Button

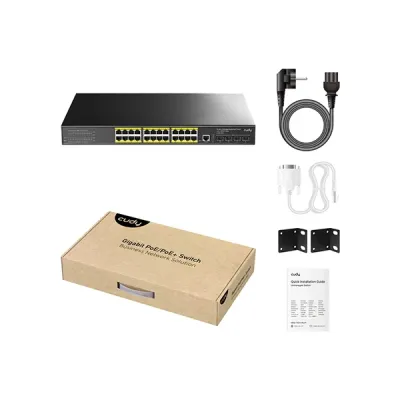

Package Content GS5024PS4
Power Cord
Mounting Kit
Installation Guide
Performance Copper Speed and Distance:
- Cat. 3 or higher cable: 100 meters at 10 Mbps
- Cat. 5 or higher cable: 100 meters at 100 Mbps
- Cat. 5e or higher cable: 100 meters at Gigabit

Optical Spec and Distance: Depends on the Installed Optical Module
MAC Address Table: 16384
VLANs: 4096
Max Switching Capacity: 128 Gbps
Max Forwarding Rate: 95.232 Mpps
Jumbo Frame: 12 KB
Packet Buffer: 12 Mbit
Power Power Methods: AC
AC: 100-240V~, 50/60Hz
Max Power Consumption: 400W
Max Power Excluding PoE: 20W
Reliability Grounding Methods: Three-Prong Plug

Environment:
- Operating Temperature: -10~50 ℃ (14~122 ℉)
- Storage Temperature: -40~70 ℃ (-40~158 ℉)
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 5%~95% non-condensing
Switching 802.3 Protocols:
- 802.3i 10BASE-T
- 802.3u 100BASE-TX
- 802.3ab 1000BASE-T
- 802.3z 1000BASE-X
- 802.3ae 10GBASE-SR/SW/LW/EW/LR/PR/ER
- 802.3aq 10GBASE-LRM
- 802.3x Flow Control
- 802.3af PoE
- 802.3at PoE
- 802.3bt PoE

802.1 Protocols:
- 802.1d: STP
- 802.1s: MSTP
- 802.1p: LAN Layer 2 QoS/CoS
- 802.1q: VLAN Bridge Operation
- 802.1w: RSTP
- 802.1ab: LLDP/LLDP-MED
- 802.1x User Authentication

Port Management:
- PoE Priority
- PoE Watchdog On/Off
- PoE Wattage/Voltage/Current Status
- PoE Time Schedule
- Port On/Off
- Port Negotiation Speed
- Port Trunk (Static Aggregation)
- 802.3ad LACP (Active Aggregation)
- Port Mirror
- Data Rate Limit
- Jumbo Frame Settings
- Storm Control
- Traffic Monitor
- MAC Address Management
- EEE (802.3az)

L2 Features:
- IGMP Snooping
- Loop Prevention
- DHCP Snooping
- STP/RSTP
- LLDP Config and Neighbors
- MTU VLAN
- Port-Based VLAN
- 802.1Q VLAN
- Voice VLAN
- Protocol VLAN
- Surveillance VLAN
- DSCP QoS
- 802.1p QoS
- Port-Based QoS
- GVRP

L3 Features:
- Static Routing
- ARP Proxy
- Dynamic ARP
- Interface Configuration
- IMPV Binding
- IP Source Guard
- UDLD
- ACL (Layer 2 - Layer 4)
- AAA
- RADIUS
- TACACS+
- Management VLAN
Mechanical Dimension:
440×205×44 mm
17.32×8.07×1.73 inches

Product Weight: 3900 g (137.57 oz.)
Casing Material: Metal

Installation:
- Desktop
- Rackmount via Brackets
System Control Methods:
- Config Web Page
- SNMP V1/V2/V3
- Telnet
- SSH
- RMON

Firmware Upgrade: Local Upgrade
Reliability: Backup and Restore
Warranty 02-Year Brand Warranty
Description:

CUDY GS5024PS4 - 24 Port Gigabit PoE+ L3 Managed Switch

CUDY GS5024PS4 - 24 Port Gigabit PoE+ L3 Managed Switch is a top-of-the-range switch for those networks that demand robust power, high performance, and high-level control. It boasts 24 Gigabit Ethernet ports with 802.3at/af PoE support for power and data to provide to devices like IP cameras, wireless access points, and VoIP phones over a single cable. The switch also possesses 4 SFP+ ports with support for 10G connectivity for high-speed and dependable uplinks to other switches or servers. This transformation involves a 400W power supply, enough to power all PoE devices that are attached. The users can configure routing between VLANs, better manage traffic, and boost network performance and security through Layer 3 management features. These features are suitable for offices, schools, and companies with business networks that need advanced configurations.

The fanless solution employs a silent cooling mechanism to keep the switch running silently, which is perfect for situations where there is minimal noise required. The device can be installed for desktop and rack-mounting purposes, which provides ease of convenience in how and where it can be used. The Cudy 24-Port PoE L3 Managed Switch is the perfect choice for anyone looking for good power, fast data speed, and smart network control in one handy device.

Buy CUDY GS5024PS4 - 24 Port Gigabit PoE+ L3 Managed Switch in Bangladesh

You can buy your desiredCUDY GS5024PS4 - 24 Port Gigabit PoE+ L3 Managed Switch at Global Brand PLC. We are the authorized distributor of CUDY in Bangladesh. You buy online and enjoy free home delivery. You can also visit any of our branches near you.
