Cudy 16-GbE PoE L2 Managed Switch with 2-GbE and 2-SFP
Cudy 16-GbE PoE L2 Managed Switch with 2-GbE and 2-SFP
Cudy 16-GbE PoE L2 Managed Switch with 2-GbE and 2-SFP
Cudy 16-GbE PoE L2 Managed Switch with 2-GbE and 2-SFP

Cudy 16-GbE PoE L2 Managed Switch with 2-GbE and 2-SFP

Key Features of GS2018PS2:
16× GbE with 802.3at/af Mode A PoE
L2 Managing Features
200W Power Supply
Desktop, Rack-Mount
440×204×44 mm (17.32×8.03×1.73″)
Cudy 16-GbE PoE L2 Managed Switch with 2-GbE and 2-SFP
Based on 0 reviews. - Write a review
৳0.00
Add to Cart
Specification Description Reviews
Specification:
Key Features
attr - Key Feature 1 > 16× GbE with 802.3at/af Mode A PoE
attr -Key Feature 2 > L2 Managing Features
attr -Key Feature 3 > 200W Power Supply
attr -Key Feature 4 > Desktop, Rack-Mount
attr -Key Feature 5 > 440×204×44 mm (17.32×8.03×1.73″)
Cudy Switch
Model GS2018PS2 1.0
Network Protocol 802.3 Protocols:
802.3i 10BASE-T
802.3u 100BASE-T
802.3ab 1000BASE-T
802.3z 1.25 Gbps over Fiber
802.3x Flow Control
802.3af PoE
802.3at PoE
Interface Gigabit RJ45 PoE Ports: 16
Max Power on a Single PoE Port: 30W
PoE Port Notes: PoE ports support 802.3at/af standards.
Shielded RJ45 Port: True
Console Ports: 1× RJ45
LED:
- Power
- System
- Link/ACT of Each Ethernet Port

Power Input: AC Inlet
Physical Buttons: Reset Button
Mechanical Dimension:
440×204×44 mm
17.32×8.03×1.73 inches

Product Weight: 2730 g (96.3 oz.)
Casing Material: Metal

Installation:
- Desktop
- Rackmount via Brackets

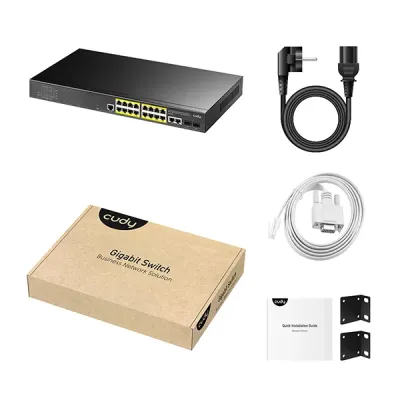

Package Content GS2018PS2
Power Cord
Mounting Kit
Installation Guide
Model Version GS2018PS2 1.0
Performance Copper Speed and Distance:
- Cat. 3 or higher cable: 100 meters at 10 Mbps
- Cat. 5 or higher cable: 100 meters at 100 Mbps
- Cat. 5e or higher cable: 100 meters at Gigabit
Optical Spec and Distance: Depends on the Installed Optical Module
MAC Address Table: 8192
VLANs: 4096
Max Switching Capacity: 40 Gbps
Max Forwarding Rate: 29.76 Mpps
Jumbo Frame: 9.6 KB
Packet Buffer: 4 Mbit
Power Power Methods: AC
AC: 100-240V~, 50/60Hz
Max Power Consumption: 200W
Max Power Excluding PoE: 12W
Reliability Grounding Methods: Three-Prong Plug

Environment:
Operating Temperature: -10~50 ℃ (14~122 ℉)
Storage Temperature: -40~70 ℃ (-40~158 ℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~95% non-condensing
Switching 802.3 Protocols:
802.3i 10BASE-T
802.3u 100BASE-TX
802.3ab 1000BASE-T
802.3z 1000BASE-X
802.3x Flow Control
802.3af PoE
802.3at PoE

802.1 Protocols:
802.1d: STP
802.1s: MSTP
802.1p: LAN Layer 2 QoS/CoS
802.1q: VLAN Bridge Operation
802.1w: RSTP
802.1ab: LLDP/LLDP-MED
802.1x User Authentication

Port Management:
PoE Priority
PoE Watchdog On/Off
PoE Wattage/Voltage/Current Status
PoE Time Schedule
Port On/Off
Port Negotiation Speed
Port Trunk (Static Aggregation)
802.3ad LACP (Active Aggregation)
Port Mirror
Data Rate Limit
Jumbo Frame Settings
Storm Control
Traffic Monitor
MAC Address Management
EEE (802.3az)

L2 Features:
IGMP Snooping
Loop Prevention
DHCP Snooping
STP/RSTP
LLDP Config and Neighbors
MTU VLAN
Port-Based VLAN
802.1Q VLAN
Voice VLAN
Protocol VLAN
Surveillance VLAN
DSCP QoS
802.1p QoS
Port-Based QoS
GVRP

L3 Features:
Static Routing
ARP Proxy
Dynamic ARP
Interface Configuration
IMPV Binding
IP Source Guard
UDLD
ACL (Layer 2 - Layer 4)
AAA
RADIUS
TACACS+
Management VLAN
System Control Methods:
Config Web Page
SNMP V1/V2/V3
Telnet
SSH
RMON

Firmware Upgrade: Local Upgrade
Reliability: Backup and Restore
Warranty 01-Year Brand Warranty
Description:

Cudy 16-GbE PoE L2 Managed Switch with 2-GbE and 2-SFP

Cudy 16-GbE PoE L2 Managed Switch with 2-GbE and 2-SFP is specifically designed for stable office, small business, and professional networking. The rack-mount switch provides a total of 18 Gigabit Ethernet ports, offering solid wired connectivity for multiple devices. It features 16× GbE ports with support for 802.3at/af Mode A Power over Ethernet (PoE), allowing you to easily power IP cameras, access points, and VoIP phones directly via the Ethernet cable without the need for extra adapters.

In addition to the PoE ports, the switch also includes 2× GbE uplink ports and 2× SFP slots for fiber connections. The added uplink and SFP functionality adds flexibility and performance in connecting to servers or other network switches. The integrated 200W power supply ensures stable and sufficient power to connected PoE devices. This Layer 2 managed switch contains important network features for better control and security. You can set VLANs, QoS, and other L2 configurations to assign importance to the network performance based on your requirements. The switch also contains a silent cooling system so that it can operate silently in an office setting without producing any fan sound.

The unit has desktop and rack-mount installation, meaning you can install it in different environments. Its 440×204×44 mm (17.32×8.03×1.73″) dimension accommodates standard rack size but are compact enough for a small room. With the provision of Gigabit speed, PoE support, SFP expansion, and smart management, the Cudy 16-GbE PoE L2 Managed Switch is a cost-effective and economic solution for network expansion. It suits businesses that need reliable wired connections with the benefit of PoE and versatile fiber uplinks.

Buy Cudy 16-GbE PoE L2 Managed Switch with 2-GbE and 2-SFP in Bangladesh

You can buy your desired Cudy 16-GbE PoE L2 Managed Switch with 2-GbE and 2-SFP at Global Brand PLC. We are the authorized distributor of Cudy in Bangladesh. You buy online and enjoy free home delivery. You can also visit any of our branches near you.
