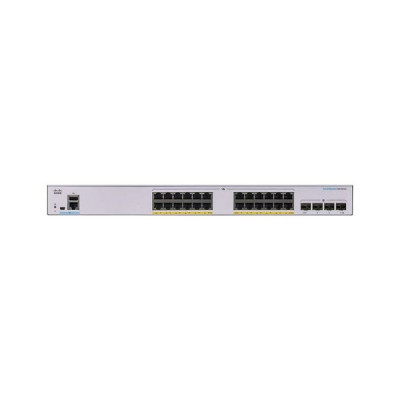

image of Cisco Business CBS350-24P-4X 24 Port Managed Switch with Spec and Price in BDT

Cisco Business CBS350-24P-4X 24 Port Managed Switch

Key Features of Cisco Business CBS350-24P-4X:
Capacity in Millions of Packets per Second (mpps) (64-byte packets): 95.23
Switching Capacity in Gigabits per Second (Gbps): 128.0
Total System Ports: 24 x Gigabit Ethernet + 4 x 10G
RJ-45 Ports: 24 x Gigabit Ethernet
Combo Ports (RJ45 + Small form-factor pluggable [SFP]): 4 x SFP+


CALL FOR DETAILS: 01958510839
Cisco Business CBS350-24P-4X 24 Port Managed Switch
Based on 0 reviews. - Write a review
৳0.00
Add to Cart
Specification Description Reviews
Specification:
Key Features
attr - Key Feature 1 > Capacity in Millions of Packets per Second (mpps) (64-byte packets): 95.23
attr -Key Feature 2 > Switching Capacity in Gigabits per Second (Gbps): 128.0
attr -Key Feature 3 > Total System Ports: 24 x Gigabit Ethernet + 4 x 10G
attr -Key Feature 4 > RJ-45 Ports: 24 x Gigabit Ethernet
attr -Key Feature 5 > Combo Ports (RJ45 + Small form-factor pluggable [SFP]): 4 x SFP+
Call Info >


CALL FOR DETAILS: 01958510839
Cisco Switch new
Specification Capacity in Millions of Packets per Second (mpps) (64-byte packets): 95.23
Switching Capacity in Gigabits per Second (Gbps): 128.0
Total System Ports: 24 x Gigabit Ethernet + 4 x 10G
RJ-45 Ports: 24 x Gigabit Ethernet
Combo Ports (RJ45 + Small form-factor pluggable [SFP]): 4 x SFP+
Packet Buffer: 1.5 MB
Unit dimensions (W x D x H): 445 x 299 x 44 mm (17.5 x 11.77 x 1.73 in)
Layer 3 IPv4 routing:
Wirespeed routing of IPv4 packets
Up to 990 static routes and up to 128 IP interfaces
IPv6 routing: Wirespeed routing of IPv6 packets
Layer 3 Interface: Configuration of Layer 3 interface on physical port, Link Aggregation (LAG), VLAN interface, or loopback interface
Classless Interdomain Routing (CIDR): Support for classless interdomain routing
RIP v2: Support for Routing Information Protocol version 2 for dynamic routing
Policy-Based Routing (PBR): Flexible routing control to direct packets to different next hop based on IPv4 or IPv6 Access Control List (ACL)
DHCP Server: Switch functions as an IPv4 DHCP server serving IP addresses for multiple DHCP pools/scopes
Support for DHCP options: DHCP relay at Layer 3: Relay of DHCP traffic across IP domains
User Datagram Protocol (UDP) relay: Relay of broadcast information across Layer 3 domains for application discovery or relaying of Bootstrap Protocol (BOOTP)/DHCP packets
Quality of Service Priority levels: 8 hardware queues
Scheduling: Strict priority and Weighted Round-Robin (WRR)
Rate limiting: Ingress policer; egress shaping and rate control; per VLAN, per port, and flow based; 2R3C policing
Congestion avoidance: A TCP congestion avoidance algorithm is required to minimize and prevent global TCP loss synchronization
iSCSI traffic optimization: A mechanism for giving priority to iSCSI traffic over other types of traffic
Green (power efficiency) Energy Detect: Automatically turns power off on RJ-45 port when detecting link down. Active mode is resumed without loss of any packets when the switch detects the link up
Cable length detection: Adjusts the signal strength based on the cable length. Reduces the power consumption for shorter cables.
EEE Compliant (802.3az): Supports IEEE 802.3az on all copper Gigabit Ethernet ports
Disable port LEDs: LEDs can be manually turned off to save on energy
Time-based port operation: Link up or down based on user-defined schedule (when the port is administratively up)
Time-based PoE: PoE power can be on or off based on user-defined schedule to save energy
Environmental Storage temperature: -13° to 158°F (-25° to 70°C)
Operating humidity: 10% to 90%, relative, noncondensing
Storage humidity: 10% to 90%, relative, noncondensing
Warranty: Limited lifetime with next business day advance replacement (where available)
General Jumbo frames: Frame sizes up to 9K bytes. The default MTU is 2K bytes
MAC table: 16K addresses
Hardware USB slot: USB Type-A slot on the front panel of the switch for easy file and image management
Buttons: Reset button
Cabling type: Unshielded Twisted Pair (UTP) Category 5e or better for 1000BASE-T
LEDs: System, Link/Act, PoE, Speed
Flash: 256 MB
CPU: 800 MHz ARM
DRAM: 512 MB
Package Contents Cisco Business 350 Series Managed Switch
Power Cord (Power adapter for select 8-port and 16-port SKUs)
Mounting Kit
Quick Start Guide
Minimum Requirements Web browser: Chrome, Firefox, Edge, Safari
Category 5e Ethernet network cable
TCP/IP, network adapter, and network operating system (such as Microsoft Windows, Linux, or Mac OS X) installed
Description:

Cisco Business CBS350-24P-4X 24 Port  Managed Switch


-High Reliability and Resiliency

In a growing business where availability 24 hours a day, 7 days a week is critical, you need to ensure business continuity and that employees can always access the data and resources they need. The Cisco Business 350 Series Switches support dual images, allowing you to perform software upgrades without having to take the network offline or worry about the network going down during the upgrade.


-IPv6 Support

As the IP address scheme evolves to accommodate a growing number of network devices, the Cisco Business 350 Series Switches can support the transition to the next generation of networking. These switches continue to support previous-generation IPv4, allowing you to evolve to the new IPv6 standard at your own pace and helping ensure that your current network will continue to support your business applications in the future.


-Advanced Layer 3 Traffic Management

The Cisco Business 350 Series Switches enable a more advanced set of traffic management capabilities to help growing businesses organize their networks more effectively and efficiently. For example, the switches provide dynamic Layer 3 routing, allowing you to segment your network into workgroups and communicate across VLANs without degrading application performance.


-Compact Design

The sleek and compact design for the Cisco Business 350 Series Switches provide additional deployment flexibility, including outside wiring closet installation such as retail stores, open plan offices, and classrooms without disturbing the environment.
