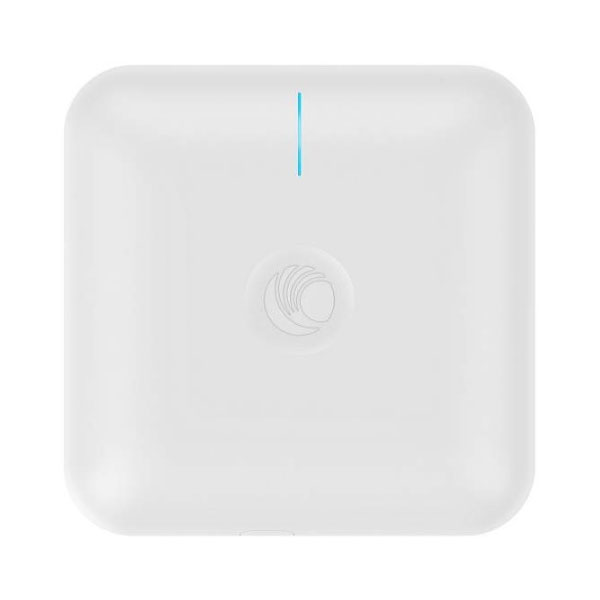

Cambium cnPilot e600 Wi-Fi Access Point
Out Of Stock
Cambium cnPilot e600 Wi-Fi Access Point

Cambium cnPilot e600 Wi-Fi Access Point

Key Features:

Key Features
attr - Key Feature 1 > Standards: IEEE 802.11a/b/g/n/ac Wave 2 | Other standards: 802.11 h/d/r/u/w/
attr -Key Feature 2 > MIMO Streams: 2x2 (2.4 GHz) , 4x4 (5 GHz) MIMO streams.
attr -Key Feature 3 > Range: 250 m (800 Ft)
attr -Key Feature 4 >


CALL FOR DETAILS: 01958510839

Cambium Access Point
US-FCC CH 1–11, 36–64, 100–144, 149–165
ISED Canada CH 1–11, 36–64, 100–116, 149–165
EU-ETSI CH 1–13, 36–64, 100–140
ROW CH 1–13, 36–64, 100–144, 149–165
2400-2483.5 MHz, 5150-5850 MHz
Radios 1 x 5 GHz radio (802.11 a/n/ac Wave 2), 4x4
1 x 2.4 GHz (802.11 b/g/n), 2x2
SU-MIMO / MU-MIMO: 4 streams
Wi-Fi 802.11 a/b/g/n/ac
SSID Security WPA2 (802.11i), WPA2 Enterprise (802.1x/EAP), WPA PSK, Open
Max PHY Rate 2.4 GHz: 400 Mbps 5 GHz: 1733 Mbps
Ethernet Two IEEE Gigabit Ethernet auto sensing
USB Ports 1 USB 2.0 port
Antenna Internal omni-directional
2.4 GHz: 5.28 dBi 5 GHz: 6.11 dBi
Max EIRP 2.4 GHz: 29.28 dBm 5 GHz: 34.11 dBm
(EIRP limited by country regulations)
WLAN 512 clients, 32 SSIDs (16 per radio)
WPA-TKIP, WPA2 AES, 802.1x, 802.11w PMF
Power 802.3af or 802.3at powered device
Typical load: 12 W, Max: 22 W
2.1 mm 12 VDC barrel connector
Mounting Desktop, Wall, cieling tile mount - included T-bar mount
14 mm x 24 mm x 38 mm (0.55 in x 0.94 in x 1.5 in)
Ceiling Tile mount included
Kensington lock slot
Dimensions 180 mm x 180 mm x 42mm (7.09 in x 7.09 in x 1.65 in)
Weight 400 g (0.88 lb)
LEDs Single Tri-color LED (amber, blue, green)
Ambient Operation Temperature 0ºC to 50ºC (32ºF to 122ºF)
Storage Temperature 40ºC to 70ºC (-40ºC to 158ºF)
Humidity 95% RH non-condensing
MTBF 1m hours
Certifications Wi-Fi Alliance 802.11 a/b/g/n/ac, Passpoint 2.0
FCC, ETSI, CE, EN 60601-1-2, IEC62368
UL2043
৳0

Specification

Key Features
attr - Key Feature 1 > Standards: IEEE 802.11a/b/g/n/ac Wave 2 | Other standards: 802.11 h/d/r/u/w/
attr -Key Feature 2 > MIMO Streams: 2x2 (2.4 GHz) , 4x4 (5 GHz) MIMO streams.
attr -Key Feature 3 > Range: 250 m (800 Ft)
attr -Key Feature 4 >


CALL FOR DETAILS: 01958510839

Cambium Access Point
US-FCC CH 1–11, 36–64, 100–144, 149–165
ISED Canada CH 1–11, 36–64, 100–116, 149–165
EU-ETSI CH 1–13, 36–64, 100–140
ROW CH 1–13, 36–64, 100–144, 149–165
2400-2483.5 MHz, 5150-5850 MHz
Radios 1 x 5 GHz radio (802.11 a/n/ac Wave 2), 4x4
1 x 2.4 GHz (802.11 b/g/n), 2x2
SU-MIMO / MU-MIMO: 4 streams
Wi-Fi 802.11 a/b/g/n/ac
SSID Security WPA2 (802.11i), WPA2 Enterprise (802.1x/EAP), WPA PSK, Open
Max PHY Rate 2.4 GHz: 400 Mbps 5 GHz: 1733 Mbps
Ethernet Two IEEE Gigabit Ethernet auto sensing
USB Ports 1 USB 2.0 port
Antenna Internal omni-directional
2.4 GHz: 5.28 dBi 5 GHz: 6.11 dBi
Max EIRP 2.4 GHz: 29.28 dBm 5 GHz: 34.11 dBm
(EIRP limited by country regulations)
WLAN 512 clients, 32 SSIDs (16 per radio)
WPA-TKIP, WPA2 AES, 802.1x, 802.11w PMF
Power 802.3af or 802.3at powered device
Typical load: 12 W, Max: 22 W
2.1 mm 12 VDC barrel connector
Mounting Desktop, Wall, cieling tile mount - included T-bar mount
14 mm x 24 mm x 38 mm (0.55 in x 0.94 in x 1.5 in)
Ceiling Tile mount included
Kensington lock slot
Dimensions 180 mm x 180 mm x 42mm (7.09 in x 7.09 in x 1.65 in)
Weight 400 g (0.88 lb)
LEDs Single Tri-color LED (amber, blue, green)
Ambient Operation Temperature 0ºC to 50ºC (32ºF to 122ºF)
Storage Temperature 40ºC to 70ºC (-40ºC to 158ºF)
Humidity 95% RH non-condensing
MTBF 1m hours
Certifications Wi-Fi Alliance 802.11 a/b/g/n/ac, Passpoint 2.0
FCC, ETSI, CE, EN 60601-1-2, IEC62368
UL2043
