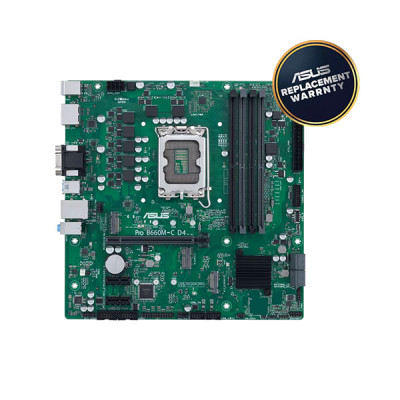

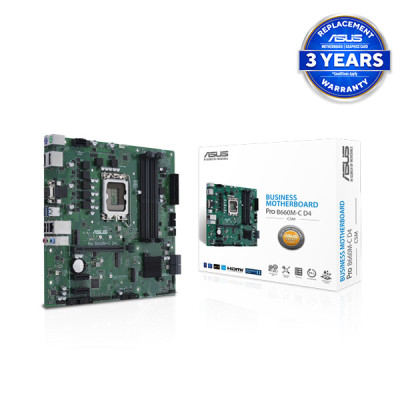

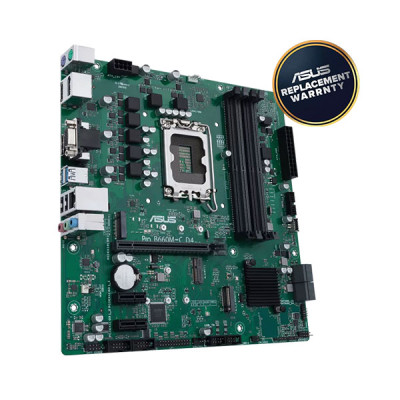

ASUS PRO B660M-C D4-CSM Micro-ATX B660 Business Motherboard
Key Features of ASUS PRO B660M-C D4-CSM (SA):Chipset: Intel B660 Chipset for 12th Gen Intel Core, Pentium Gold and Celeron® Processors |
Socket: LGA1700 |
m.2 slots: 2 x M.2 slots and 4 x SATA 6Gb/s ports |
USB: 7x Front ports 4x Rear ports |
Memory: 4 x DIMM, Max. 128GB, DDR4 |
Key Features | |
attr - Key Feature 1 > | Chipset: Intel B660 Chipset for 12th Gen Intel Core, Pentium Gold and Celeron® Processors |
attr -Key Feature 2 > | Socket: LGA1700 |
attr -Key Feature 3 > | m.2 slots: 2 x M.2 slots and 4 x SATA 6Gb/s ports |
attr -Key Feature 4 > | USB: 7x Front ports 4x Rear ports |
attr -Key Feature 5 > | Memory: 4 x DIMM, Max. 128GB, DDR4 |
Motherboard | |
Model | Pro B660M-C D4-CSM |
CPU | Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. |
Chipset | Intel® B660 Chipset |
Memory | 4 x DIMM, Max. 128GB, DDR4 5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) Optimem *Actual Memory data rate support depends on the CPU types and DRAM modules, for more information refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). |
Graphics | 2 x DisplayPort** 1 x D-Sub port 1 x HDMI® port*** * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Supports max. 4K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI 2.1. |
Expansion Slots | Intel® 12th Gen Processors 1 x PCIe 4.0/3.0 x16 slot Intel® B660 Chipset 2 x PCIe 3.0 x1 slots |
Storage | Supports 2 x M.2 slots and 4 x SATA 6Gb/s ports Intel® 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 - Intel® 12th Gen processors support PCIe 4.0 x4 mode Intel® B660 Chipset** M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4) 4 x SATA 6Gb/s ports * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10. ** Intel® Rapid Storage Technology supports Intel® Optane Memory H Series on PCH attached M.2 slots. |
Ethernet | 1 x Intel® 1Gb Ethernet ASUS LANGuard |
USB | Rear USB (Total 4 ports) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 1 connector (suppports USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback " * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
Back Panel I/O Ports | 2 x USB 3.2 Gen 1 ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 2 x DisplayPort 1 x HDMI® port 1 x D-Sub port 1 x Intel® 1Gb Ethernet port 3 x Audio jacks 1 x PS/2 keyboard (purple) port 1 x PS/2 mouse (green) por |
Internal I/O Connectors | Fan and cooling related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (suppports USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 1 x Clear CMOS header 1 x Chassis Intrude header 2 x COM Port headers 1 x Front Panel Audio header (AAFP) 1 x COM debug header 1 x LPT header 1 x Mono-out header(with Amp IC) 1 x M.2 slot (Key E) 1 x SMBUS header 1 x Speaker header 1 x 10-1 pin System Panel header |
Special Features | ASUS EZ DIY - Box Headers Bespoke Motherboard Design & Business Focused Features - Q-LED Core - ASUS Self Recovering BIOS - ASUS Event Log - ASUS Commercial BIOS kit - Anti-Moisture - 24/7 Reliability - Overcurrent Protection TPM IC onboard |
Software Features | ASUS Exclusive Software IT Management software supported - ASUS Control Center Express(ACCE) |
BIOS | 128Mb Flash ROM |
Manageability | WOL by PME, PXE |
Accessories | Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O Shield 1 x M.2 SSD screw package 1 x M.2 Key E screw package Installation Media 1 x Support DVD Documentation 1 x ACC Express Activation Key Card 1 x User guide |
Operating System | Windows® 11, Windows® 10 64-bit |
Form Factor | microATX 24.4cm x 24.4cm |
Warranty | 3 Years Replacement |
What is the ASUS PRO B660M-C D4-CSM Micro-ATX B660 Business Motherboard price in Bangladesh?
ASUS PRO B660M-C D4-CSM Micro-ATX B660 Business Motherboard price in Bangladesh is BDT ৳16,500.00 . At Global Brand, we are committed to providing our customers with the best shopping experience. With our affordable prices and top-notch customer service, you can be confident that you're making the right choice. So what are you waiting for? Buy online ASUS PRO B660M-C D4-CSM Micro-ATX B660 Business Motherboard for you and enjoy a top-class experience. .
Where to buy authentic ASUS PRO B660M-C D4-CSM Micro-ATX B660 Business Motherboard in Bangladesh?
You can buy 100% authentic ASUS PRO B660M-C D4-CSM Micro-ATX B660 Business Motherboard from our online shop or in-person at our branch. Shop with confidence and take advantage of free delivery when you buy from our online shop.
By visiting this page you can explore about Features, Specification, Description, Reviews & Latest price of ASUS PRO B660M-C D4-CSM Micro-ATX B660 Business Motherboard in BDT as well you can buy online ASUS PRO B660M-C D4-CSM (SA) with best price. The ASUS PRO B660M-C D4-CSM Micro-ATX B660 Business Motherboard is available in Bangladesh for the following price: ৳16,500.00 .Take advantage of our free delivery and don't miss out on the opportunity to buy ASUS PRO B660M-C D4-CSM (SA) online at the best price in Bangladesh!
ASUS PRO B660M-C D4-CSM Micro-ATX B660 Business Motherboard এর দাম কত টাকা?
ASUS PRO B660M-C D4-CSM Micro-ATX B660 Business Motherboard এর আজকের বর্তমান মূল্য মাত্র ৳16,500.00 টাকা ।
