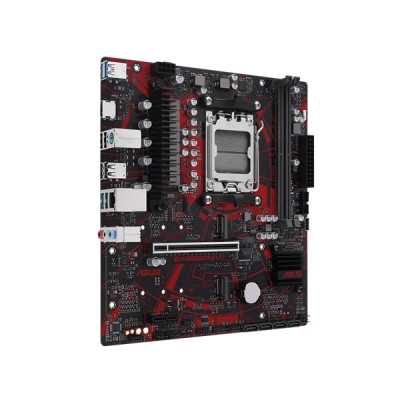

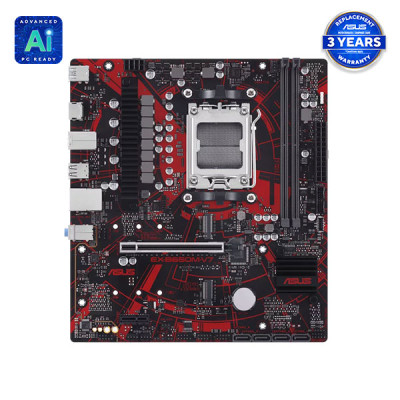

ASUS EX-B650M-V7 micro-ATX AMD Motherboard
Key Features of EX-B650M-V7:Chipset: AMD B650 Chipset for Ryzen 7000 Series |
Socket: AM5 |
M.2 slots: 2 x M.2 slots |
Memory: 2 x DIMM slots, Max. 96GB, DDR5 |
USB: 8x Rear, 4x Front |
Key Features | |
attr - Key Feature 1 > | Chipset: AMD B650 Chipset for Ryzen 7000 Series |
attr -Key Feature 2 > | Socket: AM5 |
attr -Key Feature 3 > | M.2 slots: 2 x M.2 slots |
attr -Key Feature 4 > | Memory: 2 x DIMM slots, Max. 96GB, DDR5 |
attr -Key Feature 5 > | USB: 8x Rear, 4x Front |
Motherboard | |
Model | EX-B650M-V7 |
CPU | AMD Socket AM5 for AMD Ryzen 7000 Series Desktop Processors* * Refer to www.asus.com for the CPU support list. |
Chipset | AMD B650 Chipset |
Memory | 2 x DIMM slots, Max. 96GB, DDR5 8000+(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800 ECC and Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports AMD Extended Profiles for Overclocking (EXPO) OptiMem II * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to the CPU/Memory Support list under the Support tab of the product information site or visit https://www.asus.com/support/. * Non-ECC, un-buffered DDR5 memory supports the On-Die ECC function. |
Graphics | 1 x HDMI port** * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications. ** Supports 4K@60Hz as specified in HDMI 2.1. |
Expansion Slots | AMD Ryzen 7000 Series Desktop Processors* 1 x PCIe 4.0 x16 slot (supports x16 mode) AMD B650 Chipset 1 x PCIe 4.0 x1 slot * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/). - To ensure compatibility with the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals. |
Storage | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* AMD Ryzen 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) AMD B650 Chipset 4 x SATA 6Gb/s ports * AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10. |
Ethernet | 1 x Realtek 2.5Gb Ethernet |
USB | Rear USB (Total 8 ports) 2 x USB 3.2 Gen 2 (10G) ports (2 x Type-A) 2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C) 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |

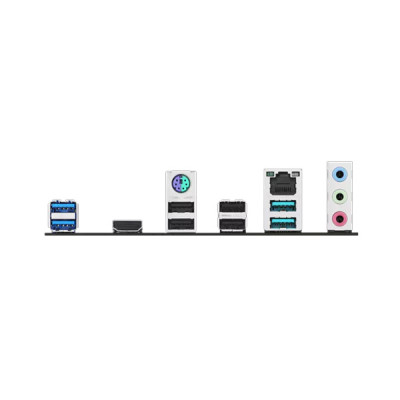

Back Panel I/O Ports | 2 x USB 3.2 Gen 2 (10G) ports (2 x Type-A) 2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x HDMI port 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port |
Internal I/O Connectors | Fan and Cooling-related 1 x 4-pin CPU Fan header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C) 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x 10-1 pin System Panel header |
Special Features | ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-LED Core - Q-Slot ASUS Thermal Solution - VRM heatsink design Non-stop Action - Lightning Boot Non-stop Challenger - ASUS iCafe labs certified Non-stop Durability - Luminous anti-moisture coating - USBGuard |
BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
Manageability | WOL by PME, PXE |
Accessories | Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O Shield 2 x M.2 Anchors Documentation 1 x User guide |
Operating System | Windows 11, Windows 10 64-bit |
Form Factor | micro-ATX Form Factor 9.6 inch x 8.7 inch ( 24.4 cm x 22.1 cm ) |
Warranty | 3 Years Replacement Warranty *(Terms and Conditions Applied) |
ASUS EX-B650M-V7 micro-ATX AMD Motherboard
The ASUS EX-B650M-V7 micro-ATX AMD Motherboard stands out as a robust and feature-packed option for those seeking reliability and performance in a compact form factor. Designed for AMD B650 processors, this motherboard is equipped with cutting-edge technologies that elevate your computing experience.
Featuring DDR5 support and PCIe 5.0 M.2 compatibility, the EX-B650M-V7 ensures lightning-fast data transfer and system responsiveness. Realtek 2.5Gb Ethernet provides high-speed connectivity, ideal for gamers and content creators who demand low-latency networking. The inclusion of HDMI, SATA 6 Gbps, rear USB 3.2 Gen 2 ports, and front USB 3.2 Gen 1 Type-C ensures versatile connectivity options, accommodating various peripherals and devices. The luminous anti-moisture coating and Lightning Boot feature enhance the motherboard's durability and speed up system boot times, respectively.
ASUS Expedition takes center stage, declaring the motherboard ready for non-stop battle. Exceptional stability and protection are paramount, with a 120% higher overvoltage protection ensuring longevity and reliability under demanding conditions. The VRM Heatsink and Thermal Pad contribute to efficient heat dissipation, maintaining optimal operating temperatures for sustained performance.
Backing up its quality, ASUS offers a 3-year replacement warranty, underlining their commitment to customer satisfaction and confidence in the EX-B650M-V7's durability. With this motherboard, you not only get a powerful and stable foundation for your system but also the peace of mind that comes with ASUS's renowned reliability and support. Upgrade your rig with the ASUS EX-B650M-V7 micro-ATX AMD Motherboard and experience a new level of performance and durability for your computing needs.
What is the ASUS EX-B650M-V7 micro-ATX AMD Motherboard price in Bangladesh?
ASUS EX-B650M-V7 micro-ATX AMD Motherboard price in Bangladesh is BDT ৳16,500.00 . At Global Brand, we are committed to providing our customers with the best shopping experience. With our affordable prices and top-notch customer service, you can be confident that you're making the right choice. So what are you waiting for? Buy online ASUS EX-B650M-V7 micro-ATX AMD Motherboard for you and enjoy a top-class experience. .
Where to buy authentic ASUS EX-B650M-V7 micro-ATX AMD Motherboard in Bangladesh?
You can buy 100% authentic ASUS EX-B650M-V7 micro-ATX AMD Motherboard from our online shop or in-person at our branch. Shop with confidence and take advantage of free delivery when you buy from our online shop.
By visiting this page you can explore about Features, Specification, Description, Reviews & Latest price of ASUS EX-B650M-V7 micro-ATX AMD Motherboard in BDT as well you can buy online EX-B650M-V7 with best price. The ASUS EX-B650M-V7 micro-ATX AMD Motherboard is available in Bangladesh for the following price: ৳16,500.00 .Take advantage of our free delivery and don't miss out on the opportunity to buy EX-B650M-V7 online at the best price in Bangladesh!
