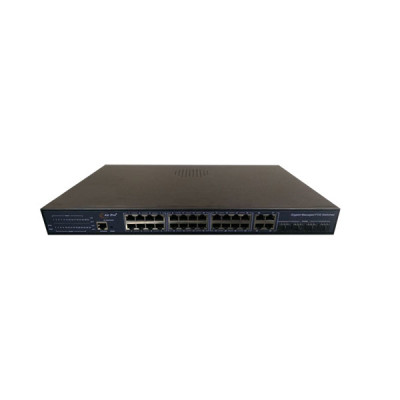

Air Pro AP-ESG3024P 28-port PoE L2 Managed Switch
Out Of Stock
Air Pro AP-ESG3024P 28-port PoE L2 Managed Switch

Air Pro AP-ESG3024P 28-port PoE L2 Managed Switch

Key Features:

Key Features
attr - Key Feature 1 > Can transfer data for network surveillance cameras.
attr -Key Feature 2 > 24x 1000Mbps auto-sensing POE ports, 4x 10/100/1000M Combo ports, 1 Console.
attr -Key Feature 3 > Support IEEE802.3/IEEE802.3i/IEEE802.3uIEEE802.3ab/IEEE802.3z, IEEE802.3af/at.
attr -Key Feature 4 > Compatible with IEEE802.3at (30W) and IEEE802.3af (15.4w).
attr -Key Feature 5 > Ethernet port supports 10/100/1000M adaptive and POE functions.
Air Pro Router
Network Protocols and Features IEEE 802.3
IEEE 802.3u
IEEE 802.3ab/ad/az/af/at
IIEEE 802.3x
IEEE 802.1q
IEEE 802.1p,QoS
IGMP Snooping
Air Pro Switch
Item 28 Port Gigabit Managed POE Switch
Interface 24*10/100/1000M POE ports + 4 Gigabit SFP/TP Combo ports,
1 Console port
Dimension(W*H*D) Product size (L×W×H): 445mm× 285mm× 45mm
Package size (L × W × H): 470mm × 350mm × 120mm
Product weight: 3.9kg
Package weight: 4.5 kg
Network Medium 10BASE-T: Cat3, 4, 5 UTP (≤ 100 m)
100BASE-TX: UTP (≤100 m) above Cat5
1000BASE-TX: UTP (≤100 m) above Cat5
Optical Multimode fiber: 1310nm, 2Km
Single mode fiber: 1310nm, 20/40 Km
1550nm, 60/80/100/120Km
Power Supply Input voltage: AC110-264V; Output DC52V7.69A Total power: 400W
Technical Specification Bandwidth: 56Gbps (non-blocking)
Packet Forwarding rate: 41.6Mpps
Processor: RTL8382M
Flash Capacity: 16M
Memory Capacity: 1024M(1G)
MAC: 8K
Working Environment Operating Temperature:-20° ~ 55 ° C;
Storage Temperature: -40 ° ~ 85 ° C;
Operating Humidity: 10% ~ 95%, non-condensing
Working height: up to 10,000 feet (3,000 meters)
Storage height: up to 10,000 feet (3,000 meters)
Juniper Switch
Ports Enable/Disable Port
Speed、Duplex、MTU Setting
Flow-control
Port Information Check
PoE PoE Standard: IEEE802.3at (30W) and IEEE802.3af (15.4w)
PoE compatibility: IEEE 802.3af/at adaptive
POE port output: DC48-55V
Power Pin Assignment: Power over spare pairs 1/2(+) and 3/6 (-)
Maipu Switch
MTBF 100,000 hours
Planet Switch
LED SYS, PWR, Link (lines 2, 4) / Act (lines 1, 3)
Router
Package content 1. Switch: 1 set
2. Instruction manual: 1
3. Certificate of conformity: 1
4. Warranty card: 1
5. AC power cord 1
6. A pair of hanging ears
Switch
Certification & Approvals CE, FCC, RoHS
