image of CUDY GS105D - 5-Port 10/100/1000Mbps Gigabit Desktop Switch with Spec and Price in BDT

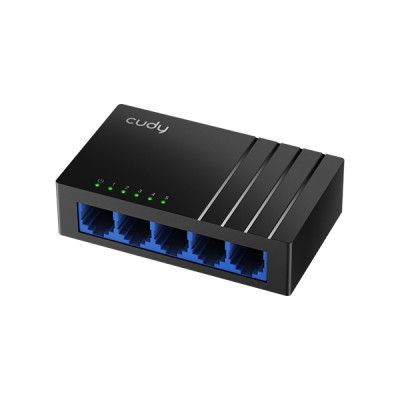

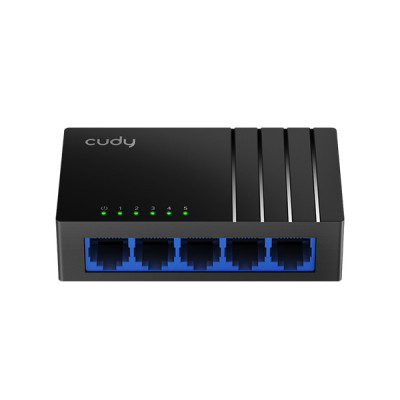

CUDY GS105D - 5-Port 10/100/1000Mbps Gigabit Desktop Switch

CUDY GS105D - 5-Port 10/100/1000Mbps Gigabit Desktop Switch

Key Features of GS105D:

5× 10/100/1000 Mbps Ports, Auto-Negotiation, Auto-MDI/MDIX
Max 140 m transmission distance with Cat 5e or higher standard cables
IEEE 802.3x flow control and 3 Mbit packet buffer prevent packet loss
Power saving strategy saves power consumption when ports are idle
Desktop and wall-mounting

৳1,190.00

Add to Cart

Specification Description Reviews

Specification:

Key Features
attr - Key Feature 1 >	5× 10/100/1000 Mbps Ports, Auto-Negotiation, Auto-MDI/MDIX
attr -Key Feature 2 >	Max 140 m transmission distance with Cat 5e or higher standard cables
attr -Key Feature 3 >	IEEE 802.3x flow control and 3 Mbit packet buffer prevent packet loss
attr -Key Feature 4 >	Power saving strategy saves power consumption when ports are idle
attr -Key Feature 5 >	Desktop and wall-mounting
Cudy Switch
Model	GS105D
Main Features	Standards: 802.3i 10 Mbps over Twisted Pair 802.3u 100 Mbps over Twisted Pair 802.3ab 1 Gbps over Twisted Pair 802.3x Flow Control Network Media: 10BASE-T: UTP Cat 3,4,5 cable (max 100 m) 100BASE-Tx: UTP Cat 5, 5e cable (max 100 m) 1000BASE-T: UTP Cat 5e, 6 or higher standard cable (max 140 m) Ethernet Ports: 5× 10/100/1000 Mbps Ethernet Ports MAC Address Table: 2K Packet Buffer: 3 Mbit Jumbo Frame: 15 KB Switching Capacity: 10 Gbps Max Forwarding Rate: 7.44 Mpps
Hardware Features	LED Indication: Power, Link/Act LEDs Transfer Method: Store-and-Forward Installation: Desktop, Wall-Mounting Casing: ABS Plastic
Power	Power Saving: Saves Power when Ports are Idle Power Output: DC 5 V / 0.55 A (Adapter) Max Power Consumption: 2 W Max Heat Dissipation: 6.82 BTU/h
Environment	Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉) Storage Temperature: -40 ℃ ~ 75 ℃ (-40 ℉ ~ 167 ℉) Operating Humidity: 0% ~ 100% non-condensing Storage Humidity: 5% ~ 90% non-condensing
Dimensions (LWH)	88×52.5×24 mm 3.46×2.07×0.94 inches

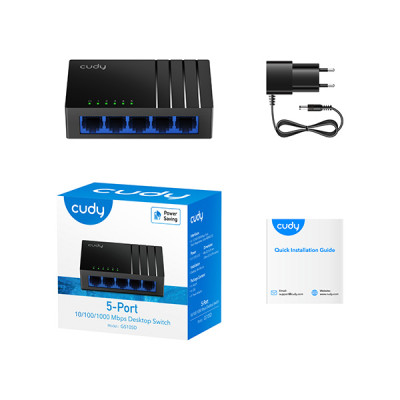

Package Content	1× Switch 1× Power Adapter 1× User Manual
Warranty	2-Year Brand Warranty

Description:

CUDY GS105D - 5-Port 10/100/1000Mbps Gigabit Desktop Switch

CUDY GS105D - 5-Port 10/100/1000Mbps Gigabit Desktop Switch is a practical and efficient networking solution that delivers seamless data transfer without compromise. With five 10/100/1000 Mbps Ethernet ports, this switch facilitates instant data transfer without interference, ensuring a smooth and uninterrupted network experience for devices like NAS, game consoles, desktops, IPTV, and routers.

This desktop switch supports auto-negotiation and auto-MDI/MDIX, ensuring hassle-free connectivity with various devices. The IEEE 802.3x flow control and a 3 Mbit packet buffer prevent packet loss, contributing to reliable and stable network performance. The switch adheres to standards such as 802.3i for 10 Mbps, 802.3u for 100 Mbps, 802.3ab for 1 Gbps, and 802.3x for flow control.

One standout feature of the GS105D is its ability to achieve a maximum transmission distance of 140 meters with Cat 5e or higher standard cables, providing 40% longer distance compared to standard switches. This feature simplifies wiring for larger premises, offering flexibility in network setup. The switch is equipped with power-saving strategies that reduce power consumption when Ethernet ports are idle, resulting in cost savings on electricity expenses for networking facilities. Its design allows for both desktop and wall-mounting, providing versatile placement options to suit different environments.

Technical specifications include a MAC address table of 2K, a packet buffer of 3 Mbit, jumbo frame support up to 15 KB, a switching capacity of 10 Gbps, and a max forwarding rate of 7.44 Mpps. These specifications contribute to the overall efficiency and performance of the switch. In summary, the CUDY GS105D - 5-Port 10/100/1000Mbps Gigabit Desktop Switch is a reliable and straightforward solution for expanding and enhancing your network. Its super-fast Gigabit capabilities, extended transmission distance, power-saving features, and versatile mounting options make it a practical choice for various networking scenarios, providing users with a dependable and cost-effective solution.
