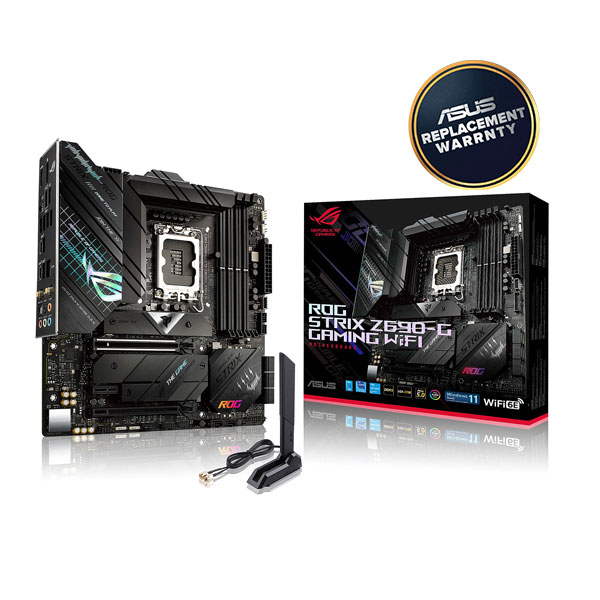

ASUS ROG STRIX Z690-G GAMING WIFI micro ATX Motherboard
Out Of Stock
ASUS ROG STRIX Z690-G GAMING WIFI micro ATX Motherboard

ASUS ROG STRIX Z690-G GAMING WIFI micro ATX Motherboard

Key Features:

Key Features
attr - Key Feature 1 > Chipset: Intel® Z690 Chipset for 12th Gen Intel® Core™, Pentium® Gold, and Celeron® Processors
attr -Key Feature 2 > Socket; LGA1700
attr -Key Feature 3 > m.2 slots: 3 x M.2 slots with PCIe 4.0 support
attr -Key Feature 4 > USB: 7x Front ports 10x Rear ports
attr -Key Feature 5 > Memory: 4 x DIMM, Max. 128GB, DDR5
Motherboard
CPU Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold, and Celeron® Processors
Chipset Intel® Z690 Chipset
Graphics 1 x DisplayPort 1 x HDMI® port
Expansion Slots Intel® 12th Gen Processors*

1 x PCIe 5.0 x16 slot (supports x16 mode)

Intel® Z690 Chipset**

1 x PCIe 4.0 x16 slot (supports x4 mode)

1 x PCIe 3.0 x1 slot
PCI 5.0/4.0/3.0
Internal I/O Ports Fan and Cooling related

1 x 4-pin CPU Fan header

1 x 4-pin CPU OPT Fan header

1 x 4-pin AIO Pump header

3 x 4-pin Chassis Fan headers

Power related

1 x 24-pin Main Power connector

1 x 8-pin +12V Power connector

1 x 4-pin +12V Power connector

Storage related

3 x M.2 slots (Key M)

6 x SATA 6Gb/s ports

USB

1 x USB 3.2 Gen 2×2 connector (supports USB Type-C®)

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports

Miscellaneous

3 x Addressable Gen 2 headers

1 x AURA RGB header

1 x CPU Over Voltage jumper

1 x Front Panel Audio header (AAFP)

1 x SPI TPM header (14-1pin)

1 x 20-5 pin System Panel header

1 x Thermal Sensor header

1 x Thunderbolt™ header
Memory Slots 4
Memory Type DDR5
USB Rear USB:
Total 10 ports
1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)

3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C®)

4 x USB 3.2 Gen 1 ports (4 x Type-A)

2 x USB 2.0 ports (2 x Type-A)

Front USB:
Total 7 ports
1 x USB 3.2 Gen 2×2 connector (supports USB Type-C®)

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports
Audio ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080

– Impedance sense for front and rear headphone outputs

– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

– High quality 120 dB SNR stereo playback output and 113 dB SNR recording input

– Supports up to 32-Bit/384 kHz playback

Audio Features

– SupremeFX Shielding Technology

– Savitech SV3H712 AMP

– Gold-plated audio jacks

– Rear optical S/PDIF out port

– Premium audio capacitors

– Audio cover
Maximum Memory 128GB
BIOS 256 Mb Flash ROM
Form Factor m-atx
Warranty 3 Years Replacement
৳39,000

Specification:

Key Features
attr - Key Feature 1 > Chipset: Intel® Z690 Chipset for 12th Gen Intel® Core™, Pentium® Gold, and Celeron® Processors
attr -Key Feature 2 > Socket; LGA1700
attr -Key Feature 3 > m.2 slots: 3 x M.2 slots with PCIe 4.0 support
attr -Key Feature 4 > USB: 7x Front ports 10x Rear ports
attr -Key Feature 5 > Memory: 4 x DIMM, Max. 128GB, DDR5
Motherboard
CPU Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold, and Celeron® Processors
Chipset Intel® Z690 Chipset
Graphics 1 x DisplayPort 1 x HDMI® port
Expansion Slots Intel® 12th Gen Processors*

1 x PCIe 5.0 x16 slot (supports x16 mode)

Intel® Z690 Chipset**

1 x PCIe 4.0 x16 slot (supports x4 mode)

1 x PCIe 3.0 x1 slot
PCI 5.0/4.0/3.0
Internal I/O Ports Fan and Cooling related

1 x 4-pin CPU Fan header

1 x 4-pin CPU OPT Fan header

1 x 4-pin AIO Pump header

3 x 4-pin Chassis Fan headers

Power related

1 x 24-pin Main Power connector

1 x 8-pin +12V Power connector

1 x 4-pin +12V Power connector

Storage related

3 x M.2 slots (Key M)

6 x SATA 6Gb/s ports

USB

1 x USB 3.2 Gen 2×2 connector (supports USB Type-C®)

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports

Miscellaneous

3 x Addressable Gen 2 headers

1 x AURA RGB header

1 x CPU Over Voltage jumper

1 x Front Panel Audio header (AAFP)

1 x SPI TPM header (14-1pin)

1 x 20-5 pin System Panel header

1 x Thermal Sensor header

1 x Thunderbolt™ header
Memory Slots 4
Memory Type DDR5
USB Rear USB:
Total 10 ports
1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)

3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C®)

4 x USB 3.2 Gen 1 ports (4 x Type-A)

2 x USB 2.0 ports (2 x Type-A)

Front USB:
Total 7 ports
1 x USB 3.2 Gen 2×2 connector (supports USB Type-C®)

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports
Audio ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080

– Impedance sense for front and rear headphone outputs

– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

– High quality 120 dB SNR stereo playback output and 113 dB SNR recording input

– Supports up to 32-Bit/384 kHz playback

Audio Features

– SupremeFX Shielding Technology

– Savitech SV3H712 AMP

– Gold-plated audio jacks

– Rear optical S/PDIF out port

– Premium audio capacitors

– Audio cover
Maximum Memory 128GB
BIOS 256 Mb Flash ROM
Form Factor m-atx
Warranty 3 Years Replacement
