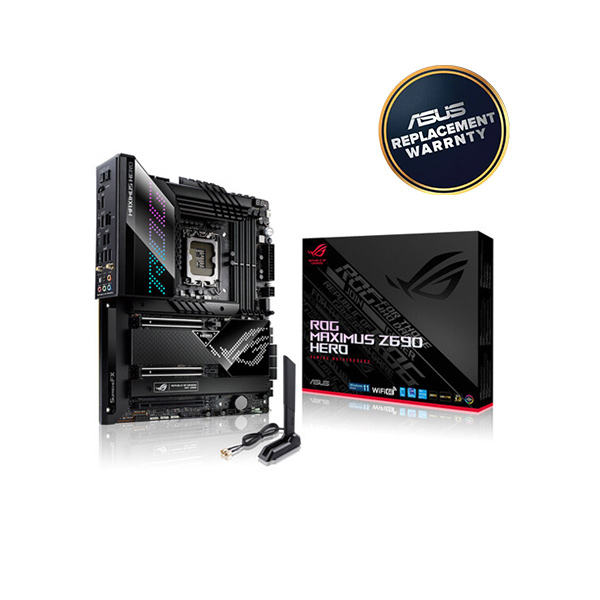

ASUS ROG MAXIMUS Z690 HERO ATX Motherboard
ASUS ROG MAXIMUS Z690 HERO ATX Motherboard
ASUS ROG MAXIMUS Z690 HERO ATX Motherboard
2-3 Days
ASUS ROG MAXIMUS Z690 HERO ATX Motherboard
ASUS ROG MAXIMUS Z690 HERO ATX Motherboard
ASUS ROG MAXIMUS Z690 HERO ATX Motherboard
ASUS ROG MAXIMUS Z690 HERO ATX Motherboard

ASUS ROG MAXIMUS Z690 HERO ATX Motherboard

Key Features:

Key Features
attr - Key Feature 1 > Chipset: Intel® Z690 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
attr -Key Feature 2 > Socket: LGA1700
attr -Key Feature 3 > m.2 slots: 5 x M.2 slots with PCIE 5.0/4.0 support
attr -Key Feature 4 > USB: 5x Front ports 11x Rear ports
attr -Key Feature 5 > Memory: 4 x DIMM, Max. 128GB, DDR5
Motherboard
CPU Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Chipset Intel® Z690 Chipset
Expansion Slots Intel® 12th Gen Processors*
2 x PCIe 5.0 x16 slots (support x16 or x8/x8 modes)**
Intel® Z690 Chipset***
1 x PCIe 4.0 x16 slot (supports x4, x4/x4 modes)
PCI 4.0
Internal I/O Ports 3 x M.2 slots (Key M)
6 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 2×2 connector (supports USB Type-C®)
2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x AURA RGB header
1 x FlexKey button
1 x Front Panel Audio header (AAFP)
1 x SPI TPM header (14-1pin)
1 x Start button
1 x ReTry button
1 x 10-1 pin System Panel header
1 x Thermal Sensor header
Memory Slots 4
Memory Type DDR4
USB Rear USB:
Total 11 ports
2 x Thunderbolt™ 4 ports (2 x USB Type-C®)
7 x USB 3.2 Gen 2 ports (6 x Type-A + 1 x USB Type-C®)
2 x USB 2.0 ports (2 x Type-A)
Front USB:
Total 9 ports
1 x USB 3.2 Gen 2×2 connector (supports USB Type-C®)
2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Audio ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082
– Impedance sense for front and rear headphone outputs
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
– Supports up to 32-Bit/384 kHz playback
Maximum Memory 128GB
BIOS 256 Mb Flash ROM, UEFI AMI BIOS
Form Factor ATX
Warranty 3 years Replacement Warranty
৳67,000

Specification:

Key Features
attr - Key Feature 1 > Chipset: Intel® Z690 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
attr -Key Feature 2 > Socket: LGA1700
attr -Key Feature 3 > m.2 slots: 5 x M.2 slots with PCIE 5.0/4.0 support
attr -Key Feature 4 > USB: 5x Front ports 11x Rear ports
attr -Key Feature 5 > Memory: 4 x DIMM, Max. 128GB, DDR5
Motherboard
CPU Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Chipset Intel® Z690 Chipset
Expansion Slots Intel® 12th Gen Processors*
2 x PCIe 5.0 x16 slots (support x16 or x8/x8 modes)**
Intel® Z690 Chipset***
1 x PCIe 4.0 x16 slot (supports x4, x4/x4 modes)
PCI 4.0
Internal I/O Ports 3 x M.2 slots (Key M)
6 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 2×2 connector (supports USB Type-C®)
2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x AURA RGB header
1 x FlexKey button
1 x Front Panel Audio header (AAFP)
1 x SPI TPM header (14-1pin)
1 x Start button
1 x ReTry button
1 x 10-1 pin System Panel header
1 x Thermal Sensor header
Memory Slots 4
Memory Type DDR4
USB Rear USB:
Total 11 ports
2 x Thunderbolt™ 4 ports (2 x USB Type-C®)
7 x USB 3.2 Gen 2 ports (6 x Type-A + 1 x USB Type-C®)
2 x USB 2.0 ports (2 x Type-A)
Front USB:
Total 9 ports
1 x USB 3.2 Gen 2×2 connector (supports USB Type-C®)
2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Audio ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082
– Impedance sense for front and rear headphone outputs
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
– Supports up to 32-Bit/384 kHz playback
Maximum Memory 128GB
BIOS 256 Mb Flash ROM, UEFI AMI BIOS
Form Factor ATX
Warranty 3 years Replacement Warranty
